Focus On Heart, Lasting On Action
| Place of Origin: | China |
|---|---|
| Brand Name: | BJTUFF |
| Certification: | ISO9001 |
| Model Number: | 350-3000mm or as required |
| Minimum Order Quantity: | 1 Piece |
| Price: | Negotiated |
| Packaging Details: | Wood case or iron support outside, plastic film inside. |
| Delivery Time: | 3-5 days after payment |
| Payment Terms: | L/C, D/A, D/P, T/T |
| Supply Ability: | 200 Unit/Units per Month |
| Name: | New Type Open Type Drill Bucket | Application: | Hardpan Clay And Highly Weathered Rock |
|---|---|---|---|
| Material: | Q345/460+NM400 | Type: | Foundation Drilling Machine Spare Parts |
| Condition: | 100%new | Color: | Requirement |
| Teeth Type: | Flat Teeth,Customized | Drilling Diameter Range: | 400-2500mm |
| High Light: | Centrifugal Open Type Drilling Bucket,BJTUFF Open Type Drilling Bucket,2000mm Centrifugal Drilling Bucket |
||

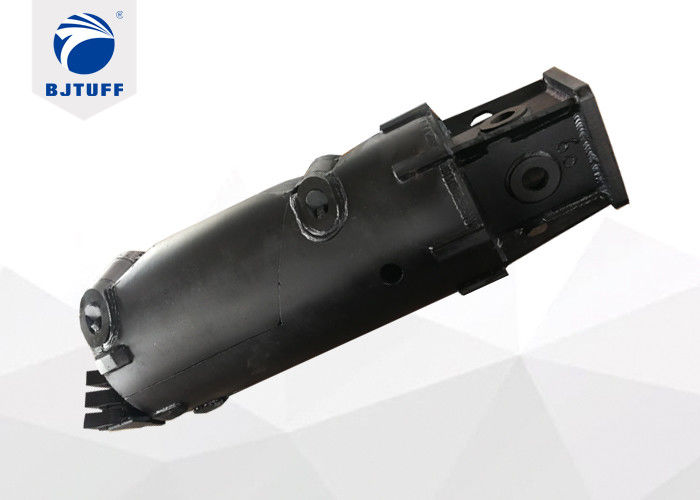

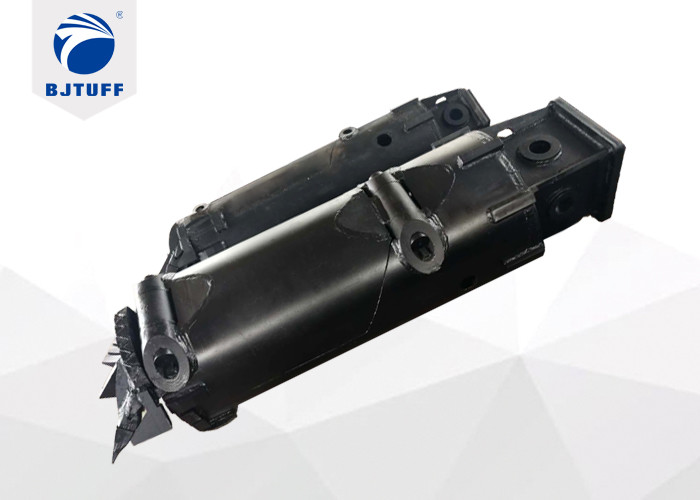

New Type Drilling Equipment Centrifugal Open Type Customized Drilling Bucket
Application:
BJTUFF new type drilling bucket combines the rock drilling bucket with open type bucket,which solves the problem to dump spoil with difficulty of small diameter drilling bucket or some viscous formation and increase the life cycle of bucket without the coupling life in common open type bucket.
Feature
1. Open shell design, easy to dump spoil so increases the drilling efficiency；
2. Manual mechanic bottom open system for small diameter bucket within 500mm DIA. if Kelly box is 200*200mm.
3. Staggered arrangement of rock drilling bits or flat teeth;
4. Cast pilot with rock drilling bits or fishtail bits .
Model List:
| Cutting Dia. | Shell HIT. | Shell THK. | Fixed Bottom THK. | Rotate Bottom THK. |
| φ400 | 1200 | 20 | 40 | 40 |
| φ500 | 1200 | 20 | 40 | 40 |
| φ600 | 1200 | 20 | 40 | 40 |
| φ800 | 1200 | 20 | 40 | 50 |
| φ1000 | 1200 | 20 | 40 | 50 |
| φ1200 | 1200 | 20 | 40 | 50 |
| φ1500 | 1200 | 20 | 40 | 50 |
| φ1800 | 1000 | 20 | 50 | 50 |
| φ2000 | 800 | 20 | 50 | 50 |
| Remark: measurements are in millimeters, | ||||
Customizable Items:
Key Component Reinforce Custom :extend life cycle or adjust different working conditions;
Cutter Custom: single cutter and double cutter design as demand;
Bottom Custom : single bottom and double bottom design as demand;
Kelly Box Custom : based on the kelly bar;
Bottom Open Mechanic : half-automatic if the space is avaible or manul mechanic bottom open system.
Package:
Packaging details for BJTUFF customized open type drill bucket with double bottom:
1. 100% inspection before shipment.
2. Wrapped with plastic film.
3. Fixed with iron support or wooden box.
4. As clients' requirements.
Product advantage:
1- Top quality raw materials from leading raw-steel factory.
2- Our drilling tools can be customized depending on kinds of rigs and site conditions.
3- We require high quality of welding, therefore we employ at least 8 years experienced welders.
4- We provide one-stop solution for the world’s foundation construction users.
FAQ:
1. Are you factory or not?
Yes, we manufactured drilling products for 7 years in Hebei,China. Warmly welcome to visit our factory and office.
2. What does your company make?
The main products of our company include drilling tools,drilling teeth,pile breaker, kelly bar and casing pipe.
4. What is the quality of your drilling products?
① we promise good raw steel .Our welding stick is flux-cored wire that applied to ship engineering.
② We strictly control product quality on each step from material choosing to every workmanship.
③ Customers could contact our sales managers if there are any question during installation or construction anytime, and solutions will be given within 12 hours.
