Place of Origin: | China |
---|---|
Brand Name: | BJTUFF |
Certification: | ISO9001 |
Model Number: | 500-3000mm or as required |
Minimum Order Quantity: | 1 Piece |
Price: | Negotiated |
Packaging Details: | Wood case outside, plastic cases inside. |
Delivery Time: | 7 days after payment |
Payment Terms: | L/C, D/A, D/P, T/T |
Supply Ability: | 200 Unit/Units per Month |
Name: | Casing Shoe | Drilling Diameter: | 450-3000mm |
---|---|---|---|
Color: | Black As Usual | Usage: | Rotary Drilling Rig |
Teeth Type: | WS 39 Teeth | Processing Type: | Heat Treatment |
High Light: | Heat Treatment Casing Driver Shoes,3000mm Casing Driver Shoes,500mm Casing Driver Shoes |

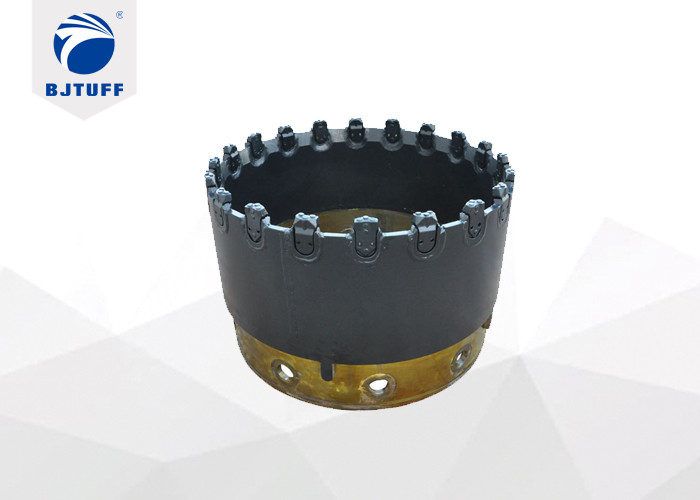

Double Wall Casing Attachment Heat Treatment Casing Driver Shoes
Application:
1. Casing is used to minimize loosening of the soil structure around the pile during the drilling process.The use of casing is compulsory ,if even with a supporting suspension,the ground to be drilled is unstable ,and collaps of the bore hole wall must be expected.
2. Casing tubes have the function of cutting the soil structure with a casing shoe,to support the bore hole temporarily,and by preceding the excavation,to forestall loosening of the ground structure.
Feature
1. The technical parameters and processes of the products are in line with the Bauer standard;
2. Deformation and accuracy is strictly controlled through heat treatment,each casing is interchangeable;
3. BJTUFF casing joints are manufactured from tempered steel.The casing joints with high machining accuracy guarantee a fast replacement and bolting of the casings as well as the best force transmission effect.
4. The general length is about 700mm,and usually the customers can customized the casing shoes by longer shell due to reducing the cost.
Model List:
Double wall casing model list:
Casing Dia. | Inner Shell THK. | Outer Shell THK. | Casing THK. | Bolts No. |
680-600 | 8 | 12 | 40 | 8 |
880-800 | 8 | 12 | 40 | 10 |
1080-1000 | 10 | 16 | 40 | 10 |
1280-1200 | 10 | 16 | 40 | 12 |
1600-1500 | 12 | 20 | 50 | 16 |
1800-1700 | 12 | 20 | 50 | 16 |
2000-1880 | 16 | 25 | 60 | 18 |
2500-2380 | 16 | 25 | 60 | 18 |
Remark : All measurements are in millimeters, weight in kilograms. |
Single wall casing model list:
Casing Dia. | Shell THK. | Casing THK. | Bolts No. |
680-600 | 20 | 40 | 8 |
880-800 | 20 | 40 | 10 |
1080-1000 | 20 | 40 | 10 |
1280-1200 | 20 | 40 | 12 |
1600-1500 | 25 | 50 | 16 |
1800-1700 | 25 | 50 | 16 |
2000-1880 | 25 | 60 | 18 |
2500-2380 | 25 | 60 | 18 |
Remark : All measurements are in millimeters. |
Casing shoes model list:
Casing Dia. | Shell THK. | Casing THK. | Bolts No. |
680-600 | 40 | 40 | 8 |
880-800 | 40 | 40 | 10 |
1080-1000 | 40 | 40 | 10 |
1280-1200 | 40 | 40 | 12 |
1600-1500 | 50 | 50 | 16 |
1800-1700 | 50 | 50 | 16 |
2000-1880 | 60 | 60 | 18 |
2500-2380 | 60 | 60 | 18 |
Remark : All measurements are in millimeters. |
Tips of casing and tubing for piling project
1. The pipe casing should avoid to the collision, especially of casing joints knock against when install the casing bolts, it must be clean, otherwise it will cause the difficult installation.
2. The drilling bucket needs to be chiseled in advance when pile casing drives the increased torque to difficult.
3. The drilling bucket needs to be checked position and verticality of hole, to avoid opening the door at the hole bottom when lift the drilling open and closed again against to casing shoes.
4. You must be tested all movements of pulling machine normally before concreting. Pull up pipe casing immediately to prevent steel trunk floating after the end of grouting.
Product advantage:
1- We purchase top quality raw materials from leading raw-steel factory.
2- Our drilling tools can be customized depending on kinds of rigs and site conditions.
3- We require high quality of welding, therefore we employ at least 8 years experienced welders.
4- Understand what customers need and provide what customers want, We provide one-stop solution for the world’s foundation construction users.
FAQ:
Q1. What does your company produce?
The main products of our company include drilling tools,drilling teeth,casing series,kelly bar accessories and ect.
Q2. How do you control the quality of your products?
First,we use top raw steel from large factories.
Second, We strictly control the process,so If the quality of the product itself has the problem of open welding, please contact us anytime;
Third, Customers could contact our sales managers on line/by email/by phone if there are any question during installation or construction, solutions will be given within 12 hours.
