| Place of Origin: | China |
|---|---|
| Brand Name: | TUFF |
| Certification: | ISO9001 |
| Model Number: | 500-3000mm |
| Minimum Order Quantity: | 1 Piece |
| Price: | $1,000.00 - $10,000.00/Unit |
| Packaging Details: | Wood case outside, plastic cases inside. |
| Delivery Time: | 3-5 days after payment |
| Payment Terms: | L/C, D/A, D/P, T/T |
| Supply Ability: | 200 Unit/Units per Month |
| Material: | 16mn-Q355B | Kelly Box: | Sany--150, Bauer--200, Bauer--250 |
|---|---|---|---|
| Bottom Type: | Double-bottom Double Open | Teeth Type: | Clay Drilling Tooth |
Feature:
Option half-automatic or manul mechanic bottom open system. Built-in ventilation pipe；

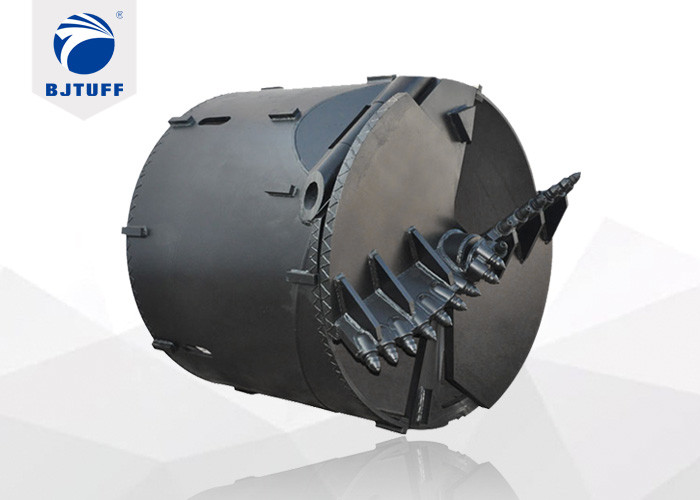

Cast pilot with rock drilling bits , arc guide plate teeth arrangement, double unlocking system;
Staggered arrangement of rock drilling bits;
Applicable layers: gravel , pebble , highly or medium weathered rock；
|
Drilling Tool Model
|
|||||||
| Model | Size | Height |
Bucket Thickness |
Upper Bottom Thickness |
Lower Bottom Thickness |
No of teeth |
Weight |
|
Drilling Bucket with Clay Drilling Tooth |
φ600 | 1200 | 16 | 40 | 40 | 4 | 680 |
| φ700 | 1200 | 16 | 40 | 40 | 4 | 800 | |
| φ800 | 1200 | 16 | 40 | 50 | 4 | 900 | |
| φ900 | 1200 | 16 | 40 | 50 | 5 | 1050 | |
| φ1000 | 1200 | 16 | 40 | 50 | 5 | 1100 | |
| φ1100 | 1200 | 16 | 40 | 50 | 7 | 1280 | |
| φ1200 | 1200 | 16 | 40 | 50 | 7 | 1350 | |
| φ1250 | 1200 | 16 | 40 | 50 | 8 | 1400 | |
| φ1300 | 1200 | 16 | 40 | 50 | 8 | 1500 | |
| φ1400 | 1200 | 16 | 40 | 50 | 9 | 1650 | |
| φ1500 | 1200 | 16 | 40 | 50 | 9 | 2050 | |
| φ1600 | 1200 | 16 | 40 | 50 | 9 | 2250 | |
| φ1700 | 1000 | 20 | 40 | 50 | 11 | 2450 | |
| φ1800 | 1000 | 20 | 50 | 50 | 12 | 2700 | |
| φ1900 | 1000 | 20 | 50 | 50 | 13 | 2900 | |
| φ2000 | 800 | 20 | 50 | 50 | 14 | 3200 | |
| φ2200 | 800 | 20 | 50 | 50 | 16 | 3800 | |
| φ2500 | 800 | 20 | 50 | 50 | 19 | 4800 | |
| φ2800 | 800 | 20 | 50 | 50 | 22 | 6000 | |
| φ3000 | 800 | 20 | 50 | 50 | 24 | 7000 | |
| Kelly Box | Sany--150 | Bauer--200 | Bauer--250 | ||||
| Bottom Type | Double bottom | double cut Single bottom and double cut | |||||
|
Remark1: Size refers to diameter of bore hole, all measurements inmillimeters (mm); weight in kilograms(kg); Remark2: Customers can consultative our engineers to confirm the drilling bucket selectionaccording to the construction geological, while drill bucket can be customized according to customer demand. |
|||||||
Customizable Items:
Cutting DIA. Custom : design various cutting diameter based on demand, like φ950,φ1050 etc.
Shell HIT. Custom : design as demand, prolong or shortten, increase of efficiency by drilling more.
Key Component Reinforce Custom : strengthen the key component to extend life cycle;
Cutter Custom: single cutter and double cutter design as demand;
Bottom Custom : single bottom and double bottom design as demand;
Kelly Box Custom : custom kelly box size based on the kelly bar, like 130*130, 150*150, 200*200 etc;
Bottom Open Mechanic : half-automatic or manul mechanic bottom open system.
