| Place of Origin: | China |
|---|---|
| Brand Name: | TUFF |
| Certification: | ISO9001 |
| Model Number: | 600-3000mm or as required |
| Minimum Order Quantity: | 1 Piece |
| Price: | $1,000.00 - $10,000.00 / Unit |
| Packaging Details: | Wood case outside, plastic cases inside. |
| Delivery Time: | 7-10 days after payment |
| Payment Terms: | L/C, D/A, D/P, T/T |
| Supply Ability: | 100 Unit/Units per Month |
| Material: | 16mn-Q355B | Kelly Box: | Sany--150, Bauer--200, Bauer--250 |
|---|---|---|---|
| Teeth/Bits: | Bullet Teeth/rock Bits, Sand Bits, Roller Bits, Hobs, Pilot Bits | Bottom Type: | Double Bottom And Double Cut,Single Bottom And Single Cut |
| High Light: | Q355B Belling Drilling Bucket,16mn Belling Drilling Bucket,Adjustable Cutting Arms Drilling Bucket |
||

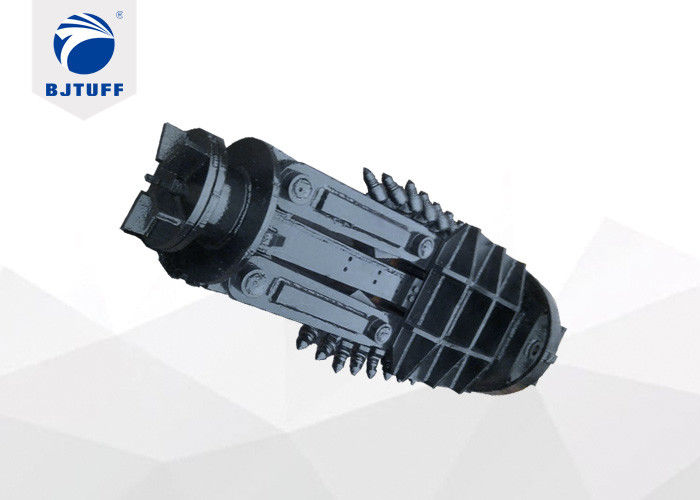

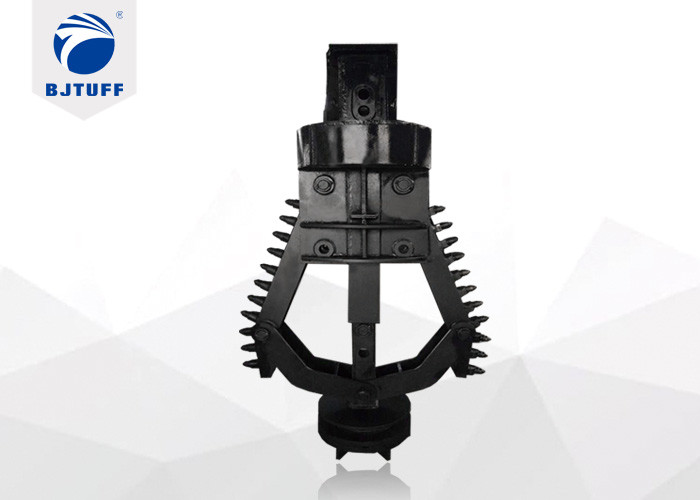

Good quality Drilling Tool Belling Bucket work in Drilling Rig Belling Bucket
Feature:
Adjustable cutting arms can meet the specific requirements of different reaming diameters；
After reaming the bore hole, convey spoil with drilling bucket or cleaning bucket ；
Cutting arms are easy to spread and retract; box-type structure is easy to maintenance;
Applicable layers: hard stratum, frozen soil and medium soft rock；
|
Model
|
Tool HIT.
|
Swing No.
|
Limit Hole No.
|
Teeth No.
|
Reaming Multiples.
|
Weight
|
|
φ600--1200
|
3050
|
2
|
2
|
28
|
1.5-2.0
|
1190
|
|
φ800--1600
|
3100
|
2
|
3
|
28
|
1.5-2.0
|
1310
|
|
φ900--1800
|
3050
|
2
|
3
|
28
|
1.5-2.0
|
1500
|
|
φ1000--2000
|
3050
|
2
|
3
|
30
|
1.5-2.0
|
1650
|
|
φ1100--2200
|
3050
|
2
|
4
|
30
|
1.5-2.0
|
1880
|
|
φ1200--2400
|
3050
|
2
|
4
|
30
|
1.5-2.0
|
2350
|
|
φ1500--3000
|
4000
|
2
|
4
|
32
|
1.5-2.0
|
3600
|
Remark : The length is in milimeters, weight in kilograms.
Customizable Items:
Model DIA. Custom : design various cutting diameter based on demand, like φ950,φ1050 etc.
Key Component Reinforce Custom : strengthen the key component to extend life cycle;
Swing No. Custom : double swing or trible swing design as demand;
Kelly Box Custom : custom kelly box size based on the kelly bar, like 130*130, 150*150,200*200 etc;
Limit Hole No. Custom : add more limit hole to satisfy different reaming diameter demand.
