| Place of Origin: | China |
|---|---|
| Brand Name: | BJTUFF |
| Certification: | ISO9001 |
| Model Number: | 300-3000mm or as required |
| Minimum Order Quantity: | 1 Piece |
| Price: | Negotiated |
| Packaging Details: | standard export packs -Wood case outside, plastic cases inside. |
| Delivery Time: | 3-5 days after payment |
| Payment Terms: | L/C, D/A, D/P, T/T |
| Supply Ability: | 300 Unit/Units per Month |
| Material: | GB-Q355B | Teeth Series: | Round Shank Chisel |
|---|---|---|---|
| Color: | Black Or As Required | Kelly Box Size: | 200*200mm As Usual Or As Your Required |
| Application: | Rotary Drilling Rig | Warranty: | 3 Months |
| High Light: | Double Cutter Rock Drilling Auger,ODM Conical Rock Drilling Auger,Foundation Rock Post Hole Digger |
||

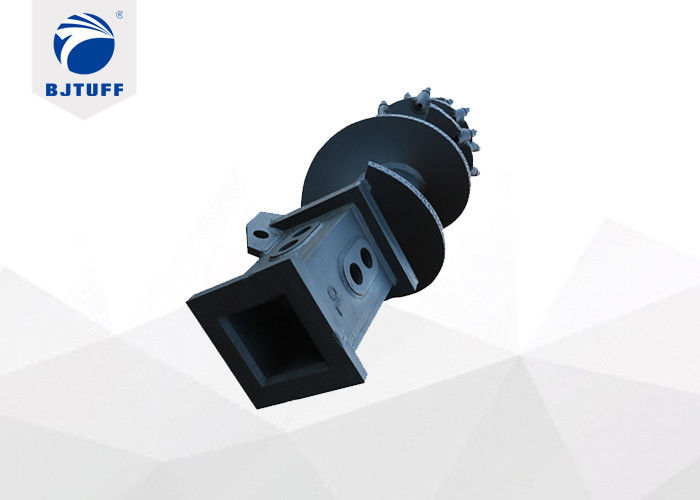

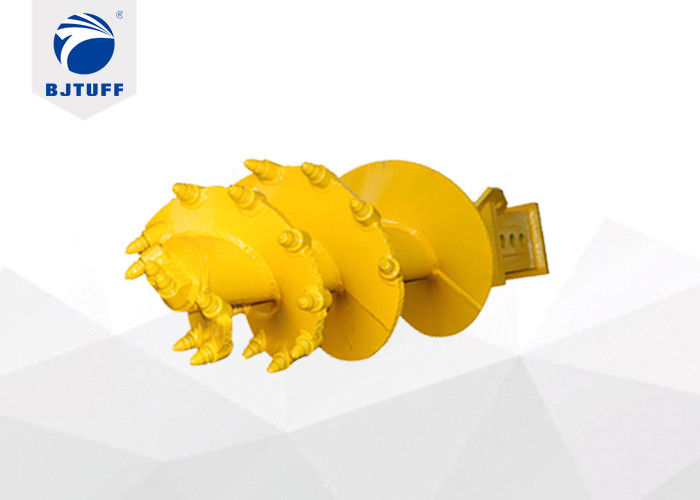

Double Cutter Conical Rock Drilling Auger For Foundation Drilling Tools
Feature:
Located by pilot, conical structure drilling into the rock；
Double cutter bears uniform force and can avoid inclined hole ;
Applicable layers: pebble,mudstone,sandstone layer,medium weathered rock, bedrock；
|
Cutting Dia.
|
Spiral HIT.
|
Spiral Pitch
|
Spiral THK.
|
Spiral OD.
|
Center Tube OD.
|
Teeth No.
|
|
φ600
|
1200
|
600+400
|
30+20
|
550
|
219
|
15
|
|
φ800
|
1400
|
600+400
|
30+20
|
750
|
245
|
21
|
|
φ900
|
1400
|
600+400
|
30+20
|
850
|
245
|
22
|
|
φ1000
|
1500
|
600
|
30+20
|
950
|
245
|
23
|
|
φ1200
|
1500
|
600
|
30+30
|
1150
|
245
|
25
|
|
φ1500
|
1500
|
600
|
30+30
|
1450
|
273
|
32
|
|
φ1800
|
1500
|
600
|
35+30
|
1750
|
273
|
38
|
|
φ2000
|
1500
|
600
|
35+30
|
1950
|
273
|
38
|
|
φ2500
|
1500
|
600
|
35+30
|
2450
|
273
|
40
|
Remark : The length is in milimeters, weight in kilograms.
Customizable Items:
Cutting Diameter Custom : custom cutting diameter based on demand.
Spiral Height Custom : design as demand such as heightening spiral to increase the efficiency for drilling more once.
Spiral Pitch Custom : adjust the spiral pitch according to different layers;
Kelly Box Custom : custom kelly box size based on the kelly bar, like 130*130, 150*150 and etc;
