Focus On Heart, Lasting On Action
| Place of Origin: | China |
|---|---|
| Brand Name: | BJTUFF |
| Certification: | ISO9001 |
| Model Number: | 400-3000mm or as required |
| Minimum Order Quantity: | 1 Piece |
| Price: | Negotiated |
| Packaging Details: | standard export packs -Wood case outside, plastic cases inside. |
| Delivery Time: | 3-5 days after payment |
| Payment Terms: | L/C, D/A, D/P, T/T |
| Supply Ability: | 300 Unit/Units per Month |
| Material: | GB-Q355B Or As Your Required | Teeth Series: | Bullet Teeth |
|---|---|---|---|
| Color: | Black Or As Required | Application: | Rotary Drilling Rig |
| Condition: | New | Name: | Conical Drilling Rig Auger |
| High Light: | 300cm Heavy Duty Rock Augers,40cm heavy duty rock augers,400mm auger for rock |
||

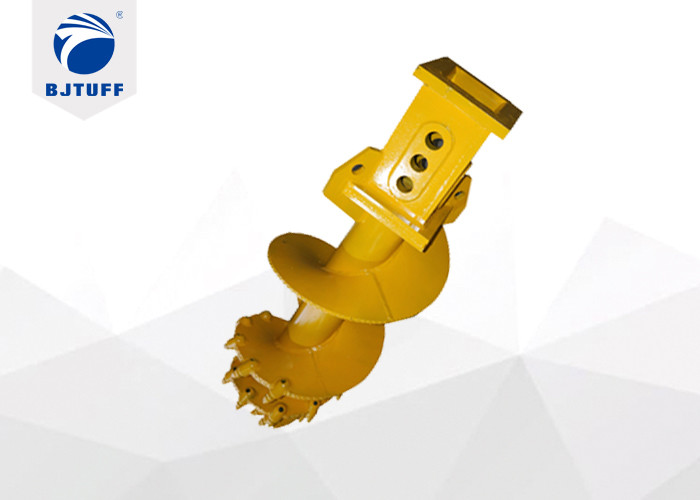

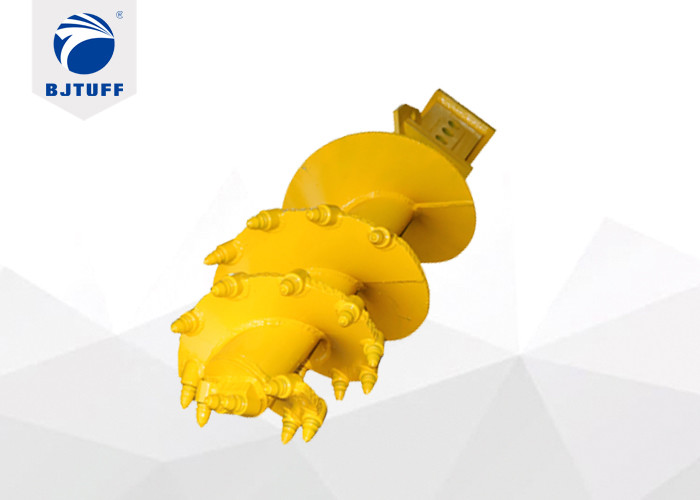

Q355B Rotary Drilling Rig Machine Tools Auger Bucket With Rock Teeth
Feature:
Located by pilot, conical structure drilling into the rock；
Double cutter bears uniform force and can avoid inclined hole ;
Single spiral is easy to dump spoil when meeting cohensive soil;
Applicable layers:any rock layers；
Application:
1. Mateched with any Kelly bar of drilling rig machine ,the kelly box can be designed as your required.
2. Certification:ISO9001.
3. Drill diameter:400-3000mm as usual ,and we can custom the DIA.on your demand.
4. Material :Q355B
|
Cutting Dia.
|
Spiral HIT.
|
Spiral Pitch
|
Spiral THK.
|
Spiral OD.
|
Center Tube OD.
|
Teeth No.
|
|
φ600
|
1200
|
600+400
|
30+20
|
550
|
219
|
15
|
|
φ800
|
1400
|
600+400
|
30+20
|
750
|
245
|
21
|
|
φ900
|
1400
|
600+400
|
30+20
|
850
|
245
|
22
|
|
φ1000
|
1500
|
600
|
30+20
|
950
|
245
|
23
|
|
φ1500
|
1500
|
600
|
30+30
|
1450
|
273
|
32
|
|
φ1800
|
1500
|
600
|
35+30
|
1750
|
273
|
38
|
|
φ2000
|
1500
|
600
|
35+30
|
1950
|
273
|
38
|
|
φ2500
|
1500
|
600
|
35+30
|
2450
|
273
|
40
|
Remark : The length is in milimeters, weight in kilograms.
Customizable Items:
Cutting Diameter Custom : various cutting diameter based on demand, like φ620,φ850 etc.
Spiral Height Custom : heightening spiral to increase the efficiency for drilling more once,and shortening spiral if machine lifting height limited.
Spiral Pitch Custom : adjust the spiral pitch according to different layers;
Key Component Reinforce Custom : extending life cycle;
