Focus On Heart, Lasting On Action
| Place of Origin: | China |
|---|---|
| Brand Name: | BJTUFF |
| Certification: | ISO9001 |
| Model Number: | 400-3000mm or as required |
| Minimum Order Quantity: | 1 Piece |
| Price: | Negotiated |
| Packaging Details: | standard export packs -Wood case outside, plastic cases inside. |
| Delivery Time: | 3-5 days after payment |
| Payment Terms: | L/C, D/A, D/P, T/T |
| Supply Ability: | 300 Unit/Units per Month |
| Material: | 16Mn Or GB-Q355B | Teeth Series: | Bullet Teeth |
|---|---|---|---|
| Kelly Box Size: | 200*200mm As Usual Or As Your Required | Application: | Rotary Drilling Rig |
| After-sales Service Provided: | Online Support Or Accessories Support | Color: | Customer's Request |
| Warranty: | 6 Months | Processing Type: | Welding |
| High Light: | Conical Polit drilling rig auger,Dia 400mm drilling rig auger,ISO9001 Bedrock conical auger |
||

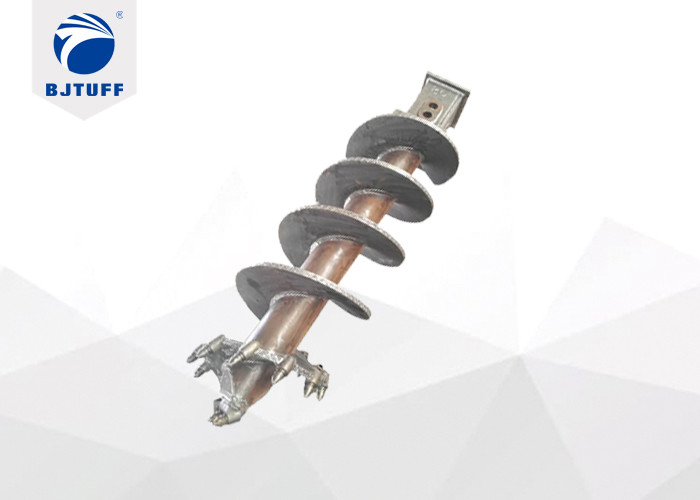

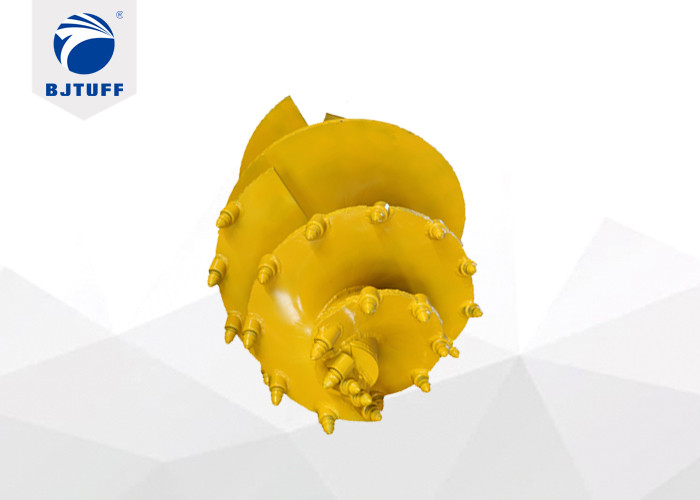

Rotary Pilling Spare Parts Bedrock Drilling Rig Auger Bucket With Conical Polit
Application:
1. Suitable:drilling rig machine.
2. Our goods have processed the certification of ISO9001.
3. Drill diameter:400-3000mm as usual ,and we can custom the DIA.according to working medand.
4. Conical rock auger type :single cutter single spiral rock auger,double cutter single spiral rock auger,double cutter single spiral rock auger.
Feature:
Located by pilot, conical structure drilling into the rock；
Double cutter bears uniform force and can avoid inclined hole ;
Double spiral easy to carry soil, but single spiral is easy to dump spoil when meeting cohensive soil;
|
Cutting Dia.
|
Spiral HIT.
|
Spiral Pitch
|
Spiral THK.
|
Center Tube OD.
|
Teeth No.
|
|
φ600
|
1200
|
600+400
|
30+20
|
219
|
15
|
|
φ800
|
1400
|
600+400
|
30+20
|
245
|
21
|
|
φ900
|
1400
|
600+400
|
30+20
|
245
|
22
|
|
φ1000
|
1500
|
600
|
30+20
|
245
|
23
|
|
φ1500
|
1500
|
600
|
30+30
|
273
|
32
|
|
φ1800
|
1500
|
600
|
35+30
|
273
|
38
|
|
φ2000
|
1500
|
600
|
35+30
|
273
|
38
|
|
φ2500
|
1500
|
600
|
35+30
|
273
|
40
|
Remark : The length is in milimeters, weight in kilograms.
Customizable Items:
Cutting Diameter Custom
Spiral Height Custom to increase the efficiency for drilling more once or limited height about machine lift.
Spiral Pitch Custom according to different layers;
Key Component Reinforce Custom to extend life cycle;
Kelly Box Custom;
