Focus On Heart, Lasting On Action
| Place of Origin: | China |
|---|---|
| Brand Name: | BJTUFF |
| Certification: | ISO9001 |
| Model Number: | 400-3000mm or as required |
| Minimum Order Quantity: | 1 Piece |
| Price: | Negotiated |
| Packaging Details: | Wood case outside, plastic cases inside. |
| Delivery Time: | 3-5 days after payment |
| Payment Terms: | L/C, D/A, D/P, T/T |
| Supply Ability: | 200 Unit/Units per Month |
| Material: | Q355B | Bottom Type: | Double-bottom Double Open |
|---|---|---|---|
| Teeth Type: | Rock Drilling Tooth | Application: | Clay And Rock |
| After-sales Service Provided: | Online Support | Processing Type: | Welding |

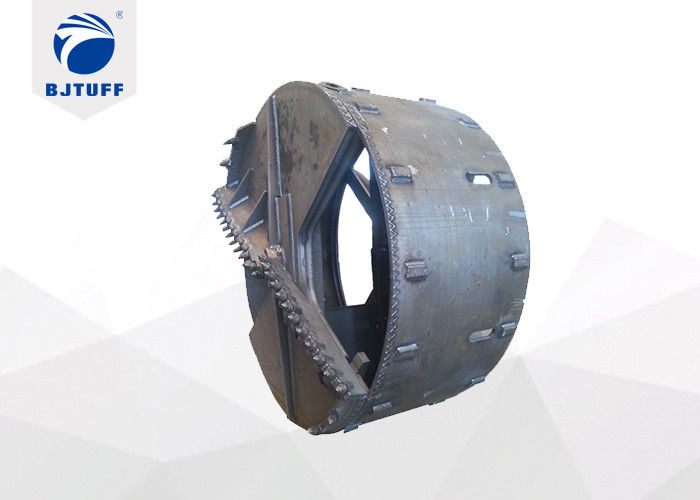

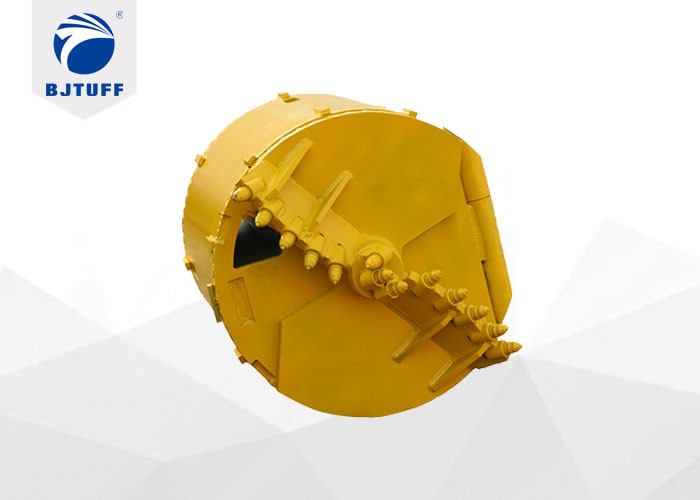

Customizable Hard Rock Drilling Bucket For Drilling Rig Equipment
Brief Introduction:
1.It is used for hard-textured layers with hard cores and strong and medium -weathered rocks with rock hardness less than 80Mpa.
2.Sand layer with high water content,silty clay,gravel layer,pebble layer,shell layer,iron plate sand,high strength frozen soil.
3.Strong to medium weathered rock formations and other soft and hard formations and complex formations.
Feature:
Option half-automatic or manul mechanic bottom open system. Built-in ventilation pipe(mud channels)；
Cast pilot with rock drilling bits , and design a reasonable cross-drilling pick angle.
Staggered arrangement of rock drilling bits;
The upper and lower periphery of the cylinder are equipped with hardening treatment.
Adopt double bottom plate, and the rotate bottom plate can be replaced.
Model List:
| Cutting Dia. | Shell HIT. | Shell THK. | Bottom THK. | Teeth No. | Weight |
| φ600 | 1200 | 16 | 40+40 | 4 | 640 |
| φ800 | 1200 | 16 | 40+50 | 4 | 900 |
| φ1000 | 1200 | 16 | 40+50 | 5 | 1100 |
| φ1200 | 1200 | 16 | 40+50 | 7 | 1375 |
| φ1500 | 1200 | 16 | 40+50 | 9 | 2000 |
| φ1600 | 1200 | 16 | 40+50 | 9 | 2250 |
| φ1800 | 1000 | 20 | 50+50 | 12 | 2700 |
| φ2000 | 800 | 20 | 50+50 | 14 | 3200 |
| φ2500 | 800 | 20 | 50+50 | 19 | 4800 |
| φ2800 | 800 | 20 | 50+50 | 22 | 6000 |
| φ3000 | 800 | 20 | 50+50 | 24 | 7000 |
| Remark: measurements are in millimeters, weight in kilograms. | |||||
Customizable Items:
Cutting DIA. Custom : various cutting diameter design.
Shell Height Custom :heightening shell to increase the efficiency of drilling more once,
Key Component Reinforce Custom : Structural strengthening to adjust different working conditions;
Cutter Custom: single or double cutter as your different layers;
Bottom Custom : single or double bottom as your different layers;
Kelly Box Custom : like 130*130, 150*150, 200*200 etc;
Bottom Open Mechanic : half-automatic or manul mechanic bottom open system.
