| Place of Origin: | CHINA |
|---|---|
| Brand Name: | BJTUFF |
| Model Number: | 1080/1000mm |
| Minimum Order Quantity: | 1 Piece |
| Price: | Negotiated |
| Packaging Details: | Plastic cases . |
| Delivery Time: | 15 work days |
| Supply Ability: | 50 Pieces/30 days |
| Casing Type: | Double Wall Casing | Ineer Shell Thickness: | 8-16mm |
|---|---|---|---|
| Outer Shell Thickness: | 12-25mm | Casing Thickness: | 40-60mm |
| Bolts No.: | 8-18 | Connection Type: | Bolted Connection |
| Process: | Forging/Casting | Technique: | Hot Rolled |
| High Light: | Double Wall Drilling Casing Pipe,1080/1000mm Drilling Casing Pipe,Casing Pipe For Bauer Soilmec |
||

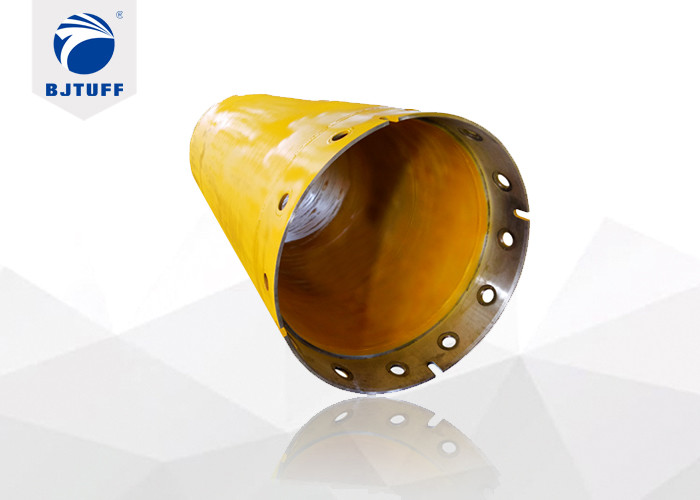

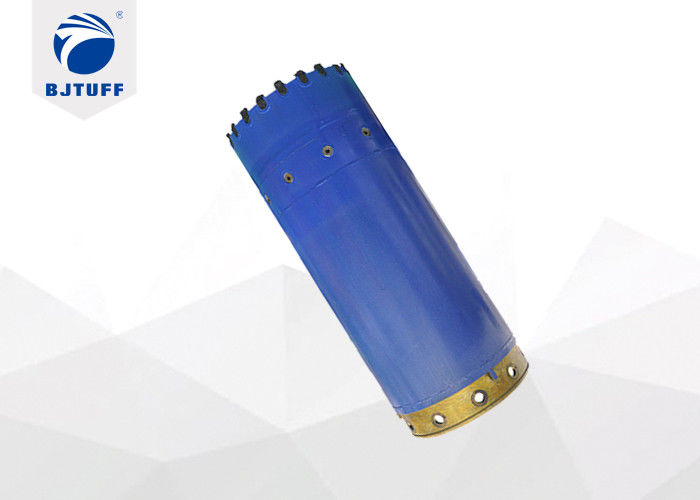

Double Wall Drilling Casing Pipe for Bauer Soilmec and Casagrande Rotary Rig
Casing tube is different from temporary casing, according to its structure can be divided into single-wall casing and double-wall
casing; according to length can be divided into single section 2m, 3m, 4m casing section.
Feature:
1. The technical parameters and processes of the products are in line with the Bauer standard;
2. Deformation and accuracy is strictly controlled through heat treatment,each casing is interchangeable;
3. Besides Bauer,casing is also suitable for Soilmec,Casagrande and other brand;
| Casing Dia. | Inner Shell THK. | Outer Shell THK. | Casing THK. | Bolts No. | Weight(3 meter) |
| 680-600 | 8 | 12 | 40 | 8 | 1090 |
| 880-800 | 8 | 12 | 40 | 10 | 1335 |
| 1080-1000 | 10 | 16 | 40 | 10 | 2180 |
| 1280-1200 | 10 | 16 | 40 | 12 | 2480 |
| 1600-1500 | 12 | 20 | 50 | 16 | 3910 |
| 2000-1880 | 16 | 25 | 60 | 18 | 5900 |
| 2500-2380 | 16 | 25 | 60 | 18 | 7310 |
| Remark : All measurements are in millimeters, weight in kilograms. | |||||
