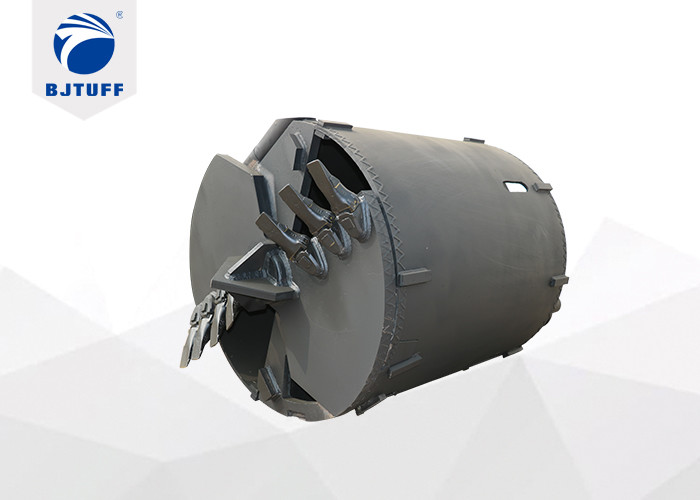

Double Cutter Double Bottom Straight Clay Drilling Bucket For Drill Rig Machine

Double Cutter Double Bottom Straight Clay Drilling Bucket For Drill Rig Machine



Application:

1.If matched with V20 teeth ,18TL,25T and other flat teeth ,the applicable scape is silt ,gravel ,clay and highly weathered rock .

2.If matched with BFZ70,BFZ72,BFZ80 and other Bauer type flat teeth, strong weathered rock such as mudstone ,shale,silty red sandstone ,marl,etc with hardness less than 30Mpa.it's very efficient in very sticky mudstone and conglomerate formations.



Feature

1.Option prolong straight bucket shell can avoids drilling hole inclined;

2.Choose conical shell type can accelerate dumping, increase of efficiency;

3.Ventilation pipe shaft inside prevents vacuum; add collar plate according to working conditions;

4.The upper and lower periphery of the cylinder are equipped with hardening treatment.

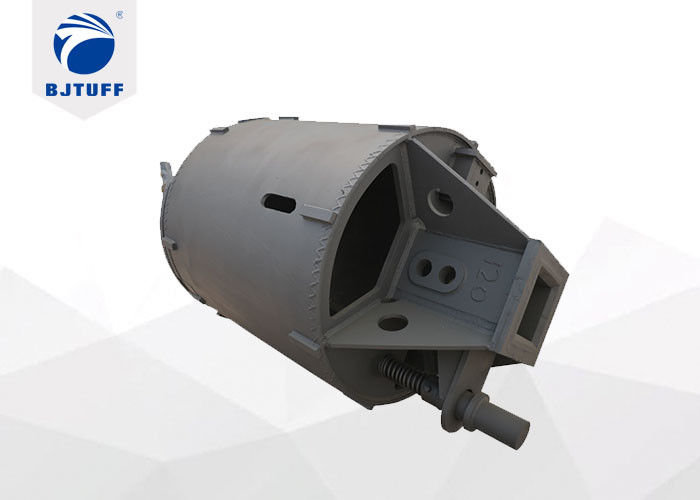

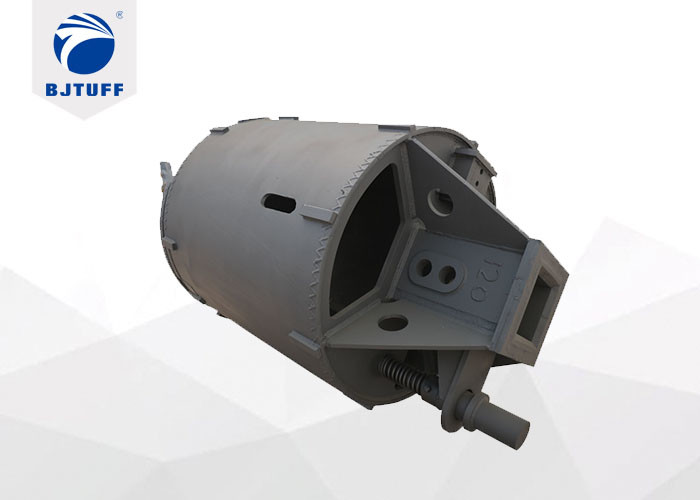

5.There are double bottom plates under the barrel. The fixed bottom and rotate bottom plates are connected by a central suspension shaft.The two can rotate relatived to each other at a certain angle to realize the opening and closing of the bucket bottom soil inlet.

6.Option half-automatic or manul mechanic bottom open system.



Model List:

Cutting Dia.	Shell HIT.	Shell OD.	Shell THK.	Fixed Bottom THK.	Rotate Bottom THK.	Teeth No.	Weight
φ600	1200	520	16	40	40	4	640
φ800	1200	720	16	40	50	4	900
φ900	1200	820	16	40	50	5	1050
φ1000	1200	920	16	40	50	5	1100
φ1200	1200	1120	16	40	50	7	1375
φ1500	1200	1420	16	40	50	9	2000
φ1600	1200	1520	16	40	50	9	2250
φ1800	1000	1720	20	50	50	12	2700
φ2000	800	1920	20	50	50	14	3200
φ2500	800	2420	20	50	50	19	4800
φ2800	800	2720	20	50	50	22	6000
φ3000	800	2920	20	50	50	24	7000
Remark: measurements are in millimeters, weight in kilograms.





Customizable Items:
Cutting DIA. Custom : design various cutting diameter based on demand, like φ950,φ1050 etc.
Shell Height Custom :heightening shell to increase  the efficiency of drilling more once,
Key Component Reinforce Custom : strengthen the key component to extend life cycle or adjust different working conditions;
Cutter Custom: single cutter and double cutter design as demand;
Bottom Custom : single bottom and double bottom design as demand;
Kelly Box Custom : custom kelly box size based on the kelly bar, like 130*130, 150*150, 200*200 etc;
Bottom Open Mechanic : half-automatic or manul mechanic bottom open system.



Product advantage:

1-We purchase top quality raw materials from leading raw-steel factory.

2-Our drilling tools can be customized depending on kinds of rigs and site conditions.

3-We require high quality of welding, therefore we employ at least 8 years experienced welders.

4-Advanced welding and design ensure the products longer working life, which helps the client to reduce construction budget.

Understand what customers need and provide what customers want, We provide one-stop solution for the world’s foundation construction users. While providing customized quality products, our services will leave you with no worries. We boast a group of experienced foundation construction experts and consultants, who not only recommend the use of suitable products based on customer needs, but also give reasonable advice on the operation of construction equipment and construction methods.



FAQ:

Q1.What does your company produce?

The main products of our company include drilling tools,drilling teeth,casing series,kelly bar accessories and ect.



Q2.How do you control the quality of your products?

First,we use good steel GB-Q345B.Our welding stick is flux-cored wire that applied to ship engineering.

Second, We strictly control the process,so If the quality of the product itself has the problem of open welding, we will give compensation;

Third, we promise good quality and after-sales service.



Q3.Can you supply after-sales service?
Of course, Customers could contact our sales managers on line/by email/by phone if there are any question during installation or construction, solutions will be given within 12 hours.



Q4.Can you produce drilling tools as customers' requirement?

Yes.With the help of experienced team of engineers and well-supervised production team,BJTUFF has a greater ability to produce top-quality and vaires customizable foundation drilling tools .
