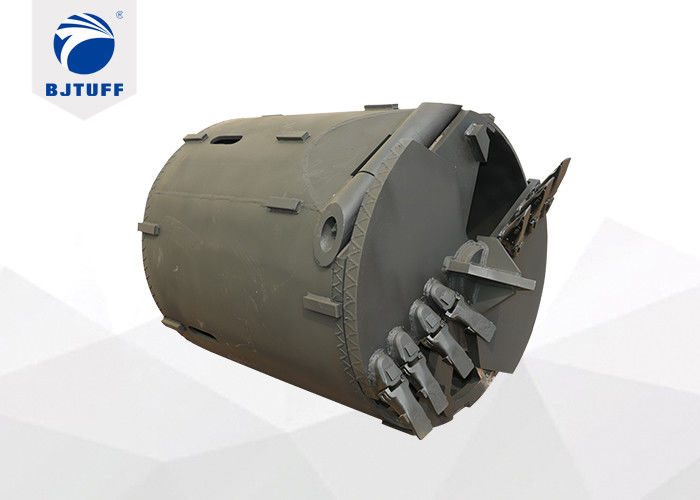

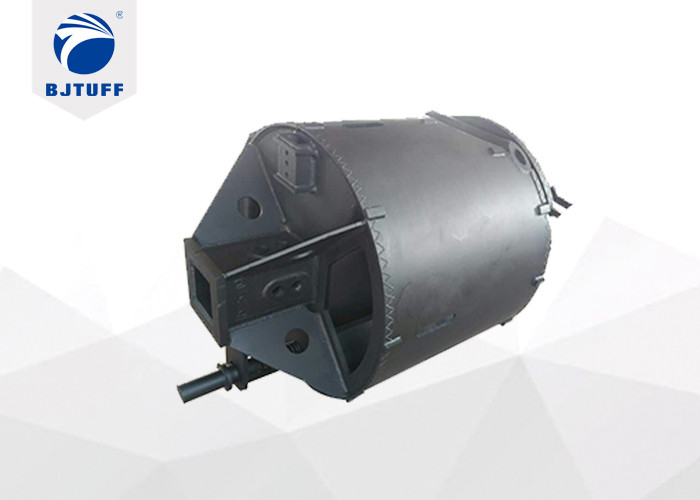

Q345B Bore Piling Machine Flat Teeth Drilling Buckets With Wear Resisting Strips

Bore Piling Machine Flat Teeth Drilling Buckets With Wear Resisting Strips

Application:

strong weathered rock such as mudstone ,shale,silty red sandstone ,marl,etc with hardness less than 30Mpa.it's more efficient in very sticky mudstone and conglomerate formations if matched with BFZ70,BFZ72,BFZ80 and other Bauer type flat teeth,

Feature

1.Option prolong straight bucket shell can avoids drilling hole inclined;

2.Choose conical shell type can accelerate dumping, increase of efficiency;

3.Ventilation pipe shaft inside prevents vacuum; add collar plate according to working conditions;

5.There are double bottom plates under the barrel connected by a central suspension shaft.The two can rotate relatived to each other at a certain angle for opening and closing  the bucket bottom soil inlet.

6.Option half-automatic or manul mechanic bottom open system.

Model List:

Customizable Items:
Shell Height Custom :heightening shell to increase  the efficiency of drilling more once,
Cutter Custom: single cutter and double cutter design as demand;
Bottom Custom : single bottom and double bottom design as demand;
Kelly Box Custom : custom kelly box size based on the kelly bar, like 130*130, 150*150, 200*200 etc;
Bottom Open Mechanic : half-automatic or manul mechanic bottom open system.

Product advantage:

1-We purchase top quality raw materials from leading raw-steel factory .

2-Our drilling tools can be customized depending on kinds of rigs and site conditions.

3-We require high quality of welding with flux-cored wire, therefore we employ at least 8 years experienced welders.

4-Advanced welding and design ensure the products longer working life, which helps the client to reduce construction budget.

Understand what customers need and provide what customers want, We provide one-stop solution for the world’s foundation construction users.  We boast a group of experienced foundation construction experts and consultants, who not only recommend the use of suitable products based on customer needs, but also give reasonable advice on the operation of construction equipment and construction methods.

FAQ:

Q1.What does your company produce?

The main products of our company include drilling tools,drilling teeth,casing series,kelly bar accessories and ect.

Q2.How do you control the quality of your products?

First,we use good steel GB-Q345B.Our welding stick is flux-cored wire that applied to ship engineering.

Second, We strictly control the process,so If the quality of the product itself has the problem of open welding, we will give compensation;

Third, we promise good quality and after-sales service.

Q3.Can you supply after-sales service?
Of course, Customers could contact our sales managers on line/by email/by phone if there are any question during installation or construction, solutions will be given within 12 hours.
