Focus On Heart, Lasting On Action
| Place of Origin: | China |
|---|---|
| Brand Name: | BJTUFF |
| Certification: | ISO9001 |
| Model Number: | 350-3000mm or as required |
| Minimum Order Quantity: | 1 Piece |
| Price: | Negotiated |
| Packaging Details: | Wood case outside, plastic cases inside. |
| Delivery Time: | 3-5 days after payment |
| Payment Terms: | L/C, D/A, D/P, T/T |
| Supply Ability: | 200 Unit/Units per Month |
| Teeth Type: | Flat Teeth | Name: | Drill Buckts/drill Augers |
|---|---|---|---|
| Processing Type: | Welding | Application: | Clay And Highly Weathered Rock |
| Machine Type: | Piling | Color: | Black ,or Customized |
| High Light: | All Sizes Kelly Box Drilling Bucket,Flat Teeth Clay Drilling Bucket,ISO9001 Foundation Drilling Bucket |
||

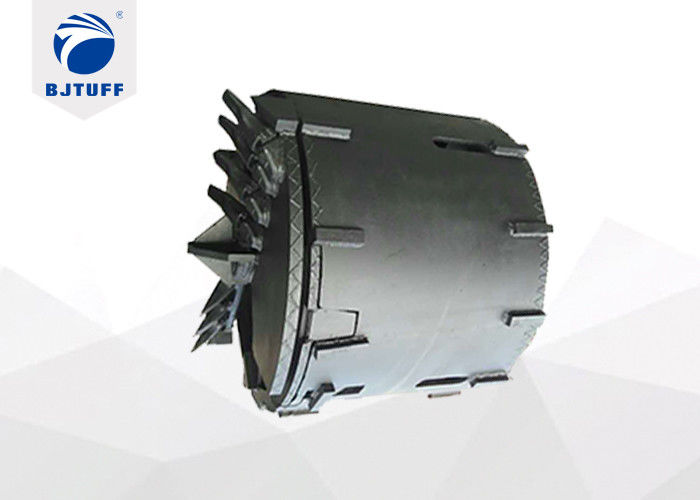

Foundation Drilling Tools Clay Drilling Bucket With Any Size Kelly Box
Application:
1.If matched with V20 teeth ,18TL,25T and other flat teeth , highly weathered rock such as mudstone ,shale,silty red sandstone ,marl,etc with hardness less than 30Mpa.
2.If matched with BFZ70,BFZ72,BFZ80 and other Bauer type flat teeth,it's more efficient in very sticky mudstone and conglomerate formations.
Feature
1.The shell of bucket can be desiged to be straight to avoid drilling hole inclined or conical for accelerating dumping and increasing of efficiency .
2.Ventilation pipe shaft inside prevents vacuum; add collar plate according to working conditions;
3.The upper and lower periphery of the cylinder are equipped with hardening treatment.
4.There are double bottom double cutter plates under the barrel or can be customizable.
Model List:
| Cutting Dia. | Shell HIT. | Shell THK. | Fixed Bottom THK. | Rotate Bottom THK. | Teeth No. | Weight |
| φ600 | 1200 | 16 | 40 | 40 | 4 | 640 |
| φ800 | 1200 | 16 | 40 | 50 | 4 | 900 |
| φ1000 | 1200 | 16 | 40 | 50 | 5 | 1100 |
| φ1200 | 1200 | 16 | 40 | 50 | 7 | 1375 |
| φ1500 | 1200 | 16 | 40 | 50 | 9 | 2000 |
| φ1600 | 1200 | 16 | 40 | 50 | 9 | 2250 |
| φ1800 | 1000 | 20 | 50 | 50 | 12 | 2700 |
| φ2000 | 800 | 20 | 50 | 50 | 14 | 3200 |
| φ2500 | 800 | 20 | 50 | 50 | 19 | 4800 |
| φ2800 | 800 | 20 | 50 | 50 | 22 | 6000 |
| φ3000 | 800 | 20 | 50 | 50 | 24 | 7000 |
| Remark: measurements are in millimeters, weight in kilograms. | ||||||
Customizable Items:
Key Component Reinforce Custom :extend life cycle or adjust different working conditions;
Cutter Custom: single cutter and double cutter design as demand;
Bottom Custom : single bottom and double bottom design as demand;

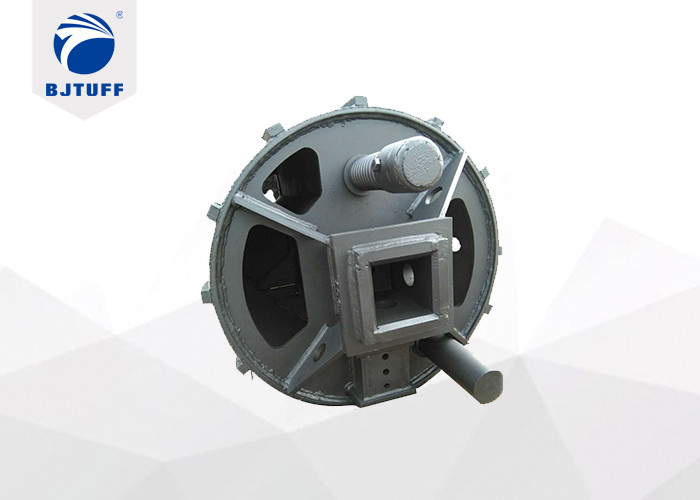

Kelly Box Custom :commonly 200*200mm,and also can custom kelly box size based on the kelly bar, like 130*130, 150*150, 250*250etc;
Bottom Open Mechanic : half-automatic or manul mechanic bottom open system.
Product advantage:
1-We purchase top quality raw materials from leading raw-steel factory.
2-Our drilling tools can be customized depending on kinds of rigs and site conditions.
3-We require high quality of welding, therefore we employ at least 8 years experienced welders.
4-Understand what customers need and provide what customers want, We provide one-stop solution for the world’s foundation construction users.
5-We boast a group of experienced foundation construction experts and consultants.
FAQ:
Q1.What does your company produce?
The main products of our company include drilling tools,drilling teeth,casing series,kelly bar accessories and ect.
Q2.How do you control the quality of your products?
First,we use good steel GB-Q345B.Our welding stick is flux-cored wire that applied to ship engineering.
Second, We strictly control the process,so If the quality of the product itself has the problem of open welding, we will give compensation;
Third, we promise good quality and after-sales service will be given anytime.
