| Place of Origin: | China |
|---|---|
| Brand Name: | BJTUFF |
| Certification: | ISO9001 |
| Model Number: | 350-3000mm or as required |
| Minimum Order Quantity: | 1 Piece |
| Price: | Negotiated |
| Packaging Details: | Wood case outside, plastic cases inside. |
| Delivery Time: | 3-5 days after payment |
| Payment Terms: | L/C, D/A, D/P, T/T |
| Supply Ability: | 200 Unit/Units per Month |
| Product Name: | Hard Soil Drilling Mini Bucket | Teeth Type: | V20,22S,18TL,25T BFZ70,BFZ72,BFZ80 Or Other Flat Teeth |
|---|---|---|---|
| Bearing Material: | 40Cr | Warranty: | 1 Year |
| Material: | Q355B | OEM: | Availiable |
| After-sales Service Provided: | Free Spare Parts,Online Support,Video Technical Support | Machine Type: | Rotary Drilling Rig |
| High Light: | 40Cr Bearing Drilling Bucket,Q355B Drilling Bucket,Soil Drilling Teeth Flat Boring Bucket |
||

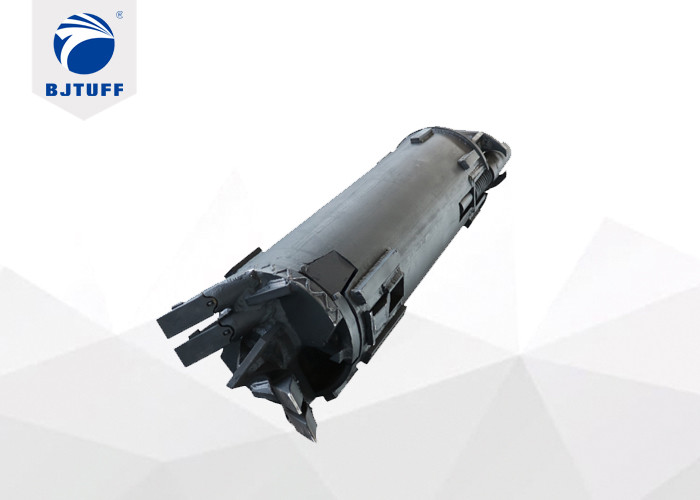

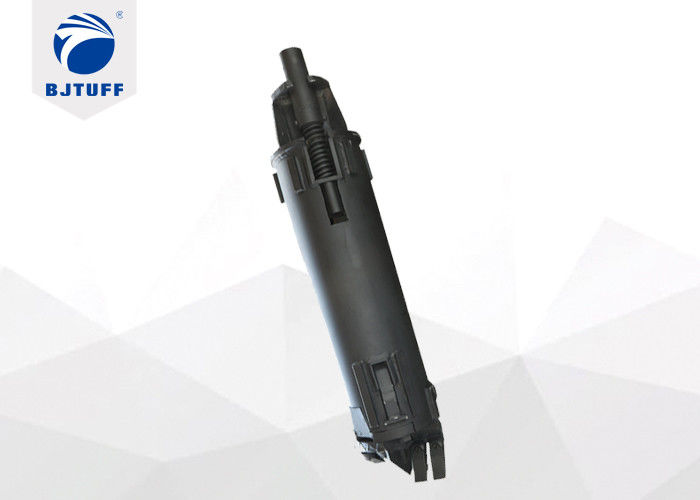

Customizable Small Diameter Flat Boring Bucket With Soil Drilling Teeth
Application:
1.Strong weathered rock such as mudstone ,shale,silty red sandstone ,marl,etc with hardness less than 30Mpa are the applicable scape .
2. it's more efficient in very sticky mudstone and conglomerate formations if matched with BFZ70,BFZ72,BFZ80 and other Bauer type flat teeth.
Feature
1.Option prolong straight bucket shell can avoids drilling hole inclined;
2.Choose conical shell type can accelerate dumping, increase of efficiency;
3.Ventilation pipe shaft inside prevents vacuum; add collar plate according to working conditions;
4.Option half-automatic or manul mechanic bottom open system.
Model List:
| Cutting Dia. | Shell HIT. | Shell OD. | Shell THK. | Fixed Bottom THK. | Rotate Bottom THK. | Teeth No. | Weight |
| φ600 | 1200 | 500 | 16 | 40 | 40 | 4 | 640 |
| φ800 | 1200 | 700 | 16 | 40 | 50 | 4 | 900 |
| φ900 | 1200 | 800 | 16 | 40 | 50 | 5 | 1050 |
| φ1000 | 1200 | 900 | 16 | 40 | 50 | 5 | 1200 |
| φ1200 | 1200 | 1100 | 16 | 40 | 50 | 7 | 1550 |
| φ1500 | 1200 | 1400 | 16 | 40 | 50 | 9 | 2050 |
| φ1600 | 1200 | 1500 | 16 | 40 | 50 | 9 | 2250 |
| φ1800 | 1000 | 1700 | 20 | 50 | 50 | 12 | 2700 |
| φ2000 | 800 | 1900 | 20 | 50 | 50 | 14 | 3260 |
| φ2500 | 800 | 2400 | 25 | 50 | 50 | 19 | 5400 |
| φ2800 | 800 | 2700 | 25 | 50 | 50 | 22 | 6630 |
| φ3000 | 800 | 2900 | 25 | 50 | 50 | 24 | 7400 |
| Remark: measurements are in millimeters, weight in kilograms. | |||||||
Customizable Items:
Cutting DIA. Custom : design various cutting diameter based on demand, like φ950,φ1050 etc.
Shell Height Custom :heightening shell to increase the efficiency of drilling more once,
Key Component Reinforce Custom : strengthen the key component to extend life cycle or adjust different working conditions;
Cutter Custom: single cutter and double cutter design as demand;
Bottom Custom : single bottom and double bottom design as demand;
Kelly Box Custom : custom kelly box size based on the kelly bar, like 130*130, 150*150, 200*200 etc;
Bottom Open Mechanic : half-automatic or manul mechanic bottom open system.
Product advantage:
1-We purchase top quality raw materials from leading raw-steel factory.
2-Our drilling tools can be customized depending on kinds of rigs and site conditions.
3-We require high quality of welding, therefore we employ at least 8 years experienced welders.and our welding stick is flux-cored wire that applied to ship engineering.
4-Advanced welding and design ensure the products longer working life, which helps the client to reduce construction budget.
5-We provide one-stop solution for the world’s foundation construction users. While providing customized quality products, our services will leave you with no worries.
6-We boast a group of experienced foundation construction experts and consultants, who not only recommend the use of suitable products based on customer needs, but also give reasonable advice on the operation of construction equipment and construction methods.
7-We strictly control the process,so If the quality of the product itself has the problem of open welding, we will give compensation.and will provide good after-sales service.
