Place of Origin: | China |
---|---|
Brand Name: | BJTUFF |
Certification: | ISO9001 |
Model Number: | 350-3000mm or as required |
Minimum Order Quantity: | 1 Piece |
Price: | Negotiated |
Packaging Details: | Wood case outside, plastic cases inside. |
Delivery Time: | 3-5 days after payment |
Payment Terms: | L/C, D/A, D/P, T/T |
Supply Ability: | 200 Unit/Units per Month |
Name: | Double Bottom Double Open Sand Soil Drilling Bucket | Teeth Type: | Any Flat Teeth |
---|---|---|---|
Size: | As Customer Required | Warranty: | 6 Months |
Applicable Industries: | Energy & Mining, Construction Works , Foundation Construction | Material: | Q355B ,Customized |
Bearing Material: | 40Cr | OEM: | Availiable |
High Light: | flat teeth BFZ70 Drilling Bucket,ISO9001 Conical Soil Bucket,Flat Teeth Bfz70 Conical Clay Bucket |

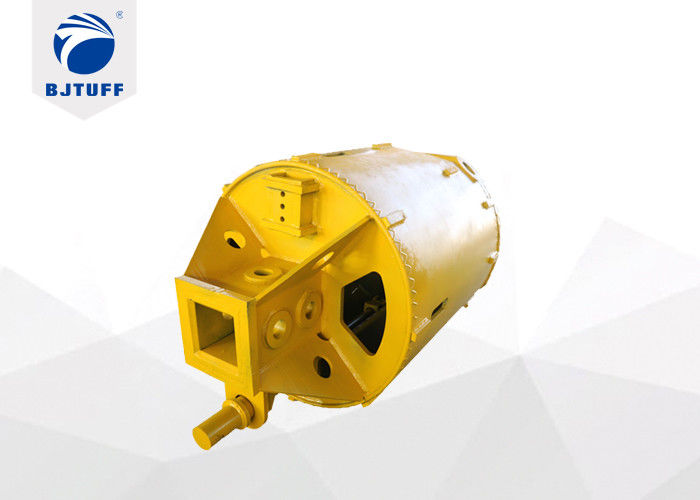

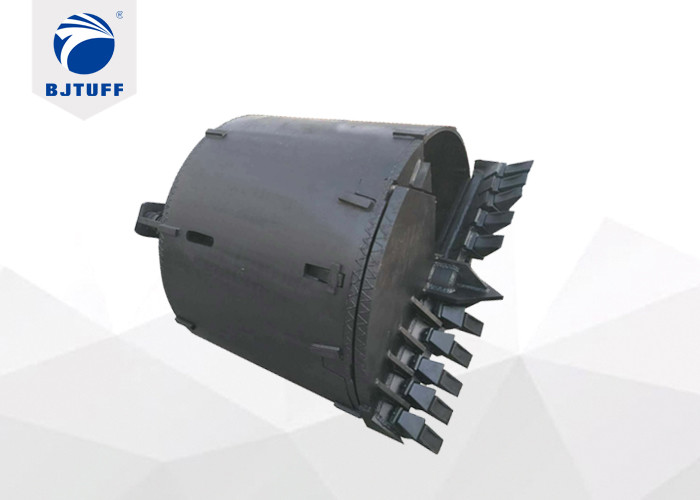

Rotary Drilling Rig Spare Parts Conical Clay Bucket With Flat Teeth BFZ70
Application:
1.If matched with V20 teeth ,18TL,25T and other flat teeth ,the applicable scape is silt ,gravel ,clay and highly weathered rock .
2.If matched with BFZ70,BFZ72,BFZ80 and other Bauer type flat teeth, strong weathered rock such as mudstone ,shale,silty red sandstone ,marl,etc with hardness less than 30Mpa.it's very efficient in very sticky mudstone and conglomerate formations.
Feature
1.Option prolong straight bucket shell can avoids drilling hole inclined;
2.Choose conical shell type can accelerate dumping, increase of efficiency;
3.Ventilation pipe shaft inside prevents vacuum; add collar plate according to working conditions;
Model List:
Cutting Dia. | Shell HIT. | Shell OD. | Shell THK. | Fixed Bottom THK. | Rotate Bottom THK. | Teeth No. | Weight |
φ600 | 1200 | 500 | 16 | 40 | 40 | 4 | 640 |
φ800 | 1200 | 700 | 16 | 40 | 50 | 4 | 900 |
φ1000 | 1200 | 900 | 16 | 40 | 50 | 5 | 1200 |
φ1200 | 1200 | 1100 | 16 | 40 | 50 | 7 | 1550 |
φ1500 | 1200 | 1400 | 16 | 40 | 50 | 9 | 2050 |
φ1600 | 1200 | 1500 | 16 | 40 | 50 | 9 | 2250 |
φ1800 | 1000 | 1700 | 20 | 50 | 50 | 12 | 2700 |
φ2000 | 800 | 1900 | 20 | 50 | 50 | 14 | 3260 |
φ2500 | 800 | 2400 | 25 | 50 | 50 | 19 | 5400 |
φ2800 | 800 | 2700 | 25 | 50 | 50 | 22 | 6630 |
φ3000 | 800 | 2900 | 25 | 50 | 50 | 24 | 7400 |
Remark: measurements are in millimeters, weight in kilograms. |
Customizable Items:
Shell Height Custom :heightening shell to increase the efficiency of drilling more once,
Key Component Reinforce Custom : extend life cycle or adjust different working conditions;
Cutter Custom: single cutter and double cutter design as demand;
Bottom Custom : single bottom and double bottom design as demand;
Kelly Box Custom : custom kelly box size based on the kelly bar, like 130*130, 150*150, 200*200.250*250mm etc;
Bottom Open Mechanic : half-automatic or manul mechanic bottom open system.
Product advantage:
1-We purchase top quality raw materials from leading raw-steel factory.
2-Our drilling tools can be customized depending on kinds of rigs and site conditions.
3-We require high quality of welding, therefore we employ at least 8 years experienced welders.
4-Advanced welding and design ensure the products longer working life, which helps the client to reduce construction budget.
5-We can provide technical support and one-stop solution for the world’s foundation construction users.
6-we promise good quality and after-sales service.Customers could contact our sales managers on line/by email/by phone if there are any question during installation or construction, solutions will be given within 12 hours.

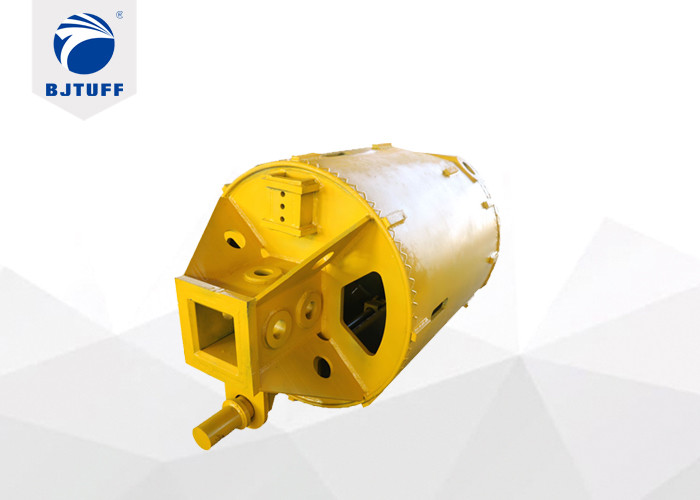

Conical soil bucket:
