| Place of Origin: | CHINA |
|---|---|
| Brand Name: | BJTUFF |
| Model Number: | 1200mm |
| Minimum Order Quantity: | 1 Piece |
| Price: | Negotiated |
| Packaging Details: | Plastic cases . |
| Delivery Time: | 5-8 work days |
| Supply Ability: | 200 Pieces/30 days |
| Teeth Type: | Bullet Teeth | Kelly Box: | 130*130, 150*150,200*200 Etc |
|---|---|---|---|
| Application: | Rotary Drilling Rig | Process: | Coated Sand Casting |
| Condition: | New | Product Name: | Drilling Bucxlet |
| Color: | Black Or As Required | Material: | MN-Q345B |
| High Light: | 1200mm Open Type Rock Boring Bucket,Rock Boring Bucket 200*200 Kelly Box,130*130 Kelly Box Drilling Bucket |
||

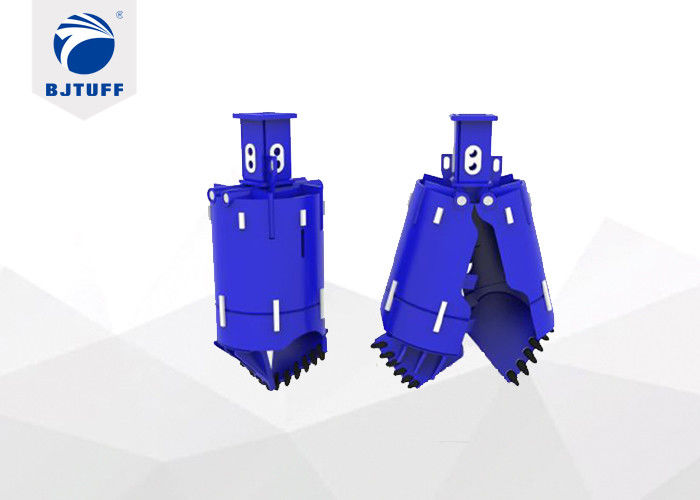

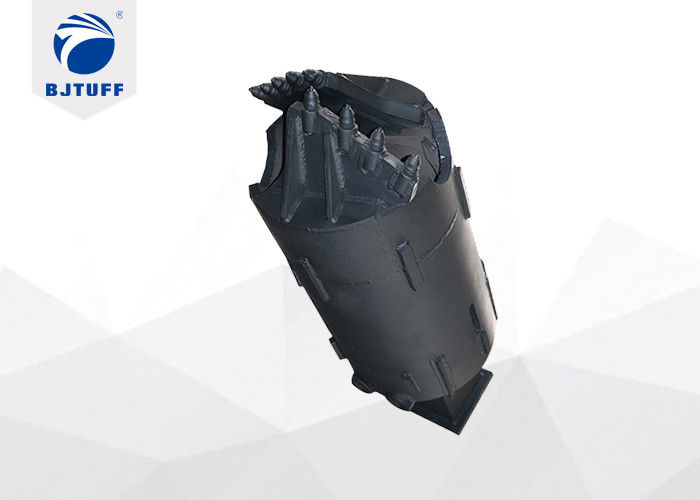

High Quality Boring Tools Rock Drilling Bucket With Open Type Body
Feature
1. Large inlet of soil ,open shell design, easy to dump spoil so increases the drilling efficiency；
2. Super strength structure for shell,guide plate etc, increase the life cycle of bucket; Guide strips 3.arranged on the surface of bucket can avoid drilling tool sucked by the pressure；
4. Applicable layers: clay , silt , highly weathered rock；
Customizable Items
1. Cutting DIA. Custom : design various cutting diameter based on demand, like φ950,φ1050 etc.
2. Teeth Custom : equiped different teeth, like bullet teeth, flat teeth according to different working condition;
3. Kelly Box Custom : custom kelly box size based on the kelly bar, like 130*130, 150*150,200*200 etc;
| Cutting Dia. | Shell HIT. | Shell OD. | Shell THK. |
Stiffening Ring THK. |
Stiffening Ring HIT. |
Teeth No. | Weight |
| φ600 | 1000 | 520 | 30 | 40 | 300 | 7 | 805 |
| φ800 | 1200 | 720 | 30 | 40 | 300 | 9 | 1238 |
| φ900 | 1200 | 820 | 30 | 40 | 300 | 10 | 1500 |
| φ1000 | 1200 | 920 | 30 | 40 | 300 | 11 | 1700 |
| φ1200 | 1200 | 1120 | 30 | 40 | 300 | 13 | 2140 |
| Remark : All measurements are in millimeters, weight in kilograms. | |||||||
