| Place of Origin: | CHINA |
|---|---|
| Brand Name: | BJTUFF |
| Model Number: | 800mm |
| Minimum Order Quantity: | 1 Piece |
| Price: | Negotiated |
| Packaging Details: | Plastic cases . |
| Delivery Time: | 5-8 work days |
| Supply Ability: | 200 Pieces/30 days |
| Drilling Diameter: | 600-1200mm Or As Required | Kelly Box: | 130*130, 150*150,200*200 Etc |
|---|---|---|---|
| Application: | Rotary Drilling Rig | Processing Type: | Forging |
| Condition: | New | Product Name: | Drilling Bucxlet |
| Color: | Black Or As Required | Material: | MN-Q345B |
| High Light: | 800mm Hydraulic Piling Rig Bucket,80cm Hydraulic Piling Rig Bucket,Bucket With Rock Drilling Bits |
||

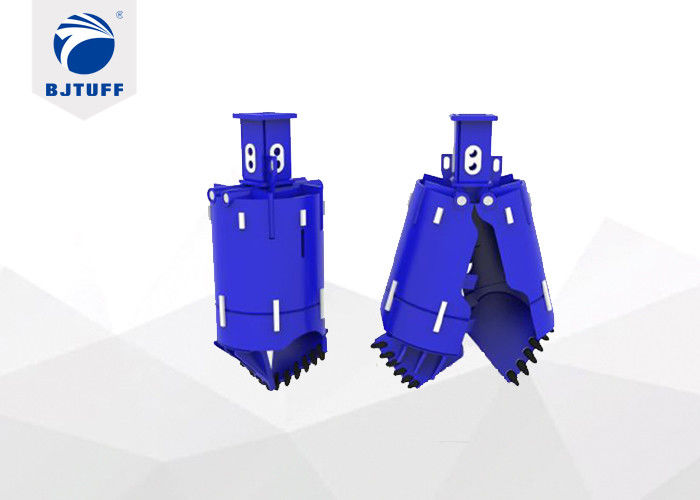

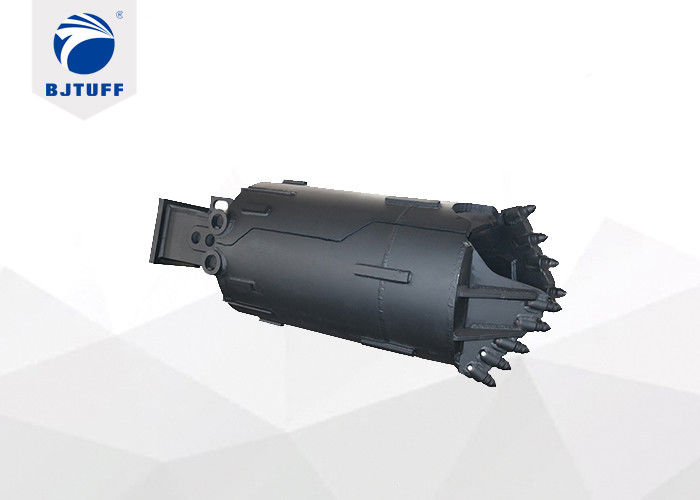

Hydraulic Piling Rig Tools Open Type Drilling Bucket With Rock Drilling Bits
Feature
1. Super strength structure for shell,guide plate etc, increase the life cycle of bucket; Guide strips
2. arranged on the surface of bucket can avoid drilling tool sucked by the pressure；
3. Applicable layers: clay , silt , highly weathered rock；
4. Large inlet of soil ,open shell design, easy to dump spoil so increases the drilling efficiency；
Customizable Items
1. Cutting DIA. Custom : design various cutting diameter based on demand, like φ650,φ1250 etc.
2. Teeth Custom : equiped different teeth, like bullet teeth, flat teeth according to different working condition;
3. Kelly Box Custom : custom kelly box size based on the kelly bar, like 160*160, 170*170,190*190 etc;
| Cutting Dia. | Shell HIT. | Shell OD. | Shell THK. |
Stiffening Ring THK. |
Stiffening Ring HIT. |
Teeth No. | Weight |
| φ600 | 1000 | 520 | 30 | 40 | 300 | 7 | 815 |
| φ800 | 1200 | 720 | 30 | 40 | 300 | 9 | 1248 |
| φ900 | 1200 | 820 | 30 | 40 | 300 | 10 | 1520 |
| φ1000 | 1200 | 920 | 30 | 40 | 300 | 11 | 1710 |
| φ1200 | 1200 | 1120 | 30 | 40 | 300 | 13 | 2150 |
| Remark : All measurements are in millimeters, weight in kilograms. | |||||||
