| Place of Origin: | CHINA |
|---|---|
| Brand Name: | BJTUFF |
| Model Number: | 1600mm |
| Minimum Order Quantity: | 1 Piece |
| Price: | Negotiated |
| Packaging Details: | Plastic cases . |
| Delivery Time: | 5-8 work days |
| Supply Ability: | 200 Pieces/30 days |
| Tools Kelly Box: | Sany--150 ,Bauer--200 | Process: | Coated Sand Casting |
|---|---|---|---|
| Product Name: | Drilling Bucxlet | Color: | Black Or As Required |
| Material: | MN-Q345B | Place Of Origin: | Hebei,China |
| High Light: | 1600mm Open Type Drill Bucket,MN Q345B Open Type Drill Bucket,160cm Rock Teeth Drill Bucket |
||

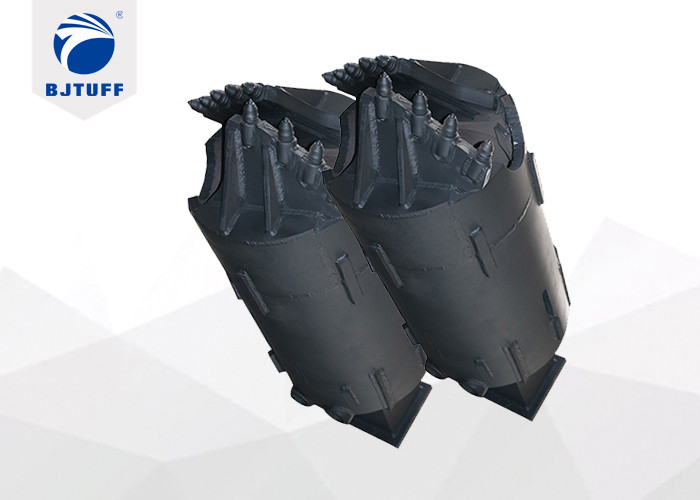

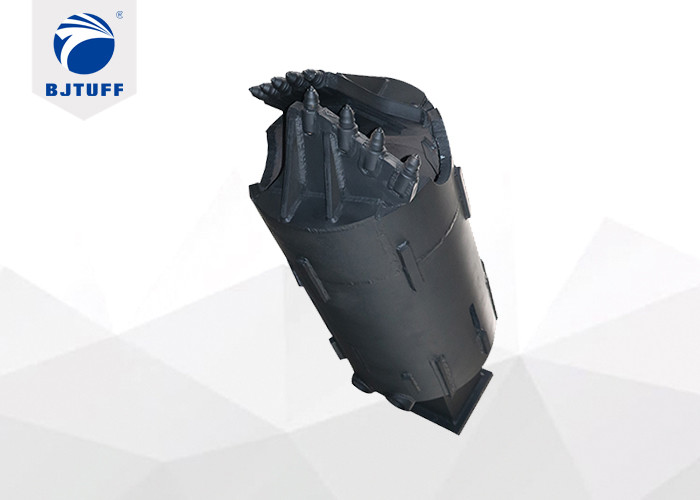

Rotary Rig Tools Open Type Drilling Bucket With Rock Teeth For Pile Drilling
Feature
1. Large inlet of soil ,open shell design, easy to dump spoil so increases the drilling efficiency；
2. Super strength structure for shell,guide plate etc, increase the life cycle of bucket; Guide strips
3. arranged on the surface of bucket can avoid drilling tool sucked by the pressure；
4. Applicable layers: clay , silt , highly weathered rock；
Customizable Items
1. Cutting DIA. Custom : design various cutting diameter based on demand, like φ450,φ780 etc.
2. Teeth Custom : equiped different teeth, like bullet teeth, flat teeth according to different working condition;
3. Kelly Box Custom : custom kelly box size based on the kelly bar, like 140*140, 180*180,190*190 etc;
| Cutting Dia. | Shell HIT. | Shell OD. | Shell THK. |
Stiffening Ring THK. |
Stiffening Ring HIT. |
Teeth No. | Weight |
| φ600 | 1000 | 520 | 30 | 40 | 300 | 7 | 825 |
| φ800 | 1200 | 720 | 30 | 40 | 300 | 9 | 1233 |
| φ900 | 1200 | 820 | 30 | 40 | 300 | 10 | 1511 |
| φ1000 | 1200 | 920 | 30 | 40 | 300 | 11 | 1722 |
| φ1200 | 1200 | 1120 | 30 | 40 | 300 | 13 | 2144 |
| Remark : All measurements are in millimeters, weight in kilograms. | |||||||
