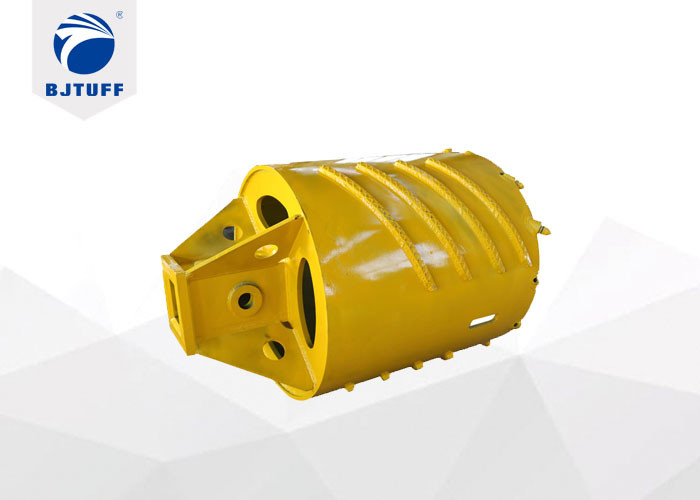

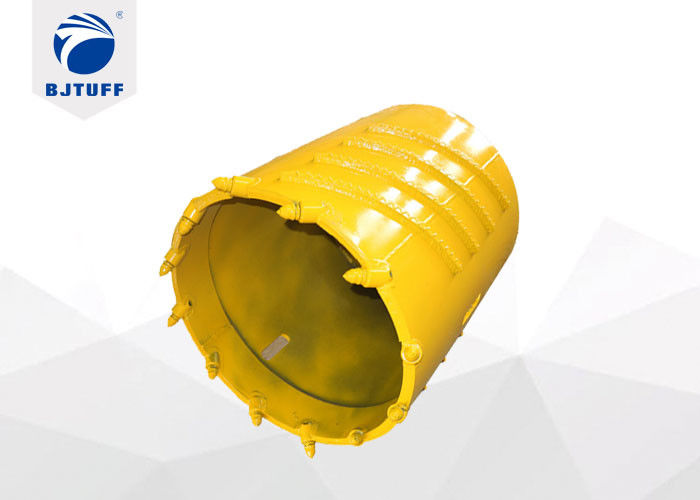

Concrete Core Barrel Bucket With Rock Drilling Teeth For Rotary Drill Rig

Concrete Core Barrel Bucket With Rock Drilling Teeth For Rotary Drill Rig



Application:

1.When rotating, the drill core of the core rock drill has several different cutting angles that are matched with each other, and it is repeatedly broken and knocked at the position of the ring groove in the hole.

2.Fractured rocks and hard rocks that the hardness is less than 80 MPa, relatively hard bedrock formations, large boulder layers and hard permafrost layers.

3.Apply to obvious layered medium weathered sandstone (high probability of coring) hard rock cutting.

4.In higher compactness of soil or part of the soft rock strata,slippage due to selection of friction Kelly bar,can try to use core barrel.



Feature

1.Cutting ring with rock drilling bits and releases the internal stress of rock;

2.Rock drilling bits perform stage breaking and drilling;

3.Small barrel facilitates the coring operation, large barrel performs stage breaking;

4.Barrel adopts spiral wear resistant strips ,anti-attrition,prolong service life.

5.Heightening design,high construction efficiency ,efficiency reduce construction cost.

6.Adopts wear resistant block between teeth holders due to protect teeth holder and stiffening ring from serious wearing .



Model List:

Cutting Dia.	Shell HIT.	Shell OD.	Shell THK.	Stiffening Ring THK.	Stiffening Ring HIT.	Teeth No.	Weight
φ600	1200	520	16	20	200	6	520
φ800	1200	720	16	20	200	9	672
φ900	1200	820	16	20	200	10	750
φ1000	1200	920	16	20	200	11	847
φ1200	1200	1120	16	20	200	13	1010
φ1500	1200	1420	16	20	200	16	1370
φ1600	1200	1520	16	20	200	17	1493
φ1800	1000	1720	20	20	200	19	1841
φ2000	800	1920	20	20	200	21	1852
φ2200	800	2120	20	20	200	23	2329
φ2500	800	2420	20	20	200	27	2705
φ2800	800	2720	20	20	200	30	3200
φ3000	800	2920	20	20	200	32	3800
Remark : All measurements are in millimeters, weight in kilograms.





Customizable Items:

1.Cutting DIA. Custom : design various cutting diameter based on demand, like φ950,φ1050 etc.

2.Shell HIT. Custom : design as demand, prolong or shorten, increase of efficiency by drilling more.

3.Key Component Reinforce Custom : strengthen the key component to extend life cycle;

4.Kelly Box Custom: custom Kelly box size based on the Kelly bar, like 130*130, 150*150,200*200 etc;

5.Teeth No. Custom : encrypt the drilling teeth based on demand etc;



Product advantage:

1-We purchase top quality raw materials from leading raw-steel factory.

2-Our drilling tools can be customized depending on kinds of rigs and site conditions.

3-We require high quality of welding, therefore we employ at least 8 years experienced welders.

4-Advanced welding and design ensure the products longer working life, which helps the client to reduce construction budget.

Understand what customers need and provide what customers want, We provide one-stop solution for the world’s foundation construction users. While providing customized quality products, our services will leave you with no worries. We boast a group of experienced foundation construction experts and consultants, who not only recommend the use of suitable products based on customer needs, but also give reasonable advice on the operation of construction equipment and construction methods.



FAQ:

Q1.What does your company produce?

The main products of our company include drilling tools,drilling teeth,casing series,kelly bar accessories and ect.



Q2.How do you control the quality of your products?

First,we use good steel GB-Q345B.Our welding stick is flux-cored wire that applied to ship engineering.

Second, We strictly control the process,so If the quality of the product itself has the problem of open welding, we will give compensation;

Third, we promise good quality and after-sales service.



Q3.Can you supply after-sales service?
Of course, Customers could contact our sales managers on line/by email/by phone if there are any question during installation or construction, solutions will be given within 12 hours.
