Place of Origin: | CHINA |
---|---|
Brand Name: | BJTUFF |
Model Number: | 600mm-3000mm |
Minimum Order Quantity: | 1 Piece |
Price: | Negotiated |
Packaging Details: | Plastic cases |
Delivery Time: | 5-8 work days |
Supply Ability: | 200 Pieces/30 days |
Material: | GB-Q355B | Application: | Rotary Drilling Rig |
---|---|---|---|
Process: | Forging And Welding | Product Name: | Core Barrel With Bullet Teeth |
Color: | Black Or As Required | Certification: | ISO |
High Light: | 1050mm Core Barrel For Bauer,Bullet Teeth Core Barrel For Bauer,Bullet Teeth Core Barrel For Soilmec |

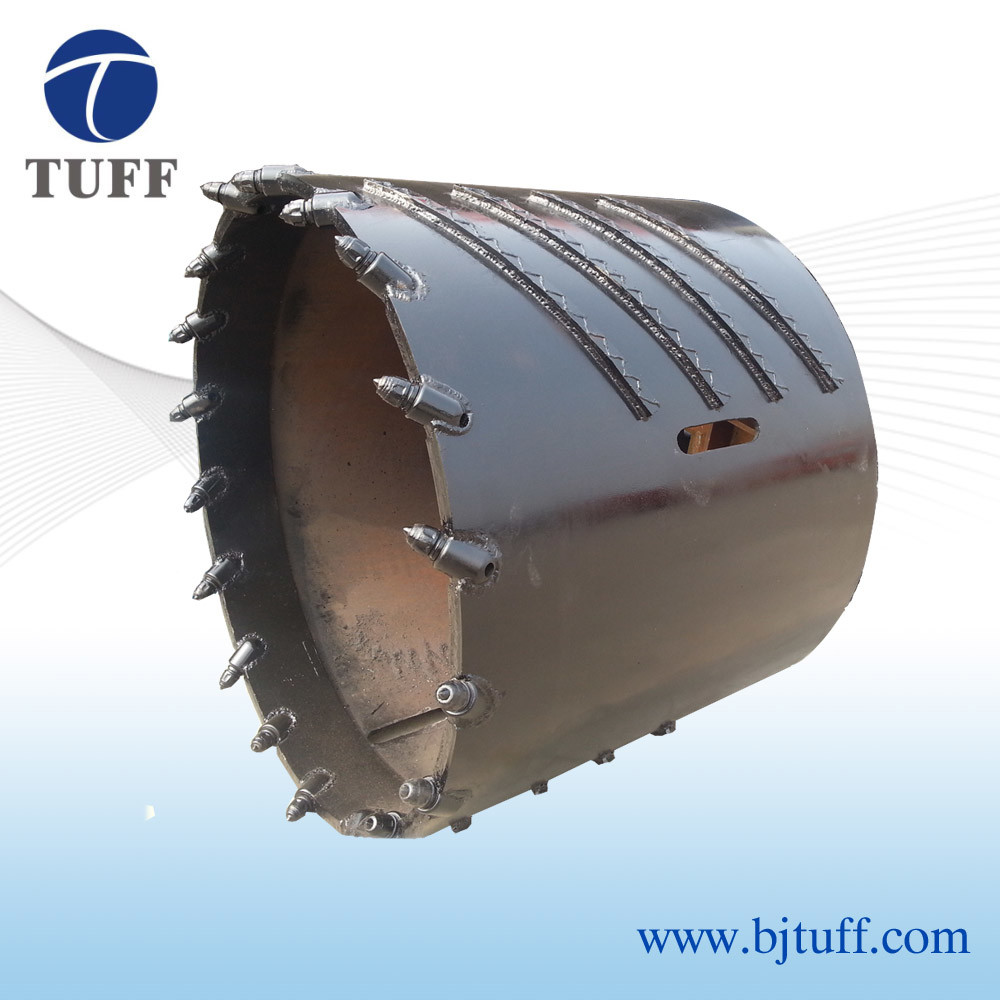

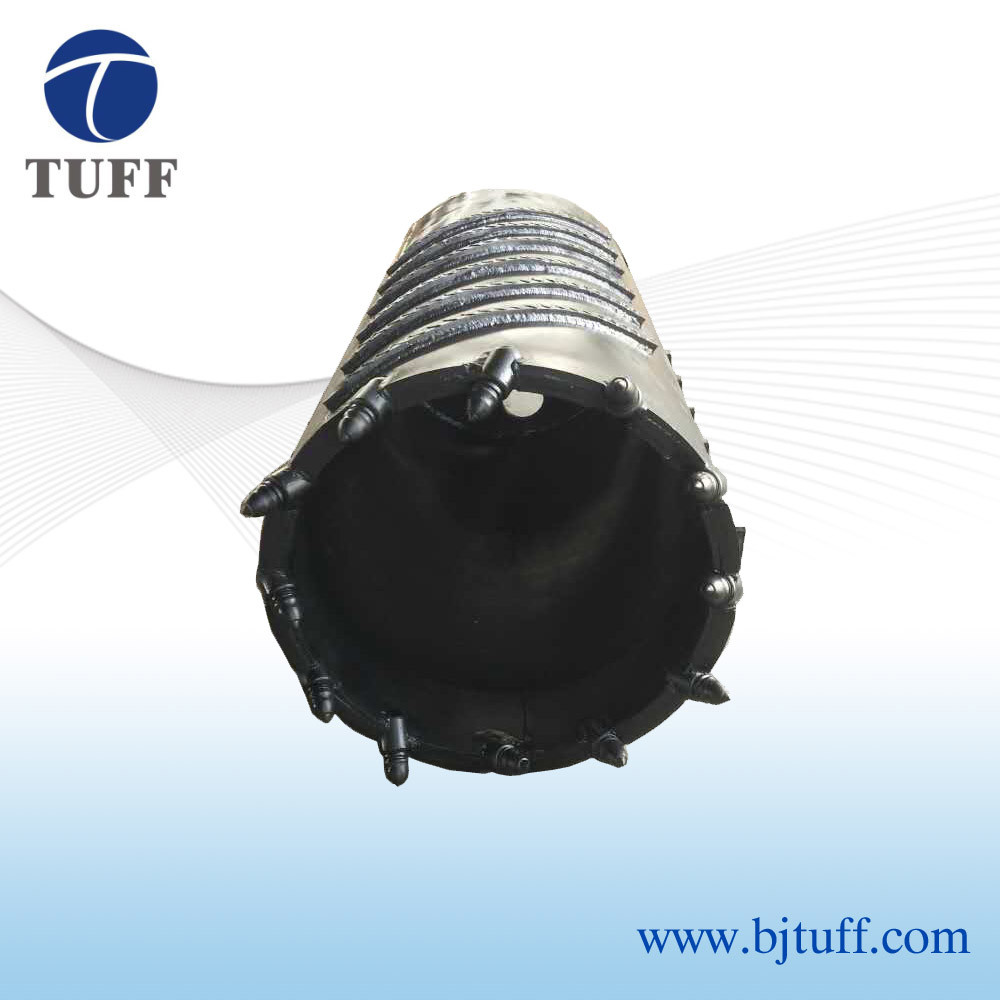

Bullet Teeth Core Barrel For Rotary Drilling Rig And Suitable For Bauer, Soilmec, Mait,Liebherr, Casagrande, IMT, Sany, XCMG, Zoomlion, Sunward etc.
Feature
1. Cutting ring with rock drilling bits and releases the internal stress of rock;
2. Drilling with the method of rolling and squeezing can increases the anti-wear ability of the barrel;
3. Small barrel facilitates the coring operation; large barrel performs stage breaking;
4. Applicable layers: medium or slightly weathered rock, hard or super-hard bedrock;
Customizable Items
1. Cutting DIA. Custom : design various cutting diameter based on demand, like φ950,φ1050 etc.
2. Shell HIT. Custom : design as demand, prolong or shorten, increase of efficiency by drilling more.
3. Key Component Reinforce Custom : strengthen the key component to extend life cycle;
4. Kelly Box Custom: custom Kelly box size based on the Kelly bar, like 130*130, 150*150,200*200 etc;
5. Teeth No. Custom : encrypt the drilling teeth based on demand etc;
Application
Applicable for very strong rock formations with compressive strength greater than 100MPa. Can be matched with all type of rotary drill rig. Like Bauer, Soilmec, Mait,Liebherr, casagrande, IMT, Sany, XCMG, Zoomlion, Sunward etc.
Core barrels are used to cut an annular ring in rock or concrete or reinforced concrete. The centre core of the rock or concrete is usually crushed with rock auger. The most important advantage of a core barrel is that it assists to concentrate the torque and crowd force on a small ring of cutting teeth.
Cutting Dia. | Outer Shell HIT. |
Inner ShellHIT. | Shell THK.. | Teeth No. | Weight |
φ1000 | 1200 | 1200 | 16 | 17 | 1200 |
φ1200 | 1200 | 1200 | 16 | 20 | 1400 |
φ1500 | 1200 | 1200 | 16 | 24 | 1900 |
φ1600 | 1200 | 1200 | 16 | 27 | 2050 |
φ1800 | 1000 | 1000 | 20 | 29 | 2500 |
φ2000 | 800 | 800 | 20 | 33 | 2500 |
Remark : All measurements are in milimeters, weight in kilograms. |
