| Place of Origin: | Hebei, China |
|---|---|
| Brand Name: | BJTUFF |
| Certification: | ISO9001 |
| Model Number: | 400-3000mm or as required |
| Minimum Order Quantity: | 1 Piece |
| Price: | Negotiated |
| Packaging Details: | Wood case outside, plastic cases inside. |
| Delivery Time: | 3-5 days after payment |
| Payment Terms: | L/C, D/A, D/P, T/T |
| Supply Ability: | 200 Unit/Units per Month |
| Name: | Cleaning Bucket | Drilling Diameter: | 300-3000mm Or As Required |
|---|---|---|---|
| Color: | Black Or Per Your Request | OEM: | Available |
| Usage: | Drilling Rig Machinery | After Warranty Service:: | Video Technical Support, Online Support, Spare Parts, Field Mainten |
| Bearing Material:: | 40Cr | Wear Resist Strips:: | Hardox400 |
| High Light: | Double Cutter Cleaning Drilling Bucket,Double Bottom Cleaning Drilling Bucket,40Cr Straight Drilling Bucket |
||

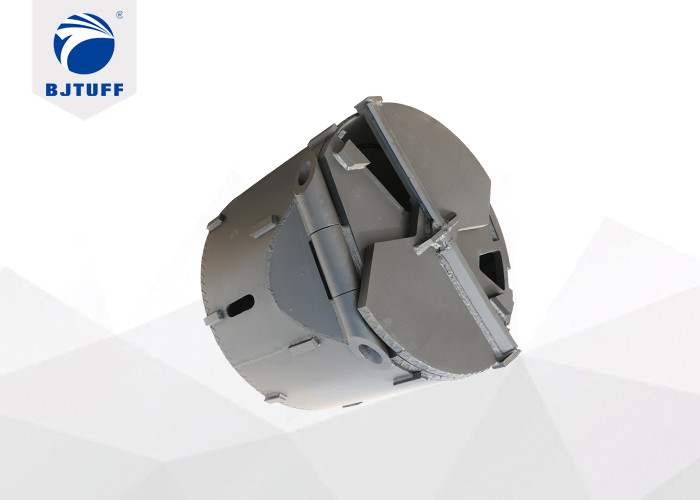

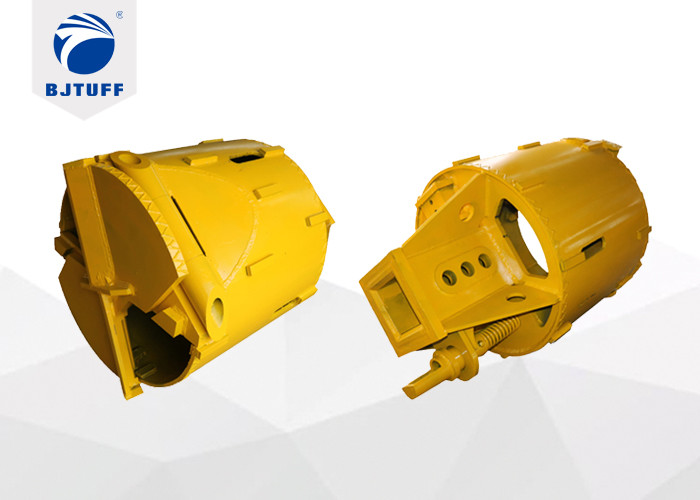

Piling Tools Double Bottom Double Cutter Straight Clean Drill Bucket
Application:
Cleaning spoil at pile bottom, soft layer；
Feature
1. Choose conical or straight bucket according to different working conditions；
2. Choose straight guide plate or no guide plate according to different working conditions;
3. High-quality raw materials and high steel strength.
4. Simple operation.
5. High wear resistance.
6. Good roundness of the cylinder.
Model List:
|
Cleaning Dia. |
Shell HIT. | Shell OD. | Shell THK. |
Fixed Bottom THK. |
Rotate Bottom THK. |
Weight |
| φ600 | 800 | 500 | 16 | 40 | 40 | 500 |
| φ800 | 800 | 700 | 16 | 40 | 40 | 780 |
| φ1000 | 800 | 900 | 16 | 40 | 50 | 980 |
| φ1200 | 800 | 1100 | 16 | 40 | 50 | 1270 |
| φ1500 | 600 | 1400 | 16 | 40 | 50 | 1570 |
| φ1600 | 600 | 1500 | 16 | 40 | 50 | 1900 |
| φ1800 | 600 | 1700 | 16 | 50 | 50 | 2480 |
| φ2000 | 600 | 1900 | 20 | 50 | 50 | 3000 |
| φ2200 | 600 | 2100 | 20 | 50 | 50 | 3570 |
| φ2500 | 600 | 2400 | 20 | 50 | 50 | 4680 |
| φ2800 | 600 | 2700 | 20 | 50 | 50 | 5330 |
| φ3000 | 600 | 2900 | 20 | 50 | 50 | 6125 |
| Remark : All measurements are in milimeters, weight in kilograms. | ||||||
Customizable Items:
1. Cutting DIA. Custom : design various cutting diameter based on demand, like φ950,φ1050 etc.
2. Shell HIT. Custom : prolong to increase of efficiency by drilling more.
3. Bottom Custom : single bottom and double bottom design ;
4. Kelly Box Custom : custom Kelly box size based on the Kelly bar, like 130*130, 150*150,200*200 etc;
5. Bottom Open Mechanic : half-automatic or manful mechanic bottom open system.
Company advantage:
1- We purchase top quality raw materials from leading raw-steel factory.
2- Our drilling tools can be customized depending on kinds of rigs and site conditions.
3- We require high quality of welding, therefore we employ at least 8 years experienced welders.
4- Understand what customers need and provide what customers want, We provide one-stop solution for the world’s foundation construction users.
FAQ:
Q1. What does your company produce?
The main products of our company include drilling tools,drilling teeth,casing series,kelly bar accessories and ect.
Q2: How do you improve the using life of your drilling tools?
First, we follow the Bauer standard to align the drilling bits as an arc shape to minimize the resistance.
Second, We use high-end series bullet teeth with the USA imported tungsten carbide, its using life is 2-3 times than normal teeth.
Third, by adding the reinforcing steel edge for hard formation, it reduced the wall resistance.
Fourth, Central axis adopts 40Cr with heat treatment, Vickers hardness could reach 28 and increase 50% wear resistance.
