| Place of Origin: | Hebei, China |
|---|---|
| Brand Name: | BJTUFF |
| Certification: | ISO9001 |
| Model Number: | 400-3000mm or as required |
| Minimum Order Quantity: | 1 Piece |
| Price: | Negotiated |
| Packaging Details: | Wood case outside, plastic cases inside. |
| Delivery Time: | 3-5 days after payment |
| Payment Terms: | L/C, D/A, D/P, T/T |
| Supply Ability: | 200 Unit/Units per Month |
| Name: | Cleaning Bucket | Drilling Diameter: | 300-3000mm Or As Required |
|---|---|---|---|
| OEM: | Available | Usage: | Drilling Rig Machinery |
| Type: | Drill Bucket | After Warranty Service:: | Video Technical Support, Online Support, Spare Parts, Field Mainten |
| MOQ:: | 1 Pcs | Packing: | Standard Exporting Packing Or As To Your Needs |
| High Light: | 3000mm Cleanup Drilling Bucket,400mm Cleanup Drilling Bucket,Single Cutter Conical Rock Bucket |
||

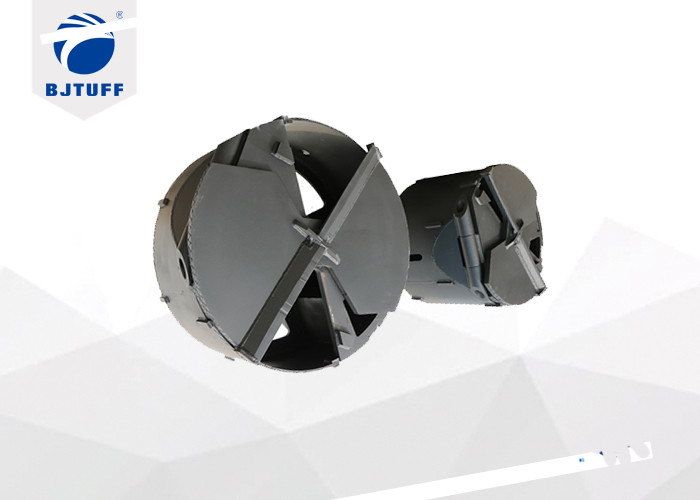

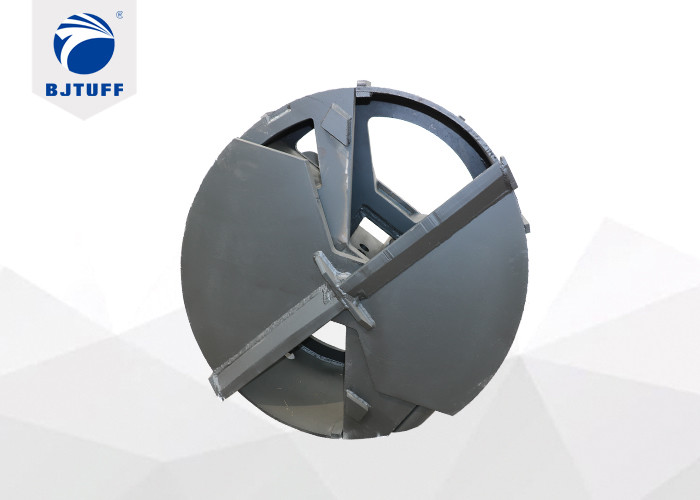

Piling Tools Single Cutter Conical Rock Cleanup Drilling Bucket
Application Scope:
Cleaning spoil at pile bottom, soft layer.
For use in cleaning material from the hole that augers cannot retrieve. The operator simply put the tool into the hole with the door open, lower to the bottom of the hole making only a few revolutions before placing the machine in reverse to close the door.
Feature
1. Choose conical or straight bucket according to different working conditions；
2. Choose straight guide plate or no guide plate according to different working conditions;
3 Hard facing strips for wear protection.
4 Vairous Kelly box 130mm,150mm,200mm and etc. (optional).
5. High-quality raw materials and high steel strength.
6. Can be customized depending on kinds of rigs and site conditions.
Model List:
|
Cleaning Dia. |
Shell HIT. | Shell OD. | Shell THK. |
Fixed Bottom THK. |
Rotate Bottom THK. |
Teeth No. | Weight |
| φ600 | 800 | 500 | 16 | 40 | 40 | / | 500 |
| φ800 | 800 | 700 | 16 | 40 | 40 | / | 780 |
| φ900 | 800 | 800 | 16 | 40 | 40 | / | 860 |
| φ1000 | 800 | 900 | 16 | 40 | 50 | / | 980 |
| φ1200 | 800 | 1100 | 16 | 40 | 50 | / | 1270 |
| φ1500 | 600 | 1400 | 16 | 40 | 50 | / | 1570 |
| φ2000 | 600 | 1900 | 20 | 50 | 50 | / | 3000 |
| φ2200 | 600 | 2100 | 20 | 50 | 50 | / | 3570 |
| φ2500 | 600 | 2400 | 20 | 50 | 50 | / | 4680 |
| φ2800 | 600 | 2700 | 20 | 50 | 50 | / | 5330 |
| φ3000 | 600 | 2900 | 20 | 50 | 50 | / | 6125 |
| Remark : All measurements are in milimeters, weight in kilograms. | |||||||
Customizable Items:
1. Cutting DIA. Custom : design various cutting diameter based on demand, like φ950,φ1050 etc.
2. Shell HIT. Custom : design as demand, prolong or shorten, increase of efficiency by drilling more.
3. Bottom Custom : single bottom and double bottom design as demand;
4. Cutter Custom:single bottom and double bottom design as demand.
5. Bottom Open Mechanic : half-automatic or manful mechanic bottom open system.
Company advantage:
1- We purchase top quality raw materials from leading raw-steel factory.
2- Our drilling tools can be customized depending on kinds of rigs and site conditions.
3- We require high quality of welding, therefore we employ at least 8 years experienced welders.
4- Understand what customers need and provide what customers want, We provide one-stop solution for the world’s foundation construction users.
FAQ:
Q1. What does your company produce?
We are the professional manufacturer for drilling tools,drilling teeth,casing series,kelly bar and ect.
Q2. How do you control the quality of your products?
First,we use good steel .Our welding stick is flux-cored wire that applied to ship engineering.
Second,we follow the Bauer standard to align the drilling bits as an arc shape to minimize the resistance.
Third, We strictly control the process,so If the quality of the product itself has the problem of open welding, we will give compensation;
At last, Customers could contact our sales managers on line/by email/by phone if there are any question during installation or construction, solutions will be given within 12 hours.
