| Place of Origin: | CHINA |
|---|---|
| Brand Name: | BJTUFF |
| Model Number: | 600mm-3000mm |
| Minimum Order Quantity: | 1 Piece |
| Price: | Negotiated |
| Packaging Details: | Plastic cases |
| Delivery Time: | 5-8 work days |
| Supply Ability: | 200 Pieces/30 days |
| Material: | GB-Q355B | Application: | Rotary Drilling Rig |
|---|---|---|---|
| Process: | Forging And Welding | Product Name: | Core Barrel With Bullet Teeth |
| Color: | Black Or As Required | Certification: | ISO |
| High Light: | Dia 950mm Bullet Teeth Core Barrel,OEM Bullet Teeth Core Barrel,Core Barrel For Casagrande |
||

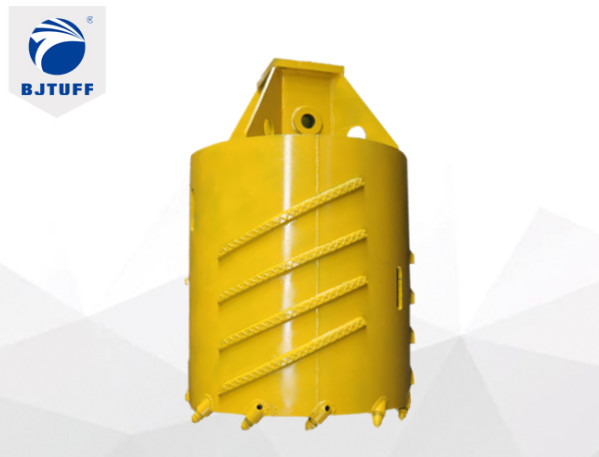

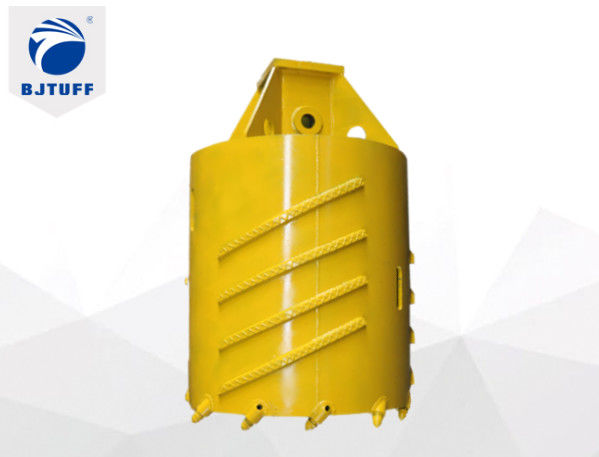

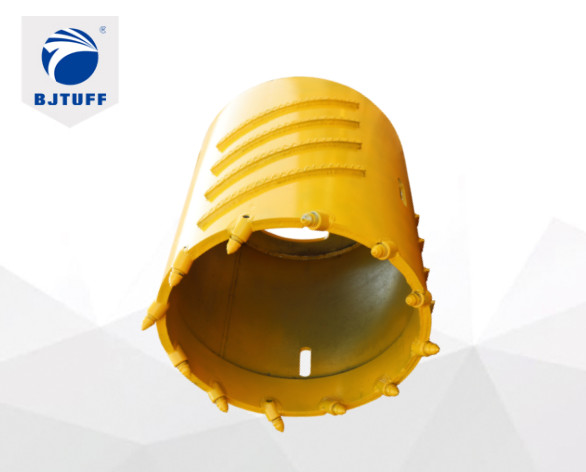

Bullet Teeth Core Barrel For Rotary Drilling Rig And Suitable For Bauer, Soilmec, Mait,Liebherr, Casagrande, IMT, Sany, XCMG, Zoomlion, Sunward ETC.Rotary Rig Foundation Spare Parts
Customizable Items
1. Cutting DIA. Custom : design various cutting diameter based on demand, like φ950,φ1050 etc.
2. Shell HIT. Custom : design as demand, prolong or shorten, increase of efficiency by drilling more.
3. Key Component Reinforce Custom : strengthen the key component to extend life cycle;
4. Kelly Box Custom: custom Kelly box size based on the Kelly bar, like 130*130, 150*150,200*200 etc;
5. Teeth No. Custom : encrypt the drilling teeth based on demand etc
Feature
1. Cutting ring with staggered arrangement for round shank chisels；
2. Chisel holders are welded to the base body. The round shank chisels can be easily replaced;
3. Small barrel facilitates the coring operation; large barrel performs stage breaking;
4. Applicable layers: backfill layer, medium weathered rock, bedrock；
Application
Core barrels are used to cut an annular ring in rock or concrete or reinforced concrete. The centre core of the rock or concrete is usually crushed with rock auger. The most important advantage of a core barrel is that it assists to concentrate the torque and crowd force on a small ring of cutting teeth.
| Cutting Dia. | Shell HIT. | Shell THK. | Stiffening Ring THK. | Teeth No. | Weight |
| Φ600 | 1200 | 20 | 20 | 9 | 583 |
| Φ700 | 1200 | 20 | 20 | 9 | 691 |
| Φ800 | 1200 | 20 | 20 | 12 | 786 |
| Φ900 | 1200 | 20 | 20 | 12 | 923 |
| φ1000 | 1200 | 20 | 20 | 15 | 1026 |
| φ1100 | 1200 | 20 | 20 | 15 | 1140 |
| φ1200 | 1200 | 20 | 20 | 18 | 1250 |
| φ1300 | 1200 | 20 | 20 | 18 | 1385 |
| φ1400 | 1200 | 20 | 20 | 21 | 1461 |
| φ1500 | 1200 | 20 | 20 | 21 | 1644 |
| φ1800 | 1000 | 20 | 20 | 27 | 1913 |
| φ2000 | 800 | 20 | 20 | 30 | 1979 |
| Φ2200 | 800 | 20 | 20 | 33 | 2279 |
| Φ2500 | 800 | 25 | 20 | 39 | 2889 |
| Remark : All measurements are in milimeters, weight in kilograms. | |||||
FAQ
Q: What's the nature of your company?
We are Manufacturer. We have factories all over China, all products posted are produced by ourselves, so we can offer you competitive price while ensuring product quality.
Q: How do you ship your products?
Our goods can be transported by air and sea or per your request.
Q: Does this product support customization?
Yes, due to the fact that we have our own factories, We can customize products per your request.
Q: How long is your delivery time?
Generally it is 5-10 days if the goods are in stock. Or it is 15-20 days if the goods are not in stock, it is according to quantity.
