Focus On Heart, Lasting On Action
| Place of Origin: | CHINA |
|---|---|
| Brand Name: | BJTUFF |
| Model Number: | 600mm-3000mm |
| Minimum Order Quantity: | 1 Piece |
| Price: | Negotiated |
| Packaging Details: | Plastic cases |
| Delivery Time: | 5-8 work days |
| Supply Ability: | 200 Pieces/30 days |
| Material: | GB-Q355B | Application: | Rotary Drilling Rig |
|---|---|---|---|
| Process: | Forging And Welding | Product Name: | Drilling Bucket With Rock Drilling Teeth |
| Color: | Black Or As Required | Certification: | ISO |
| High Light: | 15 Bullet Teeth Drilling Bucket,1300mm Drilling Bucket,Double Unlocking System Drilling Bucket |
||

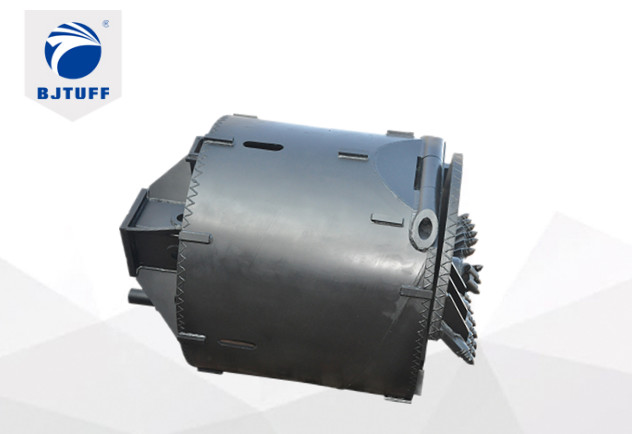

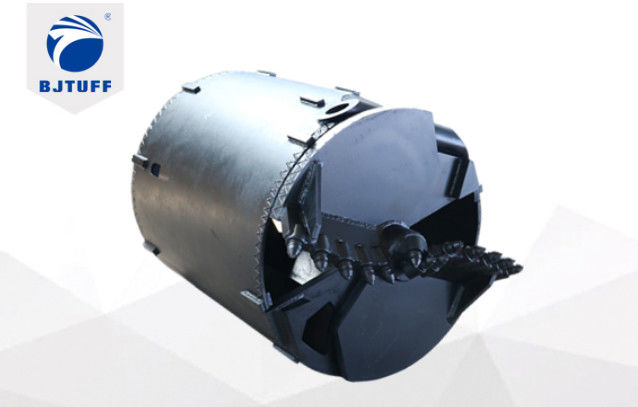

Hard Rock Drilling Bucket with bullet teeth Double Unlocking system For Construction
Product advantage:
Wear resisting strips on the drilling tool help to minimize the wearing out of body of the drilling tools.
Feature
3. Cast pilot with rock drilling bits, arc guide plate teeth arrangement, double unlocking system.
4. Ventilation plate can avoid bucket stuck by vacuum space under the bucket bottom.
5. Staggered arrangement of rock drilling bits.
5. Applicable layers: gravel, pebble, highly or medium weathered rock;
Customizable Items
1. Cutting DIA. Custom : design various cutting diameter based on demand, like φ850,φ1150 etc.
2. Shell HIT. Custom : design as demand, prolong or shorten, increase of efficiency by drilling more.
3. Key Component Reinforce Custom : strengthen the key component to extend life cycle;
4. Kelly Box Custom: custom Kelly box size based on the Kelly bar, like 130*130, 150*150,200*200 etc;
Application
1. Very dense sand and gravel, rock and up to coarse gravel.
2. Double cut rock bucket is recommended in uncased bores or for bigger diameters and for secant pile walls.
| Cutting Dia. | Shell HIT. | Shell THK. | Fixed Bottom THK. | Rotate Bottom THK. | Teeth No. | Weight |
| Φ600 | 1200 | 20 | 40 | 40 | 6 | 724 |
| Φ700 | 1200 | 20 | 40 | 40 | 7 | 854 |
| Φ800 | 1200 | 20 | 40 | 50 | 9 | 1005 |
| Φ900 | 1200 | 20 | 40 | 50 | 10 | 1228 |
| φ1000 | 1200 | 20 | 40 | 50 | 11 | 1390 |
| φ1100 | 1200 | 20 | 40 | 50 | 12 | 1562 |
| φ1200 | 1200 | 20 | 40 | 50 | 13 | 1755 |
| φ1300 | 1200 | 20 | 40 | 50 | 15 | 1927 |
| φ1400 | 1200 | 20 | 40 | 50 | 15 | 2182 |
| φ1500 | 1200 | 20 | 40 | 50 | 16 | 2379 |
| φ1800 | 1000 | 20 | 50 | 50 | 17 | 3342 |
| φ2000 | 800 | 20 | 50 | 50 | 18 | 3923 |
| Φ2200 | 800 | 20 | 50 | 50 | 21 | 4543 |
| Φ2500 | 800 | 25 | 50 | 50 | 24 | 5870 |
| Φ2800 | 800 | 25 | 50 | 50 | 27 | 6830 |
| Φ3000 | 800 | 30 | 50 | 50 | 39 | 8610 |
| Remark : All measurements are in milimeters, weight in kilograms. | ||||||
FAQ
Q: What is the advantages of our products?
We are Factory. We use super quality raw material, which makes the drilling tools more durable and our drilling tools with competitive
price. No matter you are dealers or end user, you will get the biggest profit.
Q: What does your company make?
The main products of our company include drilling bucket, core barrel, auger, casing series, kelly bar, kelly bar accessories, soil teeth, roller bits, pilot bits, bullet teeth.
Q: How do you ship your products?
Our goods can be transported by air and sea or per your request.
Q: Does this product support customization?
Yes, due to the fact that we have our own factories, We can customize products per your request.
Q: How long is your delivery time?
Generally it is 5-10 days if the goods are in stock. Or it is 15-20 days if the goods are not in stock, it is according to quantity.
