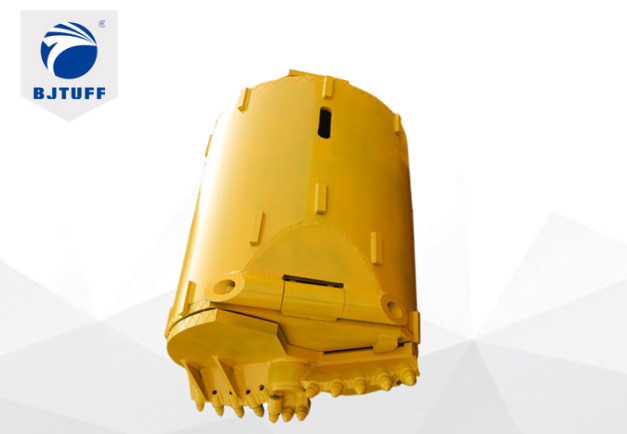

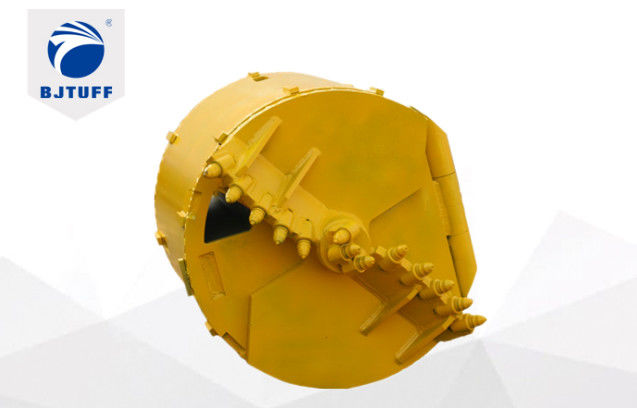

Hard Rock Drilling Bucket Bullet Teeth For Drilling Rig For Heavy Machinery.
Product advantage:
Feature
3. Cast pilot with rock drilling bits, arc guide plate teeth arrangement, double unlocking system.
4. Throughout ventilation hole.
5. Hard facing strips for wear protection.
5. Applicable layers: gravel, pebble, highly or medium weathered rock;
Customizable Items
1. Cutting DIA. Custom : design various cutting diameter based on demand, like φ850,φ1150 etc.
2. Shell HIT. Custom : design as demand, prolong or shorten, increase of efficiency by drilling more.
3. Key Component Reinforce Custom : strengthen the key component to extend life cycle;
4. Kelly Box Custom: custom Kelly box size based on the Kelly bar, like 130*130, 150*150,200*200 etc;
Application
1. Very dense sand and gravel, rock and up to coarse gravel.
2. Double cut rock bucket is recommended in uncased bores or for bigger diameters and for secant pile walls.
| Cutting Dia. | Shell HIT. | Shell THK. | Fixed Bottom THK. | Rotate Bottom THK. | Teeth No. | Weight |
| Φ600 | 1200 | 20 | 40 | 40 | 6 | 724 |
| Φ700 | 1200 | 20 | 40 | 40 | 7 | 854 |
| Φ800 | 1200 | 20 | 40 | 50 | 9 | 1005 |
| Φ900 | 1200 | 20 | 40 | 50 | 10 | 1228 |
| φ1000 | 1200 | 20 | 40 | 50 | 11 | 1390 |
| φ1100 | 1200 | 20 | 40 | 50 | 12 | 1562 |
| φ1200 | 1200 | 20 | 40 | 50 | 13 | 1755 |
| φ1300 | 1200 | 20 | 40 | 50 | 15 | 1927 |
| φ1400 | 1200 | 20 | 40 | 50 | 15 | 2182 |
| φ1500 | 1200 | 20 | 40 | 50 | 16 | 2379 |
| φ1800 | 1000 | 20 | 50 | 50 | 17 | 3342 |
| φ2000 | 800 | 20 | 50 | 50 | 18 | 3923 |
| Φ2200 | 800 | 20 | 50 | 50 | 21 | 4543 |
| Φ2500 | 800 | 25 | 50 | 50 | 24 | 5870 |
| Φ2800 | 800 | 25 | 50 | 50 | 27 | 6830 |
| Φ3000 | 800 | 30 | 50 | 50 | 39 | 8610 |
| Remark : All measurements are in milimeters, weight in kilograms. | ||||||
FAQ
Q: What is the advantages of our products?
We are Factory. We use super quality raw material, which makes the drilling tools more durable and our drilling tools with competitive
price. No matter you are dealers or end user, you will get the biggest profit.
Q: What does your company make?
The main products of our company include drilling bucket, core barrel, auger, casing series, kelly bar, kelly bar accessories, soil teeth, roller bits, pilot bits, bullet teeth.
Q: Does this product support customization?
Yes, due to the fact that we have our own factories, We can customize products per your request.
Q: How long is your delivery time?
Generally it is 5-10 days if the goods are in stock. Or it is 15-20 days if the goods are not in stock, it is according to quantity.
