Focus On Heart, Lasting On Action
| Place of Origin: | China |
|---|---|
| Brand Name: | BJTUFF |
| Certification: | ISO9001 |
| Model Number: | 300-3000mm or as required |
| Minimum Order Quantity: | 1 Piece |
| Price: | Prices are determined by quantity and model of product |
| Packaging Details: | standard export packs -Wood case outside, plastic cases inside. |
| Delivery Time: | 3-5 days after payment |
| Payment Terms: | L/C, D/A, D/P, T/T |
| Supply Ability: | 300 Unit/Units per Month |
| Material: | 16Mn Or GB-Q355B | Color: | Black Or As Required |
|---|---|---|---|
| Kelly Box Size: | 200*200mm As Usual Or As Your Required | Application: | Rotary Drilling Rig |
| Product Name: | Conical Rock Auger | Type: | Rotary Drilling |
| Condition: | New | After-sales Service Provided: | Video Technical Support,Online Support |
| High Light: | BJTUFF Spiral Drilling Auger,15Mpa Drilling Auger,60Mpa Conical Rock Auger |
||

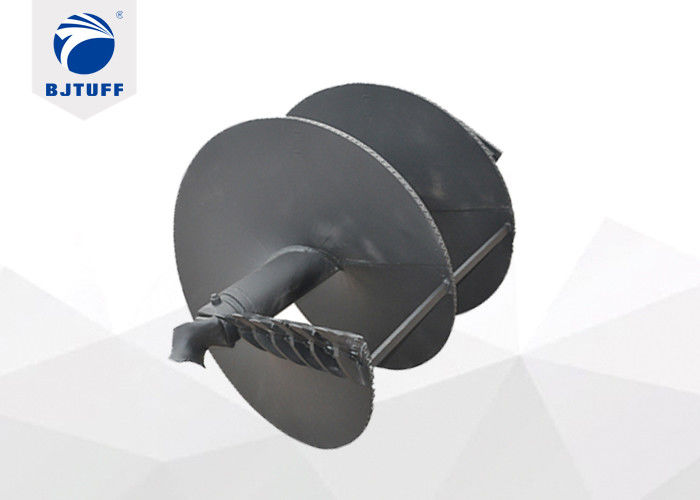

Drilling Tools Various Types Spiral Straight Soil Drilling Auger
Feature:
1. Design as straight type, better for carry soil ;
2. Double cutter bearing uniform force, can avoid inclined hole ;
3. Double spiral easy to carry soil, but meet cohesive soil, single spiral is easy to dump spoil;
| Cutting Dia. | Spiral HIT. | Spiral Pitch | Shell THK | Spiral OD. | Center Tube OD. | Teeth NO. | Weight |
| φ600 | 1100 | 600+400 | 20+30 | 550 | 219 | 6 | 535 |
| φ800 | 1500 | 600+400 | 20+30 | 750 | 245 | 6 | 750 |
| φ900 | 1500 | 600+500 | 20+30 | 850 | 245 | 8 | 820 |
| φ1000 | 1500 | 600 | 20+30 | 950 | 245 | 8 | 950 |
| φ1200 | 1500 | 600 | 30+30 | 1150 | 245 | 11 | 1050 |
| φ1500 | 1500 | 600 | 30+30 | 1450 | 273 | 12 | 1450 |
| φ1600 | 1500 | 600 | 30+30 | 1550 | 273 | 14 | 1650 |
| φ1800 | 1500 | 600 | 30+30 | 1750 | 273 | 18 | 1950 |
| φ2000 | 1500 | 600 | 40+40 | 1950 | 273 | 18 | 2300 |
| Remark:all measurements in millimeters (mm); weight in kilograms(kg); | |||||||
Auger types and appliaction:
1. Single cut / double cut concial rock auger :
Main Application:
Medium to strong rock (15-60Mpa);
Features:
Sturdy and wearable forging stwwk polit for accurate positioning;
Hard facipsstrips on flights for wear protection.
2. Single cut / double cut straight rock auger:
Main Application:
Very dense sand and gravel,weak rock (<5Mpa)
Features:
Sturdy and wearable forging stwwk polit for accurate positioning;
Hard facipsstrips on flights for wear protection.
3. Single cut / double cut straight soil auger:
Main Application:
Soft to stiff silt and clay ,loose to medium dense sand and gravel.
Features:
Fish-tail Pilot for accurate positioning;
Hard facipsstrips on flights for wear protection.
Customizable Items:
1. Cutting DIA. Custom : design various cutting diameter based on demand.
2. Spiral HIT. Custom : design as demand, prolonging the spiral height can increase of efficiency by drilling more.
3. Spiral Pitch Custom : adjust the spiral pitch according to different working condition;
4. Key Component Reinforce Custom : strengthen the key component to extend life cycle;
5. Teeth Custom : Equipped bullet teeth or flat teeth according to different working condition;

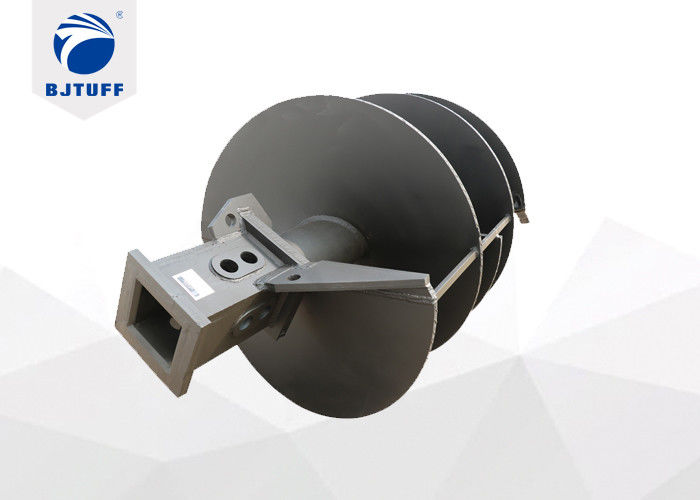

6. Kelly Box Custom : custom Kelly box size based on the Kelly bar, like 130*130, 150*150,200*200 etc;
Package:
Packaging details for BJTUFF open type bucket
1. 100% inspection before shipment.
2. Wrapped with plastic film.
3. Fixed with iron support.
4. Packed with plastic cases and wooden cases for drilling bits, clay teeth or other small accessories.
Company advantage:
Beijing Tuff Equipment and Technology CO.,LTD. ,research construction method and ability of kelly bar and driling tools ,offer one step solution for customers in foudations constrction field.
1- We purchase top quality raw materials from leading raw-steel factory.
2- Our drilling tools can be customized depending on kinds of rigs and site conditions.
3- We require high quality of welding, therefore we employ at least 8 years experienced welders.
