| Place of Origin: | China |
|---|---|
| Brand Name: | BJTUFF |
| Certification: | ISO9001 |
| Model Number: | 300-3000mm or as required |
| Minimum Order Quantity: | 1 Piece |
| Price: | Prices are determined by quantity and model of product |
| Packaging Details: | standard export packs -Wood case outside, plastic cases inside. |
| Delivery Time: | 3-5 days after payment |
| Payment Terms: | L/C, D/A, D/P, T/T |
| Supply Ability: | 300 Unit/Units per Month |
| Material: | 16Mn Or GB-Q355B | Teeth Series: | Flat Teeth |
|---|---|---|---|
| Color: | Black Or As Required | Kelly Box Size: | 200*200mm As Usual Or As Your Required |
| Product Name: | Straight Clay Auger | Suitable: | All Kinds Of Rotary Drilling Rig Machines |
| Type: | Rotary Drilling,Customized | Condition: | New |
| High Light: | 3000mm Drilling Auger,BJTUFF Drilling Auger,16Mn soil digging drill bit |
||

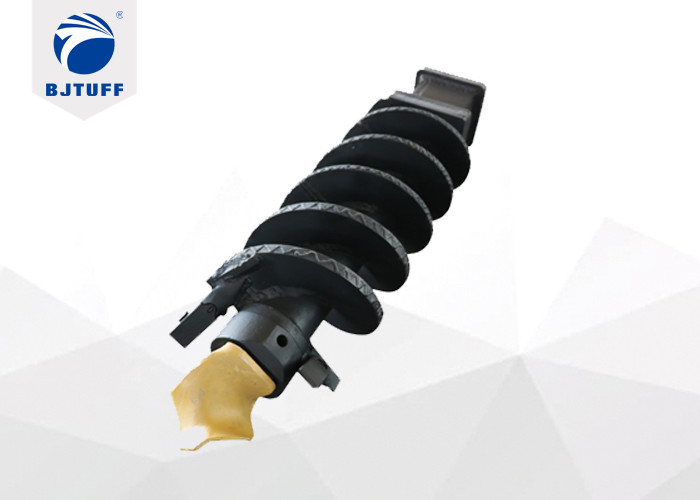

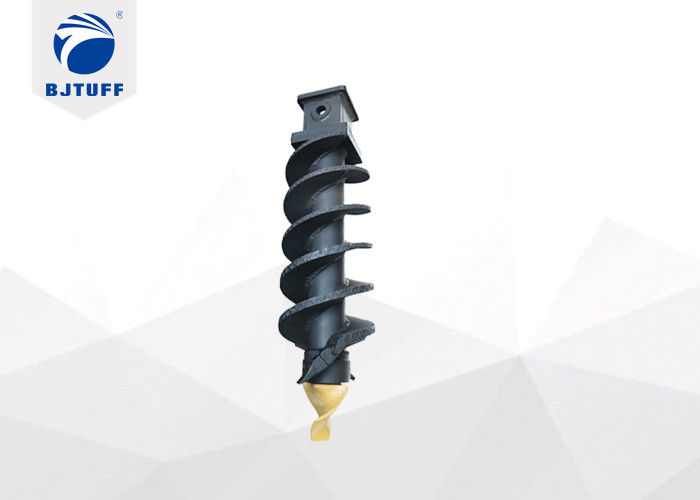

Double Start Double Spiral Straight Clay Drilling Auger With Flat Teeth
Auger types and appliaction:
1. Single cut concial rock auger and double cut concial rock auger :
Main Application:
Medium to strong rock (15-60Mpa);
Features:
Sturdy and wearable forging stwwk polit for accurate positioning;
Hard facipsstrips on flights for wear protection.
2. Single cut straight rock auger and double cut straight rock auger:
Main Application:
Very dense sand and gravel,weak rock (<5Mpa)
Features:
Sturdy and wearable forging stwwk polit for accurate positioning;
Hard facipsstrips on flights for wear protection.
3. Single cut straight soil auger and double cut straight soil auger:
Main Application:
Soft to stiff silt and clay ,loose to medium dense sand and gravel.
Features:
Fish-tail Pilot for accurate positioning;
Hard facipsstrips on flights for wear protection.
Feature:
1. Design as straight type, better for carry soil ;
2. Double cutter bearing uniform force, can avoid inclined hole ;
3. Double spiral easy to carry soil, but meet cohesive soil, single spiral is easy to dump spoil;
4. Applicable layers: clay, high-weathered layer, gravel etc.
| Cutting Dia. | Spiral HIT. | Spiral Pitch | Shell THK | Spiral OD. | Center Tube OD. | Teeth NO. | Weight |
| φ600 | 1100 | 600+400 | 20+30 | 550 | 219 | 6 | 535 |
| φ800 | 1500 | 600+400 | 20+30 | 750 | 245 | 6 | 750 |
| φ900 | 1500 | 600+500 | 20+30 | 850 | 245 | 8 | 820 |
| φ1000 | 1500 | 600 | 20+30 | 950 | 245 | 8 | 950 |
| φ1200 | 1500 | 600 | 30+30 | 1150 | 245 | 11 | 1050 |
| φ1500 | 1500 | 600 | 30+30 | 1450 | 273 | 12 | 1450 |
| φ1600 | 1500 | 600 | 30+30 | 1550 | 273 | 14 | 1650 |
| φ1800 | 1500 | 600 | 30+30 | 1750 | 273 | 18 | 1950 |
| φ2000 | 1500 | 600 | 40+40 | 1950 | 273 | 18 | 2300 |
| Remark:all measurements in millimeters (mm); weight in kilograms(kg); | |||||||
Package:
Packaging details for BJTUFF open type bucket
1. 100% inspection before shipment.
2. Wrapped with plastic film.
3. Fixed with iron support.
4. Packed with plastic cases and wooden cases for drilling bits, clay teeth or other small accessories.
5. As clients' requirements.
Company advantage:
1- We purchase top quality raw materials from leading raw-steel factory.
2- Our drilling tools can be customized depending on kinds of rigs and site conditions.
3- We require high quality of welding, therefore we employ at least 8 years experienced welders.
4- Understand what customers need and provide what customers want, We provide one-stop solution for the world’s foundation construction users.
FAQ:
Q1.What does your company produce?
The main products of our company include drilling tools,drilling teeth,casing series,kelly bar accessories and ect.
Q2.How do you control the quality of your products?
First,we use good steel GB-Q345B.Our welding stick is flux-cored wire that applied to ship engineering.
Second, We strictly control the process,so If the quality of the product itself has the problem of open welding, we will give compensation;
Third, Customers could contact our sales managers on line/by email/by phone if there are any question during installation or construction, solutions will be given within 12 hours.
Q3.Can the product be customized as required ?
Yes,of course.we can customize the goods as your required.and the customizable items are generally as blows:
1.Cutting DIA. Custom : design various cutting diameter based on demand, like φ950,φ1050 etc.
2.Spiral HIT. Custom : design as demand, prolong or shorten, increase of efficiency by drilling more.
3.Spiral Pitch Custom : adjust the spiral pitch according to different working condition;
4.Key Component Reinforce Custom : strengthen the key component to extend life cycle;
5.Teeth Custom : Equipped different teeth, like bullet teeth, flat teeth according to different working condition;
6.Kelly Box Custom : custom Kelly box size based on the Kelly bar, like 130*130, 150*150,200*200 etc;
