Focus On Heart, Lasting On Action
| Place of Origin: | CHINA |
|---|---|
| Brand Name: | BJTUFF |
| Model Number: | 600-2000mm |
| Minimum Order Quantity: | 1 Piece |
| Price: | Negotiated |
| Packaging Details: | Plastic cases . |
| Delivery Time: | 7-10 work days |
| Supply Ability: | 200 Pieces/30 days |
| Material: | GB-Q355B | Auger Type: | Straight |
|---|---|---|---|
| Kelly Box: | 150*150,200*200 Etc | Application: | Rotary Drilling Rig |
| Condition: | New | Product Name: | Drilling Auger |
| Certification: | ISO | ||
| High Light: | Flat Teeth Drill Auger For Dirt,Double Cut drill auger for dirt,Dia 1500mm soil digger drill bit |
||

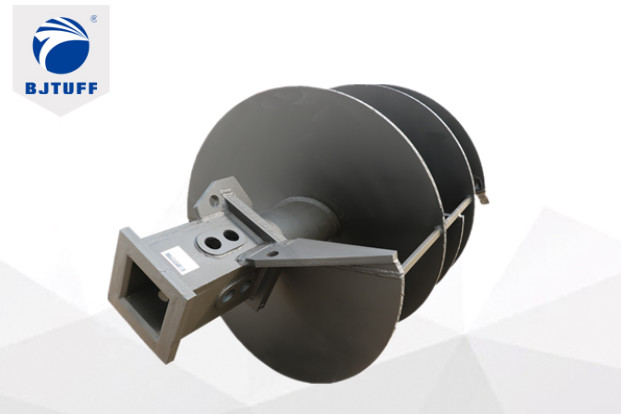

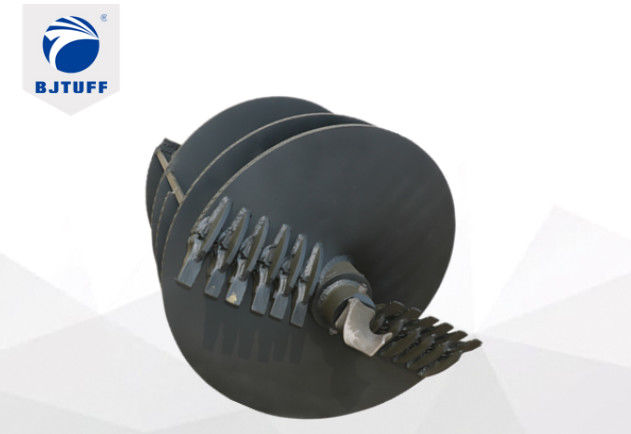

High quality straight drilling auger durable using various hot sale double cut flat rock for Bauer, Soilmec, Mait,Liebherr, Casagrande, IMT, Sany, XCMG, Zoomlion, Sunward ETC.Rotary Rig Foundation Spare Parts
Feature
1. Design as straight type, better for carry soil;
2. Double cutter bearing uniform force, can avoid inclined hole;
3. Double spiral easy to carry soil, but meet cohesive soil, single spiral is easy to dump spoil;
4. Applicable layers: clay, high-weathered layer, gravel etc；
Customizable Items
1. Spiral HIT. Custom : design as demand, prolong or shorten, increase of efficiency by drilling more;
2. Spiral Pitch Custom : adjust the spiral pitch according to different working condition;
3. Key Component Reinforce Custom : strengthen the key component to extend life cycle;
4. Teeth Custom : Equipped different teeth, like bullet teeth, flat teeth according to different working condition;
5. Kelly Box Custom : custom Kelly box size based on the Kelly bar, like 170*170, 250*250 etc;
Application
1. Soft to stiff silt and clay, loose to medium dense sand and gravel.
2. Double cut soil auger is recommended for uncased bored or for bigger diameters.
| Cutting Dia. | Spiral HIT. | Spiral Pitch | Spiral THK. | Teeth No. | Weight |
| Φ600 | 1000 | 400 | 30+20 | 4 | 560 |
| Φ800 | 1500 | 600 | 30+20 | 4 | 790 |
| Φ900 | 1500 | 600 | 30+20 | 5 | 880 |
| φ1000 | 1500 | 600 | 30+20 | 5 | 1050 |
| φ1200 | 1500 | 600 | 30+30 | 7 | 1400 |
| φ1500 | 1500 | 600 | 30+30 | 9 | 1980 |
| Φ1600 | 1500 | 600 | 30+30 | 9 | 2280 |
| Φ1800 | 1500 | 600 | 30+30 | 10 | 2950 |
| Φ2000 | 1500 | 600 | 30+35 | 14 | 3450 |
| Remark : All measurements are in milimeters, weight in kilograms. | |||||
Product advantage:
1. Each different type of drilling tool is designed to meet maximum possible variations in the soil for specific job-site conditions.
2. The angle of attack of drilling bits are variable according to the type of rock to generate maximum efficiency during.
3. Each drilling bit is positioned at a specific angle on the bottom plate to make sure there is minimum wearing out and breakage of the drilling bits or holders.
FAQ
Q: What's the nature of your company?
We are Manufacturer. We have factories all over China, all products posted are produced by ourselves, so we can offer you competitive price while ensuring product quality.
Q: How do you ship your products?
Our goods can be transported by air and sea or per your request.
Q: Does this product support customization?
Yes, due to the fact that we have our own factories, We can customize products per your request.
Q: How long is your delivery time?
Generally it is 5-10 days if the goods are in stock. Or it is 15-20 days if the goods are not in stock, it is according to quantity.
