| Place of Origin: | CHINA |
|---|---|
| Brand Name: | BJTUFF |
| Model Number: | 600-2000mm |
| Minimum Order Quantity: | 1 Piece |
| Price: | Negotiated |
| Packaging Details: | Plastic cases . |
| Delivery Time: | 7-10 work days |
| Supply Ability: | 200 Pieces/30 days |
| Material: | GB-Q355B | Auger Type: | Straight And With Soil Teeth |
|---|---|---|---|
| Kelly Box: | 150*150,200*200 Etc | Application: | Rotary Drilling Rig |
| Condition: | New | Product Name: | Drilling Auger |
| Certification: | ISO | ||
| High Light: | Fishtail Pilot Drilling Auger,Q355B Gravel Straight Drilling Auger,1600mm drill soil auger |
||

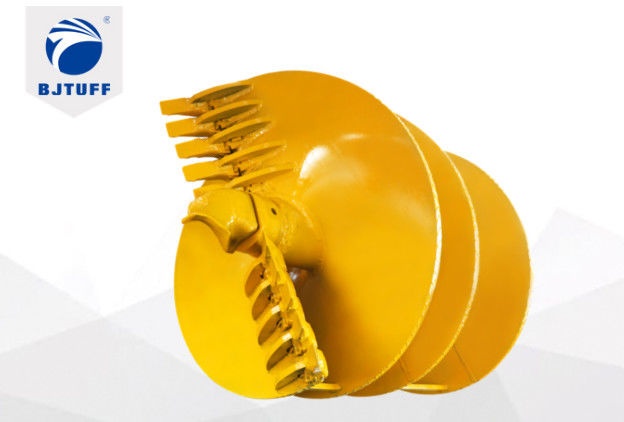

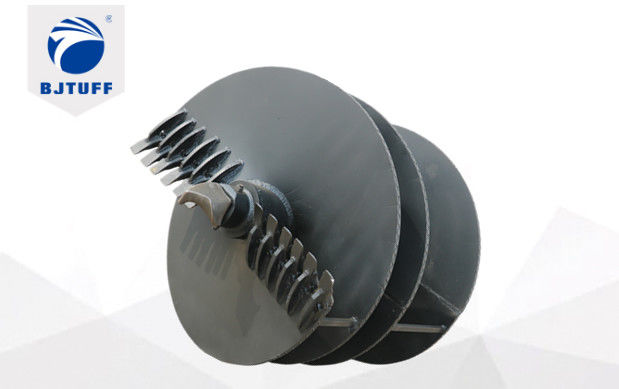

Construction Machinery Parts Drilling Auger Pile Foundation Drilling Multifunctional Auger
Product advantage:
1. Each different type of drilling tool is designed to meet maximum possible variations in the soil for specific job-site conditions.
2. The angle of attack of drilling bits are variable according to the type of rock to generate maximum efficiency during.
3. Each drilling bit is positioned at a specific angle on the bottom plate to make sure there is minimum wearing out and breakage of the drilling bits or holders.
Feature
1. Fish-tail pilot for accurate positioning;
2. Hard-facing strips on flights for wear protection;
3. Kelly box 150mm, 200mm, etc(optional);
4. Applicable layers: clay, high-weathered layer, gravel etc；
Customizable Items
1. Spiral HIT. Custom : design as demand, prolong or shorten, increase of efficiency by drilling more.
2. Spiral Pitch Custom : adjust the spiral pitch according to different working condition;
3. Key Component Reinforce Custom : strengthen the key component to extend life cycle;
4. Teeth Custom : Equipped different teeth, like bullet teeth, flat teeth according to different working condition;
5. Kelly Box Custom : custom Kelly box size based on the Kelly bar, like 170*170, 250*250 etc;
Application
1. Soft to stiff silt and clay, loose to medium dense sand and gravel.
2. Double cut soil auger is recommended for uncased bored or for bigger diameters.
| Cutting Dia. | Spiral HIT. | Spiral Pitch | Spiral THK. | Teeth No. | Weight |
| Φ600 | 1000 | 400 | 30+20 | 4 | 560 |
| Φ800 | 1500 | 600 | 30+20 | 4 | 790 |
| Φ900 | 1500 | 600 | 30+20 | 5 | 880 |
| φ1000 | 1500 | 600 | 30+20 | 5 | 1050 |
| φ1200 | 1500 | 600 | 30+30 | 7 | 1400 |
| φ1500 | 1500 | 600 | 30+30 | 9 | 1980 |
| Φ1600 | 1500 | 600 | 30+30 | 9 | 2280 |
| Φ1800 | 1500 | 600 | 30+30 | 10 | 2950 |
| Φ2000 | 1500 | 600 | 30+35 | 14 | 3450 |
| Remark : All measurements are in milimeters, weight in kilograms. | |||||
FAQ
Q: What's the nature of your company?
We are Manufacturer. We have factories all over China, all products posted are produced by ourselves, so we can offer you competitive price while ensuring product quality. And our drilling tools are sell to Domestic Market(50.00%),North America(10.00%),Southeast Asia(8.00%),Northern Europe(6.00%),South America(5.00%),Central America(5.00%),South Asia(5.00%),Eastern Europe(4.00%),Mid East(2.00%),Africa(1.00%),Oceania(1.00%),Eastern Asia(1.00%),Western Europe(1.00%),Southern Europe(1.00%).
Q: How do you ship your products?
Our goods can be transported by air and sea or per your request.
Q: Does this product support customization?
Yes, due to the fact that we have our own factories, We can customize products per your request.
Q: How long is your delivery time?
Generally it is 5-10 days if the goods are in stock. Or it is 15-20 days if the goods are not in stock, it is according to quantity.
