| Place of Origin: | China |
|---|---|
| Brand Name: | BJTUFF |
| Certification: | ISO9001 |
| Model Number: | 300-3000mm or as required |
| Minimum Order Quantity: | 1 Piece |
| Price: | Prices are determined by quantity and model of product |
| Packaging Details: | standard export packs -Wood case outside, plastic cases inside. |
| Delivery Time: | 3-5 days after payment |
| Payment Terms: | L/C, D/A, D/P, T/T |
| Supply Ability: | 300 Unit/Units per Month |
| Material: | GB-Q345B | Teeth Series: | Flat Teeth |
|---|---|---|---|
| Color: | As Your Required | Kelly Box Size: | 200*200 Mm As Usual Or As Your Required |
| Product Name: | Straight Clay Auger | Suitable: | All Kinds Of Rotary Drilling Rig Machines |
| Type: | Rotary Drilling,Customized | Condition: | New |
| High Light: | Straight Dirt Auger Drill Bit,1800mm dirt auger drill bit,180cm auger drill bit for soil |
||

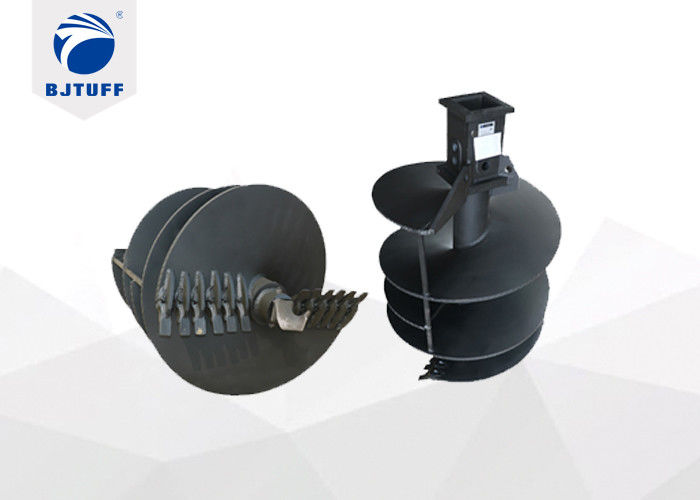

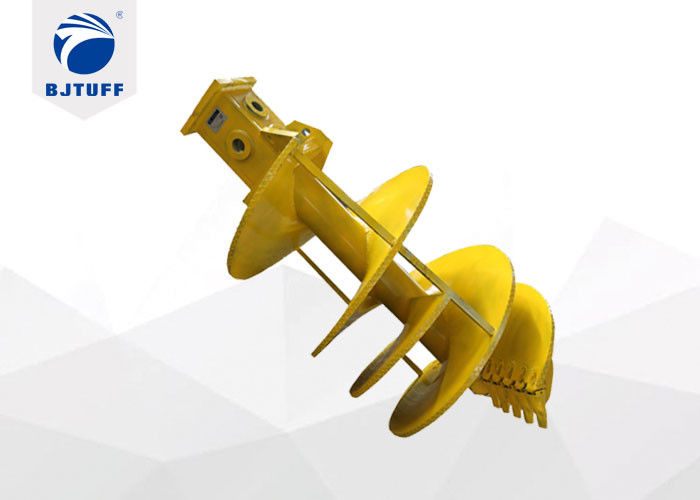

Hardpan Drilling Rig Spare Parts Double Cut Clay Straight Auger
Feature:
1. Design as straight type, better for carry soil ;
2. Double cutter bearing uniform force, can avoid inclined hole ;
3. Double spiral easy to carry soil, but meet cohesive soil, single spiral is easy to dump spoil;
4. Applicable layers: clay, high-weathered layer, gravel etc.
Auger types and appliaction:
1. Single cut single spiral concial rock auger / double cut single spiral concial rock auger/double cut double spiral conical rock auger :
Main Application:
are suitable for Medium to strong rock (15-60Mpa);
Features:
Sturdy and wearable forging stwwk polit for accurate positioning;
Hard facipsstrips on flights for wear protection.
2. Single cut straight rock auger / double cut single spiral straight rock auger/double cut double spiral straight rock auger:
Main Application:
Very dense sand and gravel,weak rock (<5Mpa)
Features:
Sturdy and wearable forging stwwk polit for accurate positioning;
Hard facipsstrips on flights for wear protection.
3. Single cut straight soil auger / double cut single spiral straight soil auger/double cut double spiral straight soil auger:
Main Application:
Soft to stiff silt and clay ,loose to medium dense sand and gravel.
Features:
Fish-tail Pilot for accurate positioning;
Hard facipsstrips on flights for wear protection.
| Cutting Dia. | Spiral HIT. | Spiral Pitch | Shell THK | Spiral OD. | Center Tube OD. | Weight |
| φ600 | 1100 | 600+400 | 20+30 | 550 | 219 | 535 |
| φ800 | 1500 | 600+400 | 20+30 | 750 | 245 | 750 |
| φ900 | 1500 | 600+500 | 20+30 | 850 | 245 | 820 |
| φ1000 | 1500 | 600 | 20+30 | 950 | 245 | 950 |
| φ1200 | 1500 | 600 | 30+30 | 1150 | 245 | 1050 |
| φ1500 | 1500 | 600 | 30+30 | 1450 | 273 | 1450 |
| φ1600 | 1500 | 600 | 30+30 | 1550 | 273 | 1650 |
| φ1800 | 1500 | 600 | 35+30 | 1750 | 273 | 1950 |
| φ2000 | 1500 | 600 | 35+30 | 1950 | 273 | 2300 |
| Remark:all measurements in millimeters (mm); weight in kilograms(kg); | ||||||
Package:
Packaging details for BJTUFF open type bucket
1.100% inspection before shipment.
2. Wrapped with plastic film.
3. Fixed with iron support.
4. Packed with plastic cases and wooden cases for drilling bits, clay teeth or other small accessories.
5.As clients' requirements.
Company advantage:
1-We purchase top quality raw materials from leading raw-steel factory.
2-Our drilling tools can be customized depending on kinds of rigs and site conditions.
3-We require high quality of welding, therefore we employ at least 8 years experienced welders.
4-Understand what customers need and provide what customers want, We provide one-stop solution for the world’s foundation construction users.
FAQ:
1. Are you factory or not?
Yes, we manufactured drilling products for 7 years in Hebei,China. Warmly welcome to visit our factory and office.
2. What does your company make?
The main products of our company include drilling bucket, auger bucket,drilling teeth,pile breaker, kelly bar and casing pipe.
3. What about your drlling product delivery time?
Usually it is 7-20 days. For some special case, we can deliver it in shorter time. It depends on different products.
4. Do you offer discounts for your drilling product?
Yes. Depends on order quantity.
5.What is the quality of your drilling products?
We strictly control product quality on each step from material choosing to every workmanship. our kelly bars provide 1 year quality guarantee.
First,we use good raw steel .Our welding stick is flux-cored wire that applied to ship engineering.
Second, We strictly control product quality on each step from material choosing to every workmanship. our kelly bars provide 1 year quality guarantee.
Third, Customers could contact our sales managers on line/by email/by phone if there are any question during installation or construction, solutions will be given within 12 hours.
