| Place of Origin: | CHINA |
|---|---|
| Brand Name: | BJTUFF |
| Model Number: | 600-2000mm |
| Minimum Order Quantity: | 1 Piece |
| Price: | Negotiated |
| Packaging Details: | Plastic cases . |
| Delivery Time: | 7-10 work days |
| Supply Ability: | 200 Pieces/30 days |
| Material: | GB-Q355B | Auger Type: | Straight And With Soil Teeth |
|---|---|---|---|
| Kelly Box: | 150*150,200*200 Etc | Application: | Rotary Drilling Rig |
| Condition: | New | Product Name: | Drilling Auger |
| Certification: | ISO | ||
| High Light: | BJTUFF Drilling Auger Machine,2000mm Drilling Auger Machine,post hole auger in clay |
||

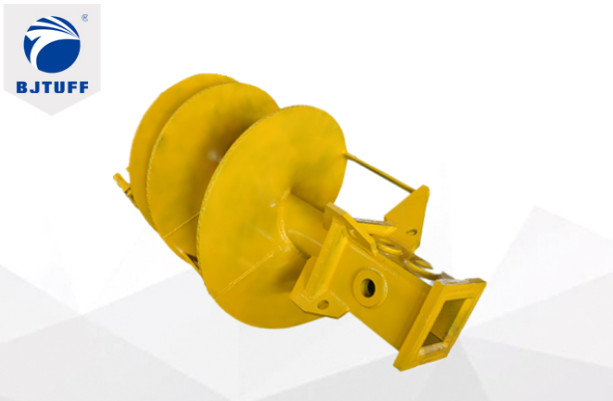

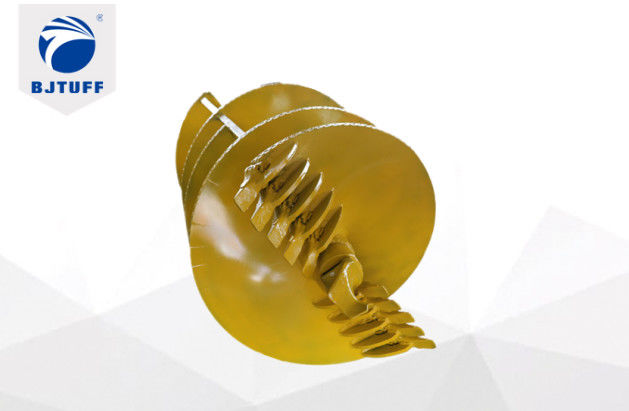

Rotary Spare Parts Hydraulic Auger Drilling Machine For Pilling Founadation Construction
Feature
1. Design as straight type, better for carry soil;
2. Double cutter bearing uniform force, can avoid inclined hole;
3. Double spiral easy to carry soil, but meet cohesive soil, single spiral is easy to dump spoil;
4. Kelly Box size 150mm, 200mm, etc.
5. Applicable layers: clay, high-weathered layer, gravel etc；
Customizable Items
1. Spiral HIT. Custom : design as demand, prolong or shorten, increase of efficiency by drilling more.
2. Spiral Pitch Custom : adjust the spiral pitch according to different working condition;
3. Key Component Reinforce Custom : strengthen the key component to extend life cycle;
4. Teeth Custom : Equipped different teeth, like bullet teeth, flat teeth according to different working condition;
5. Kelly Box Custom : custom Kelly box size based on the Kelly bar, like 170*170, 250*250 etc;
Application
1. Soft to stiff slit and clay, loose to medium dense sand.
2. Double cut is recommended in uncased bores and for bigger diameters for secant pile wall.
| Cutting Dia. | Spiral HIT. | Spiral Pitch | Spiral THK. | Teeth No. | Weight |
| Φ600 | 1000 | 400 | 30+20 | 4 | 560 |
| Φ800 | 1500 | 600 | 30+20 | 4 | 790 |
| Φ900 | 1500 | 600 | 30+20 | 5 | 880 |
| φ1000 | 1500 | 600 | 30+20 | 5 | 1050 |
| φ1200 | 1500 | 600 | 30+30 | 7 | 1400 |
| φ1500 | 1500 | 600 | 30+30 | 9 | 1980 |
| Φ1600 | 1500 | 600 | 30+30 | 9 | 2280 |
| Φ1800 | 1500 | 600 | 30+30 | 10 | 2950 |
| Φ2000 | 1500 | 600 | 30+35 | 14 | 3450 |
| Remark : All measurements are in milimeters, weight in kilograms. | |||||
Product advantage:
1. Design as straight type, better for carry soil.
2. Double cutter bearing uniform force, can avoid inclined hole.
3. Each drilling bit is positioned at a specific angle on the bottom plate to make sure there is minimum wearing out and breakage of the drilling bits or holders.
FAQ
Q: What's the nature of your company?
We are Manufacturer. We have factories all over China, all products posted are produced by ourselves, so we can offer you competitive price while ensuring product quality.
Q: What does your company make?
The main products of our company include drilling bucket, core barrel, auger, casing series, kelly bar, kelly bar accessories, soil teeth, roller bits, pilot bits, bullet teeth.
Q: How do you ship your products?
Our goods can be transported by air and sea or per your request.
Q: Does this product support customization?
Yes, due to the fact that we have our own factories, We can customize products per your request.
Q: How long is your delivery time?
Generally it is 5-10 days if the goods are in stock. Or it is 15-20 days if the goods are not in stock, it is according to quantity.
