Focus On Heart, Lasting On Action
| Place of Origin: | CHINA |
|---|---|
| Brand Name: | BJTUFF |
| Certification: | ISO |
| Model Number: | 600mm-1600mm |
| Minimum Order Quantity: | 1 Piece |
| Price: | Negotiated |
| Packaging Details: | Plastic cases . |
| Delivery Time: | 7-10 work days |
| Supply Ability: | 200 Pieces/30 days |
| Material: | GB-Q355B | Application: | Rotary Drilling Rig |
|---|---|---|---|
| Condition: | New | Product Name: | Double Wall Casing Attachment |
| Certification: | ISO | Color: | Black Or As Requeired |
| High Light: | 600mm Double Wall Casing Attachment,Double Wall Casing Driver,Casing Driver For Piling Foundation |
||

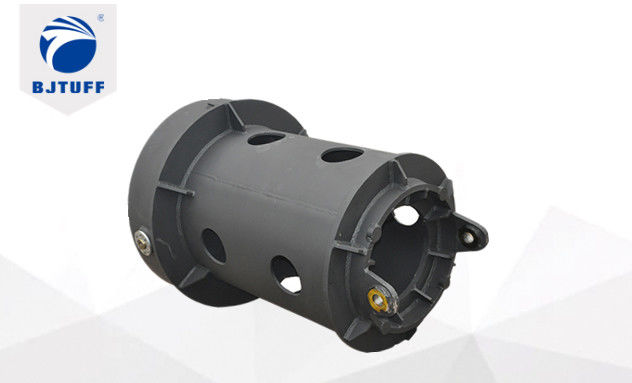

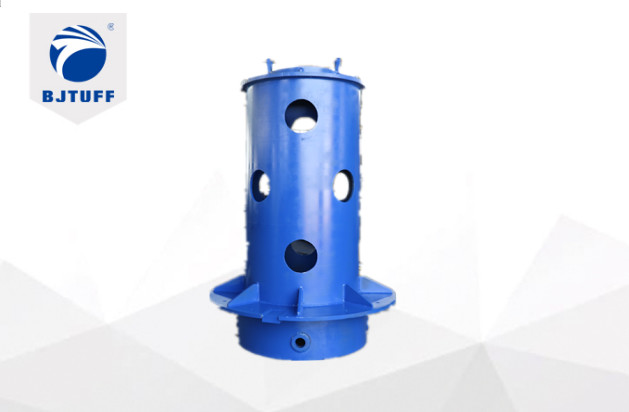

Drilling Casing Tube Casing Driver For Piling Foundation
Brief introduction
The use of powerfull rotary drives or the use of oscilators requires the application of heavy duty casings. We offer two types of casings; Double-walled casings and Single-walled casing
Double walled casings can be used universally, as they are designed especially for transmitting high rotational and vertical forces as created by the rig rotary drives or oscillations .
The use of double walled casings ensures a flush drill string.
Single walled casings can be used for applications where weight reduction is important.
Casing Driver
| Outer diameter | Inner diameter | 4 axis/2 ears |
| 680 | 600 | upper section20mm THK. 200mm HIT. |
| 750 | 670 | upper section20mm THK. 200mm HIT. |
| 880 | 800 | upper section20mm THK. 200mm HIT. |
| 900 | 820 | upper section20mm THK. 200mm HIT. |
| 1000 | 920 | upper section20mm THK. 200mm HIT. |
| 1080 | 1000 | upper section20mm THK. 200mm HIT. |
| 1180 | 1100 | upper section20mm THK. 200mm HIT. |
| 1280 | 1200 | upper section20mm THK. 200mm HIT. |
| 1500 | 1400 | upper section20mm THK. 200mm HIT. |
| 1700 | 1600 | upper section20mm THK. 200mm HIT. |
BJTUFF drilling casing items adopt the high-carbon steel and special welding method to keep the drilling strength and efficiency.
Rotary Casing Pipe is obtained by driving a steel soding into the ground in order to protect the whole drilling operation; basically the rotary drilling tool during the working process, performs inside a mechanical protection made by the casing fixed into the ground.
With a group of engineers and skilled workers with years of experience in engineering and construction design, our products are widely recogized and trusted by users. In the domestic market, we are the main supplier for Sany, XCMG, Zoomlion, Yutong, Sunward and Foton. In addition, our products are widely exported to the USA, Nea Zealand, Australia, Brazil, Souteast Asia, Middle East, Brazil, Russia and Afica, etc.
Reason for choose us
1. 10+ years’ experience in foundation drilling industry.
2. One-Stop foundation equipment solution.
3. Excellent services on the highest industry standard.
4. Constant innovation on the new products.
FAQ
Q: What's the nature of your company?
We are Manufacturer. We have factories all over China, all products posted are produced by ourselves, so we can offer you competitive price while ensuring product quality.
Q: What's your main product?
Our main products include kelly bars, drilling buckets, augers, core barrels, drilling teeth and holders, cutting bits. These products are acknowledged for their durability, robust construction, corrosion resistance and easy operations.
Q: How do you control the quality of your product?
First, we use good raw material;
Second, we have strict quality controlling system;
Third, we promise good quality and after-sales service.
Q: Does this product support customization?
Yes, due to the fact that we have our own factories, We can customize products per your request.
Q: How long is your delivery time?
Generally it is 5-10 days if the goods are in stock. Or it is 15-20 days if the goods are not in stock, it is according to quantity.
