Focus On Heart, Lasting On Action
| Place of Origin: | CHINA |
|---|---|
| Brand Name: | BJTUFF |
| Model Number: | 377mm-508mm |
| Minimum Order Quantity: | 1 Piece |
| Price: | Negotiated |
| Packaging Details: | Plastic cases |
| Delivery Time: | 5-8 work days |
| Supply Ability: | 200 Pieces/30 days |
| Material: | GB-Q355B | Application: | Rotary Drilling Rig |
|---|---|---|---|
| Process: | Forging And Welding | Product Name: | Friction Kelly Bar |
| Color: | Black Or As Required | Certification: | ISO |
| High Light: | 508mm Friction Kelly Bar,OEM Friction Kelly Bar,ODM kelly bar drill rig |
||

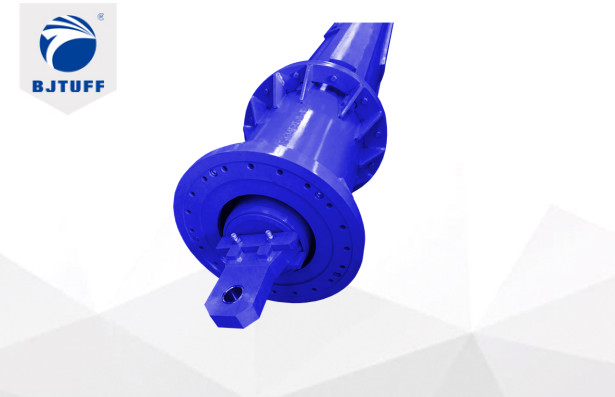

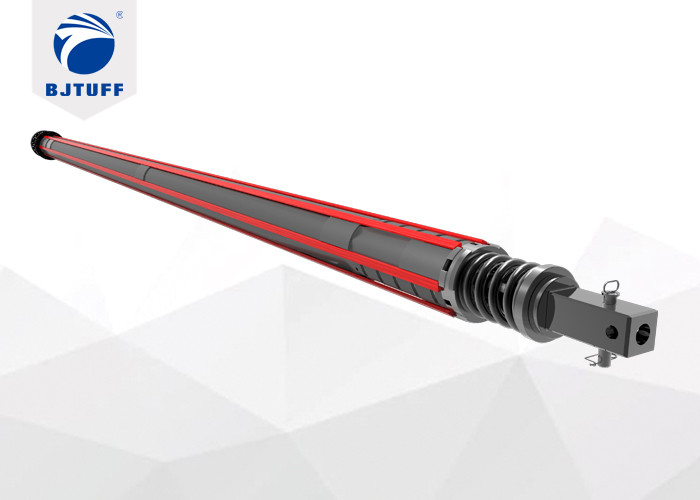

Piling Rig Friction Kelly Bar piling Rig Drilling Rig Deep Foundation
Feature
1. Strict selection of raw materials and forging parts such as drive stub to assure the reliable quality;
2. Heat treatment is widely used in the key parts such as drive keys to improve wear resistance;
3. With high torsional coefficient, the compression and vibration resistance of Kelly bar is higher than average level, high efficient in rock drilling construction;
| Name | Type | Weight(T) | Transport Length(mm) | Drilling Depth(m) |
| Φ377 Friction Kelly Bar | Φ377 *5*12 | 6.0 | 13300 | 53 |
| Φ377 Interlocking Kelly Bar | Φ377 *4*12 | 7.0 | 13550 | 42 |
| Φ455 Friction Kelly Bar | Φ455 *5*13 | 10.0 | 14510 | 58 |
| Φ455 Friction Kelly Bar | Φ455 *5*15 | 11.5 | 16510 | 68 |
| Φ445 Interlocking Kelly Bar | Φ455 *4*12 | 9.5 | 13645 | 42 |
| Φ445 Interlocking Kelly Bar | Φ455 *4*15 | 11.5 | 16645 | 54 |
| Φ508 Friction Kelly Bar | Φ508 *6*15 | 15.0 | 16585 | 82 |
| Φ508 Interlocking Kelly Bar | Φ508 *4*12 | 11.5 | 13550 | 42 |
Product advantage:
1. High quality welding and finishing throughout the drilling tool is very important to increase the life of the Drilling tool. BJTUFF drilling tools are manufactured under very experienced supervision,and quality inspection and control before delivery ensures that the right product is sent out to the customers.
2. The angle of attack of drilling bits are variable according to the type of rock to generate maximum efficiency during drilling.
3. BJTUFF provides an on-time after sales service when/if required by the customers for any issues.
Beijing Tuff Equipment and technology CO.,LTD is a modem science and technology that collections of rotary drilling rig tools and accessories research and development, production and trade.
Beijing Tuff Equipment and Technology Research Institute of Construction Method was established in 2015. With the continuous research of engineers, the research ability of kelly bar and drilling tools had been promoted.
FAQ
Q: What is the advantages of our products?
We are Factory. We use super quality raw material, which makes the drilling tools more durable and our drilling tools with competitive
price. No matter you are dealers or end user, you will get the biggest profit.
Q: What does your company make?
The main products of our company include drilling bucket, core barrel, auger, casing series, kelly bar, kelly bar accessories, soil teeth, roller bits, pilot bits, bullet teeth.
Q: How do you ship your products?
Our goods can be transported by air and sea or per your request.
Q: Does this product support customization?
Yes, due to the fact that we have our own factories, We can customize products per your request.
Q: How long is your delivery time?
Generally it is 5-10 days if the goods are in stock. Or it is 15-20 days if the goods are not in stock, it is according to quantity.
