| Product Name: | Roller Bits | Type: | Single Cone |
|---|---|---|---|
| Condition: | New | Application: | Equipped With Core Barrel |
| Color: | Customer Required | Material: | Tungsten Carbide |
| Diameter: | 8 1/2' | ||
| High Light: | 215.9MM Single Cone Drill Bit,BJTUFF single cone drill bit,21.59CM single cone bit |
||

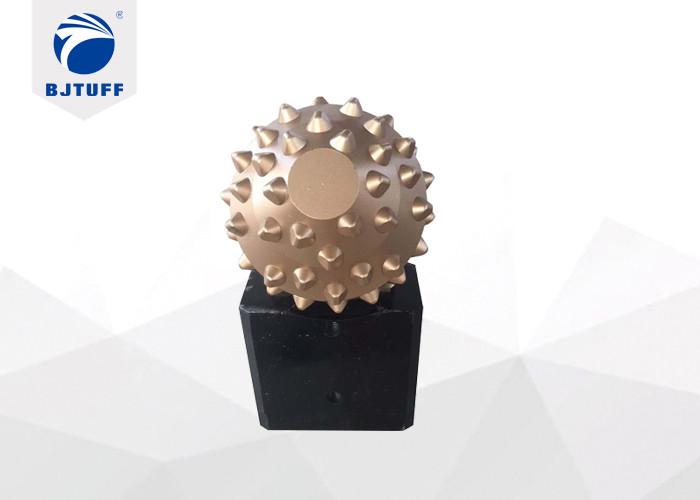

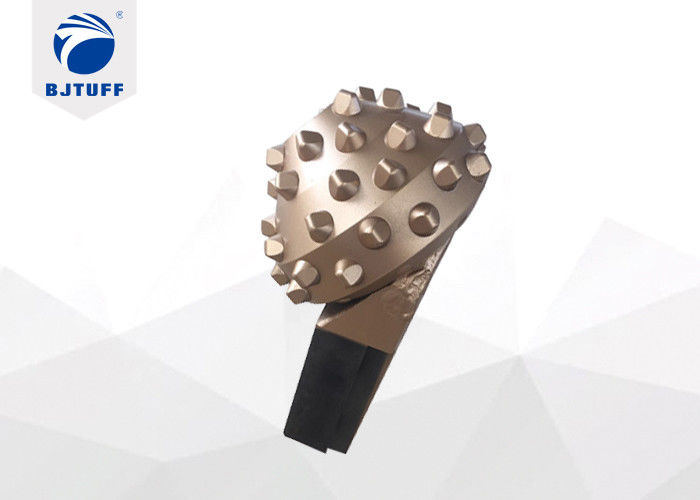

Rotary Drilling Core Barrel Parts Single Cone Hard Rock Roller Drill Bits
Characteristics:
♥ Cutting Structure :
The durability of premium tungsten carbide insert is improved with new formulas and new techniques for insert bit;
♥ Gauge Structure:
Multiple gauge protection with gauge trimmers on the heel of cone,tungsten carbide inserts and hard-facing on the shirttail increases gauge holding capability and bearing life.
♥ Bearing Structure :
High precision bearing with two thrust faces. Ball lock the cone. Hard-faced head bearing surface. Cone bearing inlaid with friction-reducing alloy and then silver -plated. Abrasion resistance and seizure resistance of the bearing are improved.
♥ Seal and Lubrication :
Premium O-ring,Optimal seal compression and curved seal structure can enhance the seal performance.The pressure compensate system and advanced grease can greatly increase the lubricating reliability.
♥Product Application:
It can receive high WOB in the conventional drilling. It is suitable for various formations by matching cutting structure with different tooth shape,tooth density and tooth exposure height.
| Basic Parameter | |
| Bit Size | 8 1/2"(215.9MM) |
| IADC Code | 537G |
| Bear Type | Rubber sealed journal bearings |
| Make up Torque(KN.m) | 16.3~21.7 |
| Processing Type | Casting |
| Operating Parameter | |
| Rotary Speed(rpm) | 70~40 |
| Weight on Bit(Kg) | 1.2~1.5 |
| Formation | Hard with high abrasiveness such as hard limestone,dolomite,firm sands,etc |
Package:
Packaging details for BJTUFF open type bucket
1. 100% inspection before shipment.
2. Wrapped with carton.
3. Packed with wooden cases
4. As clients' requirements.
Company advantage:
1- We purchase top quality raw materials from leading raw-steel factory.
2- Our drilling tools can be customized depending on kinds of rigs and site conditions.
3- We require high quality of welding, therefore we employ at least 8 years experienced welders.
4- Understand what customers need and provide what customers want, We provide one-stop solution for the world’s foundation construction users.
