| Material: | Carbide | Application: | Rotary Drilling Rig |
|---|---|---|---|
| Process: | Forging And Welding | Product Name: | Round Shank Chisel(Bullet Teeth) |
| Color: | Black Or As Required | Certification: | ISO |
| High Light: | Bullet Teeth Round Shank Chisel,42CrMo Round Shank Chisel,20*25mm Round Shank Chisel |
||

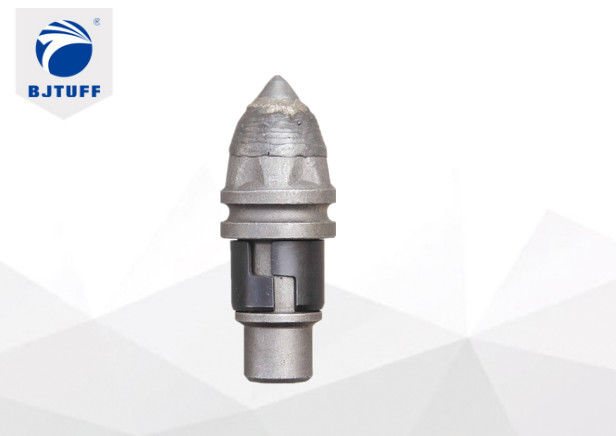

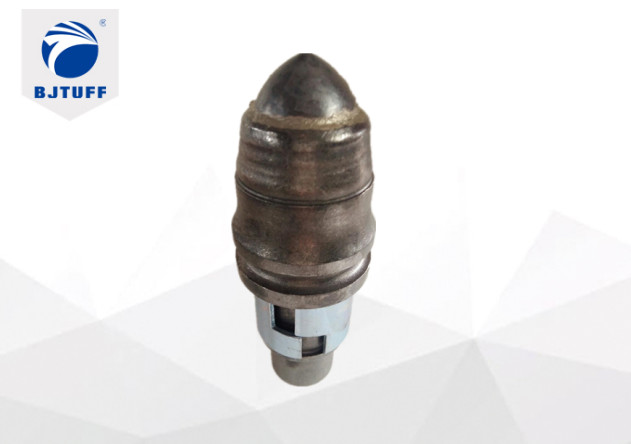

Foundation bullet teeth with alloy holder for rotary drilling rig
Advantage
1. The carbide tip use the low-cobalt material, with bigger carbide tip, with stronger abrasion resistance.
2. Advanced processing, to guarantee the carbide tips high quality.
3. The carbide tip has well-distributed micro-particles, with super impact strength, it will make higher force intensity during the drilling, and reduce the risk of breaking or cracking the teeth.
4. The body material is 42CrMo, high wear-resistant, strong toughness, strong compression and impact resistance, extend the using life.
5. The carbide tips of new design (unique mesh style outlook) have tower shape or step shape, which makes the bullet bits scatter out the rock pieces more smoothly, the efficiency can reduce 20%; comparing the traditional bullet bit, the drilling efficiency of the new one can increase 33%. It can better service for drilling weak weathering rock 60-70Mpa, hard rock 80-90Mpa, except 100Mpa.
6. Streamlined body design of new design teeth (unique mesh style outlook ) make the teeth have better rotation, less resistance.
Application
Suitable for medium and strong weathering soft geology.
Material details as below
High Management Alloy Steel Body, made of 42CrMo,
heat treatment with 40-44HRC hardness, forged and anti-rust treatment,
has high toughness and wearable character.
Body Material: High Manganese Alloy steel, 42CrMo
Hardness: 40-44HRC
Weight: 2.4kg/pc
Packing: mainly foam, plywood and customers’ requirement
Items
| Type | Specification | Size(mm) |
| 3050-22 | 3050 | 22*27 |
| K59 | 3060 | 22*27 |
| 3050-N9 | 3050 | 20*25 |
| K55-N10 | 3060 | 22*27 |
| K59-N10 | 3060 | 22*27 |
| K60-N11 | 3060 | 25*30 |
| K59-T10 | 3060 | 22*27 |
| K60-T10 | 3060 | 25*30 |
| ST22 | 3055 | 22*27 |
| ST24 | 3055 | 24*33 |
| ST26 | 3060 | 26*34 |
| ST28 | 3060 | 28*36 |
| ST30 | 3060 | 30*36 |
Holder Size
70 Holder, 80 holder, 70 alloy round holder, 80 alloy round holder, square tooth holder.
