| Place of Origin: | CHINA |
|---|---|
| Brand Name: | BJTUFF |
| Certification: | ISO |
| Model Number: | 600mm-3000mm |
| Minimum Order Quantity: | 1 Piece |
| Price: | Negotiated |
| Packaging Details: | Plastic cases |
| Delivery Time: | 5-8 work days |
| Supply Ability: | 200 Pieces/30 days |
| Material: | GB-Q355B | Application: | Rotary Drilling Rig |
|---|---|---|---|
| Process: | Forging And Welding | Product Name: | Core Barrel With Roller Bit |
| Color: | Black Or As Required | Certification: | ISO |
| High Light: | 2000mm Kelly Box Core Barrels,ISO 2000mm Core Barrels,Core Barrels With Single Cone Bit |
||

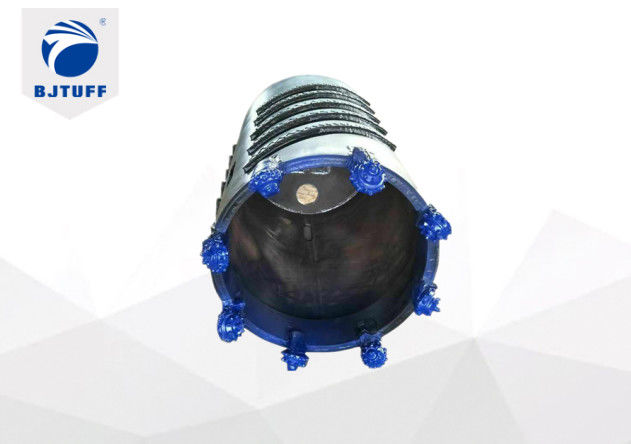

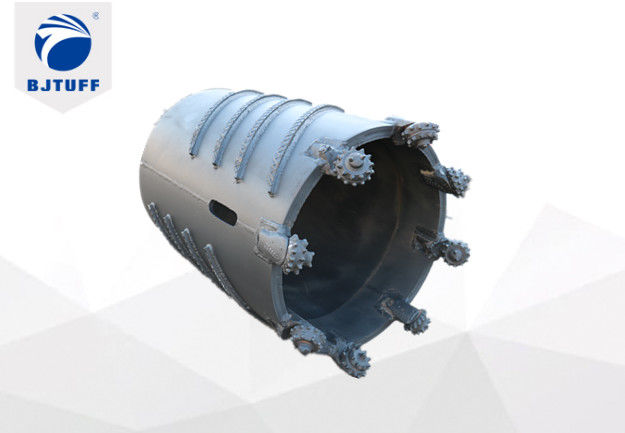

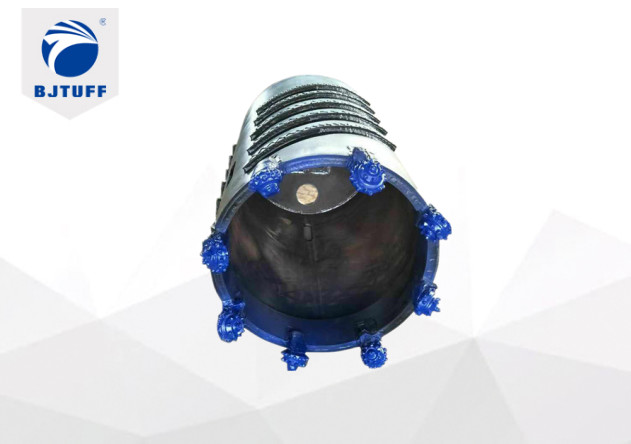

Drilling Machine 2000mm kelly box drilling core barrel with roller bits Rotary Drilling Rig
The single-cone bit is a kind of deceleration bit, that is, the rotation speed of the cone is smaller than the rotation speed of the drill bit. It is mainly used to chamfer the broken rock, and is suitable for the old well window sidetracking and deepening of the old well under high speed and high drilling pressure. Wait for small well bore drilling operations.
Advantage
1. The working torque is lower than that of the PDC bit under the same drilling pressure and formation conditions, which can reduce the expansion of small-sized drilling tools and avoid down hole accidents.
2. The advantages of the single-cone bit with the tricone bit and the PDC bit are different. They are more suitable for the plastic formation than the tricone bit, and can also be applied to the PDC bit. Hard inter layers and other complex formations.
3. With the underground power drill can achieve high speed and special drilling needs.
Feature
1. Cutting ring with rock drilling bits and releases the internal stress of rock；
2. Drilling with the method of rolling and squeezing can increases the anti-wear ability of the barrel;
3. Applicable layers: backfill layer, medium weathered rock, bedrock;
Customizable Items
1. Cutting DIA. Custom : design various cutting diameter based on demand, like φ850,φ1150 etc.
2. Shell HIT. Custom : design as demand, prolong or shorten, increase of efficiency by drilling more.
3. Key Component Reinforce Custom : strengthen the key component to extend life cycle;
4. Kelly Box Custom: custom Kelly box size based on the Kelly bar, like 130*130, 150*150,200*200 etc;
5. Teeth No. Custom : encrypt the drilling teeth based on demand etc;
| Cutting Dia. | Shell HIT. | Shell THK. | Stiffening Ring THK. | Teeth No. | Weight |
| Φ600 | 1200 | 20 | 20 | 4 | 559 |
| Φ700 | 1200 | 20 | 20 | 6 | 663 |
| Φ800 | 1200 | 20 | 20 | 6 | 730 |
| Φ900 | 1200 | 20 | 20 | 8 | 842 |
| φ1000 | 1200 | 20 | 20 | 8 | 990 |
| φ1100 | 1200 | 20 | 20 | 8 | 1095 |
| φ1200 | 1200 | 20 | 20 | 10 | 1200 |
| φ1300 | 1200 | 20 | 20 | 10 | 1348 |
| φ1400 | 1200 | 20 | 20 | 12 | 1405 |
| φ1500 | 1200 | 20 | 20 | 12 | 1598 |
| φ1800 | 1000 | 20 | 20 | 16 | 1920 |
| φ2000 | 800 | 20 | 20 | 18 | 1954 |
| Φ2200 | 800 | 20 | 20 | 20 | 2200 |
| Φ2500 | 800 | 25 | 20 | 20 | 2816 |
| Φ2800 | 800 | 25 | 20 | 24 | 3645 |
| Φ3000 | 800 | 30 | 20 | 26 | 4180 |
| Remark : All measurements are in milimeters, weight in kilograms. | |||||
FAQ
Q: What's the nature of your company?
We are Manufacturer. We have factories all over China, all products posted are produced by ourselves, so we can offer you competitive price while ensuring product quality.
Q: How do you ship your products?
Our goods can be transported by air and sea or per your request.
Q: Does this product support customization?
Yes, due to the fact that we have our own factories, We can customize products per your request.
Q: How long is your delivery time?
Generally it is 5-10 days if the goods are in stock. Or it is 15-20 days if the goods are not in stock, it is according to quantity.
