Focus On Heart, Lasting On Action
| Place of Origin: | CHINA |
|---|---|
| Brand Name: | BJTUFF |
| Certification: | ISO |
| Model Number: | 600mm-1800mm |
| Minimum Order Quantity: | 1 Piece |
| Price: | Negotiated |
| Packaging Details: | Plastic cases |
| Delivery Time: | 5-8 work days |
| Supply Ability: | 200 Pieces/30 days |
| Material: | GB-Q355B | Application: | Rotary Drilling Rig |
|---|---|---|---|
| Process: | Forging And Welding | Product Name: | Core Barrel With Crossing Cutter |
| Color: | Black Or As Required | Certification: | ISO |
| High Light: | Dia 1400mm Rock Drill Core Barrel,33Tooth Core Barrel,Rotary Rig Core Barrels |
||

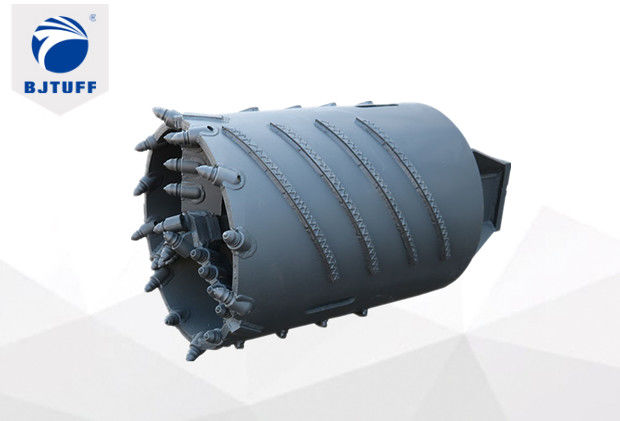

Rotary Rig Rock Drill Tools Cross Cutter Teeth Rock Core Barrel For Piling Rigs
Advantages
1. Cross cutter core barrel is mainly used to break rock cores which remain in the borehole after using a core barrel, also suitable for drilling hard, jointed rock(<100Mpa) and for penetrating through layers containing boulders.
2. For the rock column that fails to take the core, this drill can effectively improve the drilling and slag carrying capacity and improve the drilling efficiency.
Customizable Items
1. Cutting DIA. Custom : design various cutting diameter based on demand, like φ850,φ1150 etc.
2. Shell HIT. Custom : design as demand, prolong or shorten, increase of efficiency by drilling more.
3. Key Component Reinforce Custom : strengthen the key component to extend life cycle;

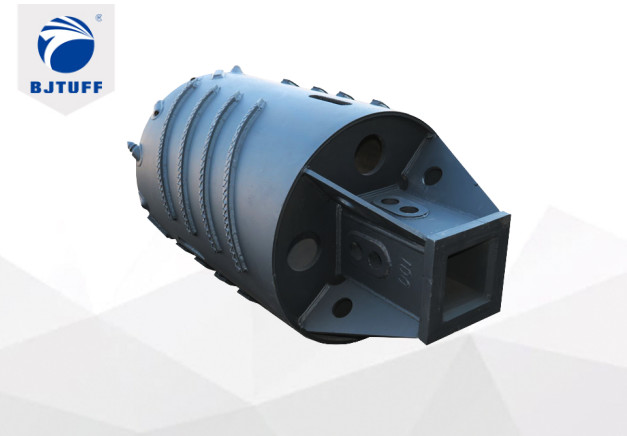

4. Kelly Box Custom: custom Kelly box size based on the Kelly bar, like 130*130, 150*150,200*200 etc;
5. Teeth No. Custom : encrypt the drilling teeth based on demand etc;
| Cutting Dia. | Shell HIT. | Shell THK. | Stiffening Ring THK. | Teeth No. | Weight |
| Φ600 | 1200 | 20 | 20 | 11 | 735 |
| Φ700 | 1200 | 20 | 20 | 14 | 855 |
| Φ800 | 1200 | 20 | 20 | 18 | 920 |
| Φ900 | 1200 | 20 | 20 | 21 | 1059 |
| φ1000 | 1200 | 20 | 20 | 24 | 1220 |
| φ1100 | 1200 | 20 | 20 | 26 | 1374 |
| φ1200 | 1200 | 20 | 20 | 27 | 1477 |
| φ1300 | 1200 | 20 | 20 | 30 | 1530 |
| φ1400 | 1200 | 20 | 20 | 33 | 1700 |
| φ1500 | 1200 | 20 | 20 | 36 | 1800 |
| φ1800 | 1000 | 20 | 20 | 40 | 2235 |
| Remark : All measurements are in milimeters, weight in kilograms. | |||||
Beijing Tuff Equipment and technology CO.,LTD is a modem science and technology that collections of rotary drilling rig tools and accessories research and development, production and trade.
We provide customized services for drilling tools, kelly bars and we have sold world-wide for BAUER,MAIT, SOILMEC, CASAGRANDA,SANY and XCMG drilling rigs, etc. We are the real Manufacturer in China.Welcome to our factory.
FAQ
Q: What is the advantages of our products?
We are Factory. We use super quality raw material, which makes the drilling tools more durable and our drilling tools with competitive
price. No matter you are dealers or end user, you will get the biggest profit.
Q: What's the nature of your company?
We are Manufacturer. We have factories all over China, all products posted are produced by ourselves, so we can offer you competitive price while ensuring product quality.
Q: How do you ship your products?
Our goods can be transported by air and sea or per your request.
Q: Does this product support customization?
Yes, due to the fact that we have our own factories, We can customize products per your request.
Q: How long is your delivery time?
Generally it is 5-10 days if the goods are in stock. Or it is 15-20 days if the goods are not in stock, it is according to quantity.
