Focus On Heart, Lasting On Action
| Place of Origin: | CHINA |
|---|---|
| Brand Name: | BJTUFF |
| Certification: | ISO |
| Model Number: | 600mm-1800mm |
| Minimum Order Quantity: | 1 Piece |
| Price: | Negotiated |
| Packaging Details: | Plastic cases |
| Delivery Time: | 5-8 work days |
| Supply Ability: | 200 Pieces/30 days |
| Material: | GB-Q355B | Application: | Rotary Drilling Rig |
|---|---|---|---|
| Process: | Forging And Welding | Product Name: | Core Barrel With Crossing Cutter |
| Color: | Black Or As Required | Certification: | ISO |
| High Light: | Q355B Cross Cutter Core Barrel,ISO Cross Cutter Core Barrel,Bauer Piling Rigs Core Barrel |
||

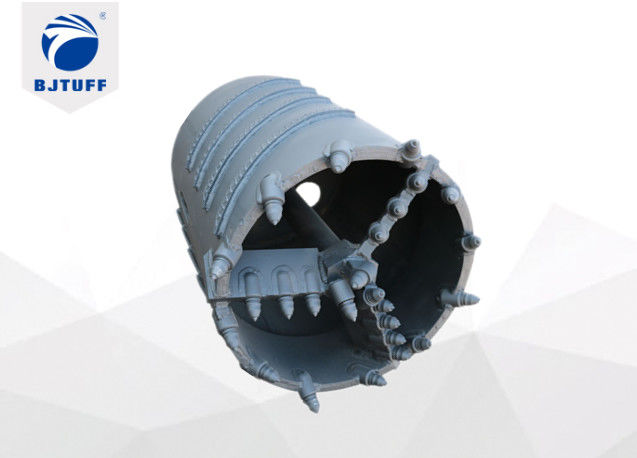

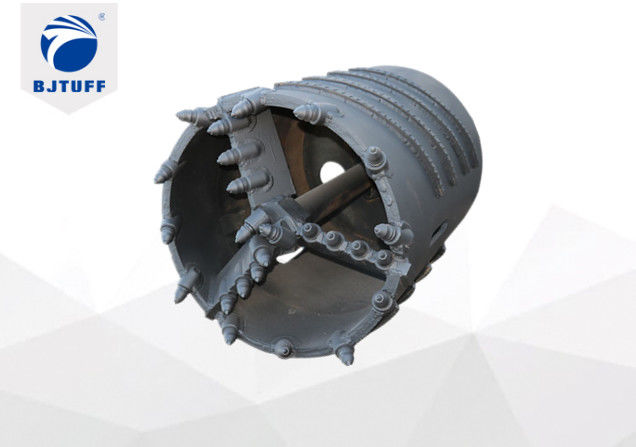

Cross Cutter Core Barrels Rock Teeth For Bauer Piling Rigs Rotary Drilling Rig
Feature
1. Cutting ring with rock drilling bits and releases the internal stress of rock,while cutting inside；
2. Crossing cutter make it easy to carry soil, when drilling in the full fracture rock layer ;
3. Applicable layers: gravel soil, highly weathered rock, medium weathered rock
Customizable Items
1. Cutting DIA. Custom : design various cutting diameter based on demand, like φ850,φ1150 etc.
2. Shell HIT. Custom : design as demand, prolong or shorten, increase of efficiency by drilling more.
3. Key Component Reinforce Custom : strengthen the key component to extend life cycle;
4. Kelly Box Custom: custom Kelly box size based on the Kelly bar, like 130*130, 150*150,200*200 etc;
5. Teeth No. Custom : encrypt the drilling teeth based on demand etc;
CORE BARREL WITH BULLETS BITS
| Cutting Dia. | Shell HIT. | Shell THK. | Stiffening Ring THK. | Teeth No. | Weight |
| Φ600 | 1200 | 20 | 20 | 9 | 583 |
| Φ700 | 1200 | 20 | 20 | 9 | 691 |
| Φ800 | 1200 | 20 | 20 | 12 | 786 |
| Φ900 | 1200 | 20 | 20 | 12 | 923 |
| φ1000 | 1200 | 20 | 20 | 15 | 1026 |
| φ1100 | 1200 | 20 | 20 | 15 | 1140 |
| φ1200 | 1200 | 20 | 20 | 18 | 1250 |
| φ1300 | 1200 | 20 | 20 | 18 | 1385 |
| φ1400 | 1200 | 20 | 20 | 21 | 1461 |
| φ1500 | 1200 | 20 | 20 | 21 | 1644 |
| φ1800 | 1000 | 20 | 20 | 27 | 1913 |
| φ2000 | 800 | 20 | 20 | 30 | 1979 |
| Φ2200 | 800 | 20 | 20 | 33 | 2279 |
| Φ2500 | 800 | 25 | 20 | 39 | 2889 |
| Remark : All measurements are in milimeters, weight in kilograms. | |||||
CORE BARREL WITH ROLLER BITS
| Cutting Dia. | Shell HIT. | Shell THK. | Stiffening Ring THK. | Teeth No. | Weight |
| Φ600 | 1200 | 20 | 20 | 4 | 559 |
| Φ700 | 1200 | 20 | 20 | 6 | 663 |
| Φ800 | 1200 | 20 | 20 | 6 | 730 |
| Φ900 | 1200 | 20 | 20 | 8 | 842 |
| φ1000 | 1200 | 20 | 20 | 8 | 990 |
| φ1100 | 1200 | 20 | 20 | 8 | 1095 |
| φ1200 | 1200 | 20 | 20 | 10 | 1200 |
| φ1300 | 1200 | 20 | 20 | 10 | 1348 |
| φ1400 | 1200 | 20 | 20 | 12 | 1405 |
| φ1500 | 1200 | 20 | 20 | 12 | 1598 |
| φ1800 | 1000 | 20 | 20 | 16 | 1920 |
| φ2000 | 800 | 20 | 20 | 18 | 1954 |
| Φ2200 | 800 | 20 | 20 | 20 | 2200 |
| Φ2500 | 800 | 25 | 20 | 20 | 2816 |
| Φ2800 | 800 | 25 | 20 | 24 | 3645 |
| Φ3000 | 800 | 30 | 20 | 26 | 4180 |
| Remark : All measurements are in milimeters, weight in kilograms. | |||||
CORE BARREL WITH CROSSING CUTTER
| Cutting Dia. | Shell HIT. | Shell THK. | Stiffening Ring THK. | Teeth No. | Weight |
| Φ600 | 1200 | 20 | 20 | 11 | 735 |
| Φ700 | 1200 | 20 | 20 | 14 | 855 |
| Φ800 | 1200 | 20 | 20 | 18 | 920 |
| Φ900 | 1200 | 20 | 20 | 21 | 1059 |
| φ1000 | 1200 | 20 | 20 | 24 | 1220 |
| φ1100 | 1200 | 20 | 20 | 26 | 1374 |
| φ1200 | 1200 | 20 | 20 | 27 | 1477 |
| φ1300 | 1200 | 20 | 20 | 30 | 1530 |
| φ1400 | 1200 | 20 | 20 | 33 | 1700 |
| φ1500 | 1200 | 20 | 20 | 36 | 1800 |
| φ1800 | 1000 | 20 | 20 | 40 | 2235 |
| Remark : All measurements are in milimeters, weight in kilograms. | |||||
Beijing Tuff Equipment and technology CO.,LTD is a modem science and technology that collections of rotary drilling rig tools and accessories research and development, production and trade.
We provide customized services for drilling tools, kelly bars and we have sold world-wide for BAUER,MAIT, SOILMEC, CASAGRANDA,SANY and XCMG drilling rigs, etc. We are the real Manufacturer in China.Welcome to our factory.
FAQ
Q: What is the advantages of our products?
We are Factory. We use super quality raw material, which makes the drilling tools more durable and our drilling tools with competitive
price. No matter you are dealers or end user, you will get the biggest profit.
Q: What's the nature of your company?
We are Manufacturer. We have factories all over China, all products posted are produced by ourselves, so we can offer you competitive price while ensuring product quality.
Q: How long is your delivery time?
Generally it is 5-10 days if the goods are in stock. Or it is 15-20 days if the goods are not in stock, it is according to quantity.
