Focus On Heart, Lasting On Action
| Place of Origin: | CHINA |
|---|---|
| Brand Name: | BJTUFF |
| Certification: | ISO |
| Minimum Order Quantity: | 1 Piece |
| Price: | Negotiated |
| Packaging Details: | Plastic cases |
| Delivery Time: | 5-8 work days |
| Supply Ability: | 200 Pieces/30 days |
| Material: | 40Cr | Application: | Rotary Drilling Rig |
|---|---|---|---|
| Process: | Forging And Welding | Product Name: | WS39 Teeth |
| Color: | Black Or As Required | Certification: | ISO |
| High Light: | WS39 Teeth Drilling Rig Accessories,40Cr WS39 Teeth,WS39 Teeth For Hole Pile Foundation |
||
Casing Tube Drilling Rig Accessories Rotary Drill Good Tool for Hole Pile Foundation

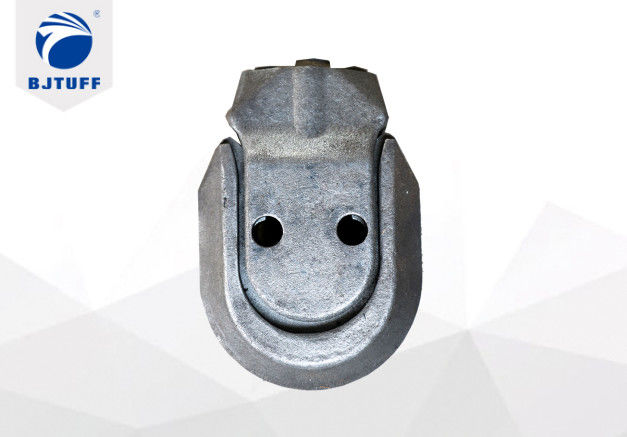

WS39 teeth
| Material | 40Cr |
| Length | 94.5mm |
| Width | 40mm |
| Height | 149mm |
Double Wall Casing Feature
Equipped with WS39 teeth.
Double wall casing and casing shoes
| Description | Weight(kg) | Connection THK.(mm) | Casing THK.(mm) | |
| Casing shoes | Φ680(short) | 333 | 40 | - |
| Φ680(2-6meter) | 870 to 2165 | 40 | 12+8 | |
| Double wall casing |
Φ680/600 (2- 6 meter section) |
736 to 2032 | 40 | 12+8 |
| Casing shoes | Φ880(short) | 436 | 40 | - |
| Φ880(2-6meter) | 1139 to 2836 | 40 | 12+8 | |
| Double wall casing | Φ880(2- 6 meter section) | 962 to 2659 | 40 | 12+8 |
| Casing shoes | Φ1180(short) | 596 | 40 | - |
| Φ1180(2-6meter) | 1827-4801 | 40 | 16+10 | |
| Double wall casing | Φ1180(2- 6 meter section) | 1591-4566 | 40 | 16+10 |
| Casing shoes | Φ1500(short) | 1071 | 50mm | - |
| Φ1500(2-6meter) | 2993 to 7638 | 50mm | 20+12 | |
| Double wall casing | Φ1500(2- 6 meter section) | 2742 to 7387 | 50mm | 20+12 |
| Casing shoes | Φ1700(short) | 1222 | 50mm | - |
| Φ1700(2-6meter) | 3408 to 8691 | 50mm | 20+12 | |
| Double wall casing | Φ1700(2- 6 meter section) | 3126 to 8409 | 50mm | 20+12 |
Double walled rotary casings pipe can be used universally, as they are designed especially for transmitting high rotational and vertical forces as created by the rig rotary drives or oscillations. The use of double walled casings ensures a flush drill string.
We provide customized services for drilling tools, kelly bars and we have sold world-wide for BAUER,MAIT, SOILMEC, CASAGRANDA,SANY and XCMG drilling rigs, etc. We are the real Manufacturer in China.Welcome to our factory.
Our main products include drilling buckets, augers, core barrels, kelly bars, drilling teeth and holders, double wall casing and casing attachment. These products are acknowledged for their durability, robust construction, corrosion resistance and easy operations.
FAQ
Q: What's the nature of your company?
We are Manufacturer. We have factories all over China, all products posted are produced by ourselves, so we can offer you competitive price while ensuring product quality.
Q: What's your main product?
Our main products include kelly bars, drilling buckets, augers, core barrels, drilling teeth and holders, cutting bits. These products are acknowledged for their durability, robust construction, corrosion resistance and easy operations.
Q: How do you control the quality of your product?
First, we use good raw material;
Second, we have strict quality controlling system;
Third, we promise good quality and after-sales service.
Q: Does this product support customization?
Yes, due to the fact that we have our own factories, We can customize products per your request.
Q: How long is your delivery time?
Generally it is 5-10 days if the goods are in stock. Or it is 15-20 days if the goods are not in stock, it is according to quantity.
