Place of Origin: | China |
---|---|
Brand Name: | BJTUFF |
Certification: | ISO9001 |
Model Number: | 350-3000mm or as required |
Minimum Order Quantity: | 1 Piece |
Price: | Negotiated |
Packaging Details: | Wood case or iron support outside, plastic film inside. |
Delivery Time: | 3-5 days after payment |
Payment Terms: | L/C, D/A, D/P, T/T |
Supply Ability: | 200 Unit/Units per Month |
Name: | New Type Drill Bucket With Core Barrel Cutting Ring | Application: | Especially For Pebble Layer |
---|---|---|---|
Color: | Black ,or Customized | Material: | Q345/460+NM400 |
After-sales Service Provided: | Online Support,Video Technical Support | Teeth Type: | Shank Chisel |
Machine Type: | Rotary Drilling Rig | Size: | As Customer Required |
High Light: | NM400 Rock Drilling Piling Bucket,Q345/460 piling Bucket,Q345 Shank chisel core bucket |

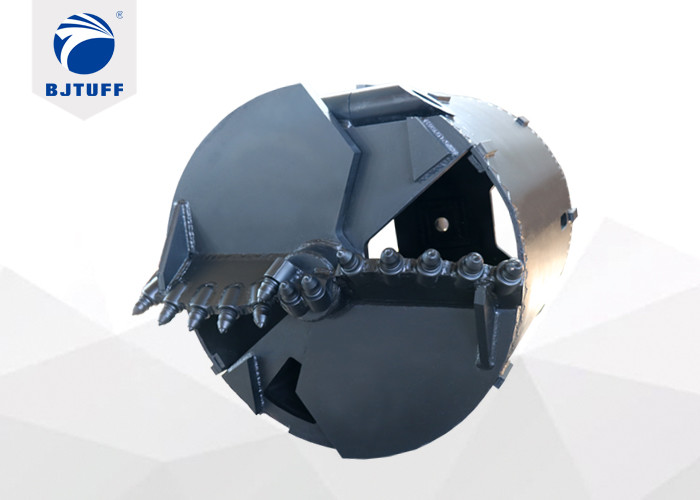

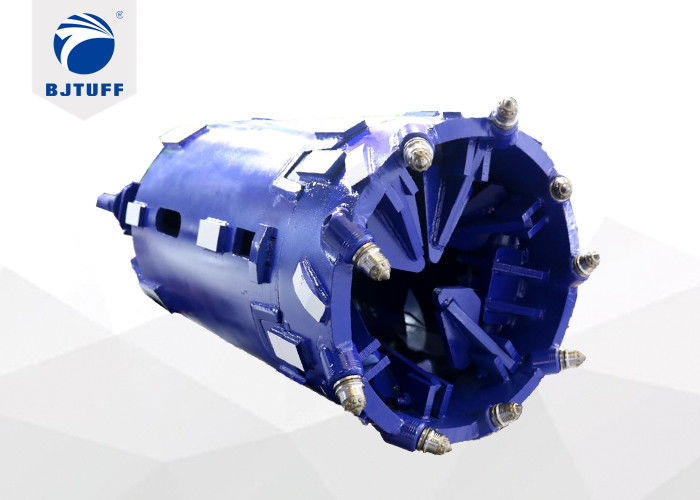

New Type Piling Tools Pebble Rock Drilling Bucket With Core Barrel Cutting Ring
Application:
BJTUFF new type complex drilling bucket for pebble layer combines the structure of rock drilling bucket and the cutting ring of core barrel with hinges ,which is easy to remove the pebble spoilt from the hole.
Feature
1. Cutting ring with rock drilling bits and releases the internal stress of rock ;
2. Rock drilling bits perform stage breaking and drilling .
3. The hinges under the cutting ring is easy to huge the rock from the hole;
4. Option half automatic or manual mechanic bottom open system
5. Applicable layers:gravel ,pebble ,highly or medium weathered rock.
Model List:
Cutting Dia. | Shell HIT. | Shell THK. | Stiffening Ring HIT. | Stiffening Ring THK. |
φ600 | 1200 | 20 | 200 | 40 |
φ800 | 1200 | 20 | 200 | 40 |
φ1000 | 1200 | 20 | 200 | 40 |
φ1200 | 1200 | 20 | 200 | 40 |
φ1500 | 1200 | 20 | 200 | 40 |
φ1800 | 1000 | 20 | 200 | 40 |
φ2000 | 800 | 25 | 200 | 50 |
φ2500 | 800 | 25 | 200 | 50 |
φ2800 | 800 | 25 | 200 | 50 |
φ3000 | 800 | 25 | 200 | 50 |
Remark: measurements are in millimeters, |
Customizable Items:
Key Component Reinforce Custom :extend life cycle or adjust different working conditions;
Cutter Custom: single cutter and double cutter design as demand;
Bottom Custom : single bottom and double bottom design as demand;
Kelly Box Custom : based on the kelly bar;
Bottom Open Mechanic : half-automatic if the space is avaible or manul mechanic bottom open system.
Package:
Packaging details for BJTUFF open type bucket
1. 100% inspection before shipment.
2. Wrapped with plastic film.
3. Fixed with iron support or wooden box.
4. As clients' requirements.
Product advantage:
1- Top quality raw materials from leading raw-steel factory.
2- Our drilling tools can be customized depending on kinds of rigs and site conditions.
3- We require high quality of welding, therefore we employ at least 8 years experienced welders.
4- We provide one-stop solution for the world’s foundation construction users.
FAQ:
1. Are you factory or not?
Yes, we manufactured drilling products for 7 years in Hebei,China. Warmly welcome to visit our factory and office.
2. What does your company make?
The main products of our company include drilling tools,drilling teeth,pile breaker, kelly bar and casing pipe.
3. Do you offer discounts for your drilling product?
Yes. Depends on order quantity.
4. What is the quality of your drilling products?
① we promise good raw steel .Our welding stick is flux-cored wire that applied to ship engineering.
② We strictly control product quality on each step from material choosing to every workmanship.
③ Customers could contact our sales managers if there are any question during installation or construction anytime, and solutions will be given within 12 hours.
