| Place of Origin: | CHINA |
|---|---|
| Brand Name: | BJTUFF |
| Certification: | ISO |
| Model Number: | 500-1200mm |
| Minimum Order Quantity: | 1 Piece |
| Price: | Negotiated |
| Packaging Details: | Plastic cases |
| Delivery Time: | 5-8 work days |
| Supply Ability: | 200 Pieces/30 days |
| Material: | GB-Q355B | Application: | Rotary Drilling Rig |
|---|---|---|---|
| Process: | Forging And Welding | Product Name: | Open-type Bucket |
| Color: | Black Or As Required | Certification: | ISO |
| High Light: | ISO Open Type Drilling Bucket,900mm Open Type Drilling Bucket,1000mm Open Type Drilling Bucket |
||

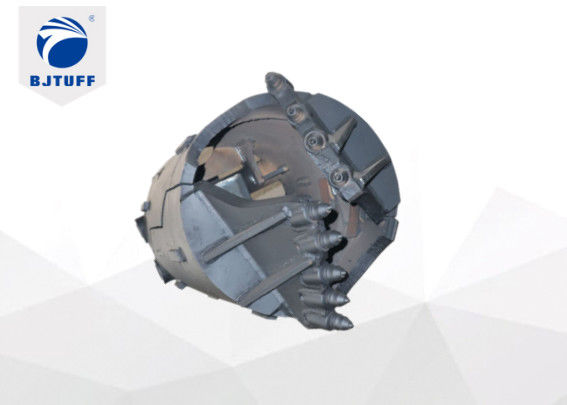

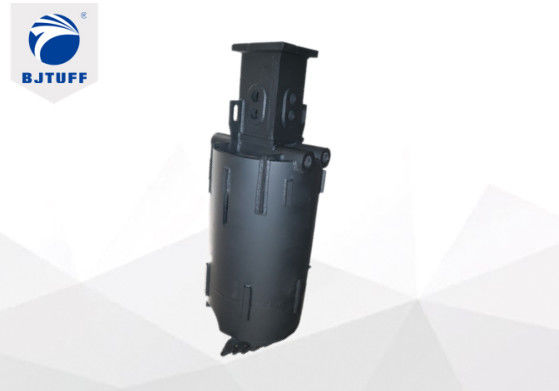

Engineering Construction Open Type Bucket piling Rig Rock Bucket For Deep Foundation
Feature
1. Large inlet of soil ,open shell design, easy to dump spoil so increases the drilling efficiency；
2. Adopt the high-carbon steel and special drilling bits angle to keep the drilling strength and efficiency;
3. Guide strips arranged on the surface of bucket can avoid drilling tool sucked by the pressure；
4. Applicable layers: Drilling in clay, silt and loose to medium dense sand, gravel and medium hard rocks, etc;
Customizable Items
1. Cutting DIA. Custom : design various cutting diameter based on demand, like φ850,φ1150 etc.
2. Kelly Box Custom: custom Kelly box size based on the Kelly bar, like 130*130, 150*150,200*200 etc;
3. Flat Teeth Custom: customize type of flat teeth;
| Cutting Dia. | Shell HIT. | Shell THK. | Stiffening Ring THK. | Teeth No. | Weight | |
| Bucket with soil teeth | Φ500 | 1000 | 20 | 30 | 4 | 550 |
| Φ600 | 1200 | 25 | 30 | 4 | 804 | |
| Φ700 | 1200 | 30 | 40 | 6 | 1059 | |
| Φ800 | 1200 | 30 | 40 | 7 | 1256 | |
| Φ900 | 1200 | 30 | 40 | 7 | 1450 | |
| Φ1000 | 1200 | 30 | 40 | 7 | 1887 | |
| Φ1200 | 1200 | 30 | 40 | 9 | 2050 | |
| Bucket with bullet teeth | Φ500 | 1000 | 20 | 30 | 6 | 558 |
| Φ600 | 1200 | 25 | 30 | 7 | 803 | |
| Φ700 | 1200 | 30 | 40 | 8 | 1071 | |
| Φ800 | 1200 | 30 | 40 | 9 | 1281 | |
| Φ900 | 1200 | 30 | 40 | 10 | 1548 | |
| Φ1000 | 1200 | 30 | 40 | 12 | 1877 | |
| Φ1200 | 1200 | 30 | 40 | 13 | 2175 | |
| Remark : All measurements are in milimeters, weight in kilograms. | ||||||
Product advantage:
1. Better toughness, not easy to be broke.
2. Simpler operation, can be easily handled.
3. Accurate positioning, strong wear resistance, easy to replace.
4. Higher abrasion performance.
Our Products
In the foundation engineering field of pilling, and accessories for rotary drilling rig , as well as soil investigation, we currently supply: drilling buckets, auger, core barrel, open-type bucket, belling bucket, cleaning bucket, soil teeth, bullet teeth, roller bits, double/single wall casing, casing driver, casing shoes, casing joint, Kelly bar, accessories.
