| Place of Origin: | CHINA |
|---|---|
| Brand Name: | BJTUFF |
| Certification: | ISO |
| Model Number: | 500-1200mm |
| Minimum Order Quantity: | 1 Piece |
| Price: | Negotiated |
| Packaging Details: | Plastic cases |
| Delivery Time: | 5-8 work days |
| Supply Ability: | 200 Pieces/30 days |
| Material: | GB-Q355B | Application: | Rotary Drilling Rig |
|---|---|---|---|
| Process: | Forging And Welding | Product Name: | Open-type Bucket |
| Color: | Black Or As Required | Certification: | ISO |
| High Light: | 1200mm Open Type Drilling Bucket,Soil Open Type Drilling Bucket,Q355B Drilling Bucket Piling Rig |
||

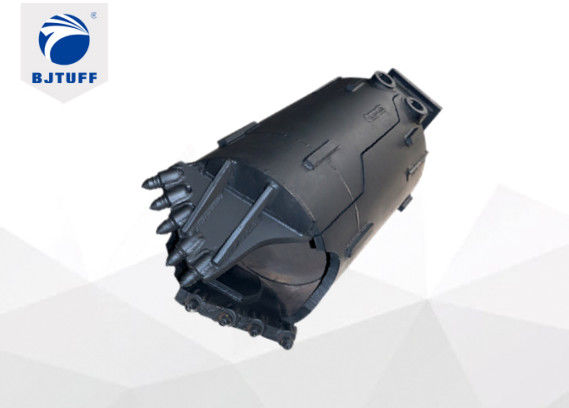

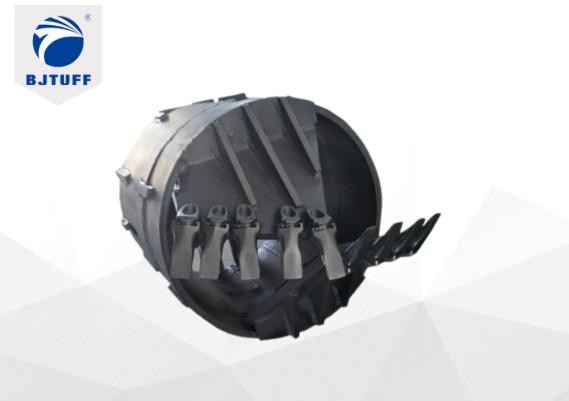

Bullet Soil Tooth Open Type Drilling Bucket Piling Rig For Deep Foundation
Feature
The sand bucket can be matched with different drill teeth according to the hardness of the
ground layer.With clay teeth, it forms a soil bucket, mainly used in softer soil layer, such as mud layer, gravel layer, silt
layer, strong weathered rock layer, etc.
Combined with the bullet teeth, it will be a Rock Drilling Bucket, also called a Bullet
Drilling Bucket. It can be applied to harder formations such as pebble layers, strong weathering and moderately weathered rock layer.
Customizable Items
1. Cutting DIA. Custom : design various cutting diameter based on demand, like φ850,φ1150 etc.
2. Kelly Box Custom: custom Kelly box size based on the Kelly bar, like 130*130, 150*150,200*200 etc;
3. Flat Teeth Custom: customize type of flat teeth;
| Cutting Dia. | Shell HIT. | Shell THK. | Stiffening Ring THK. | Teeth No. | Weight | |
| Bucket with soil teeth | Φ500 | 1000 | 20 | 30 | 4 | 550 |
| Φ600 | 1200 | 25 | 30 | 4 | 804 | |
| Φ700 | 1200 | 30 | 40 | 6 | 1059 | |
| Φ800 | 1200 | 30 | 40 | 7 | 1256 | |
| Φ900 | 1200 | 30 | 40 | 7 | 1450 | |
| Φ1000 | 1200 | 30 | 40 | 7 | 1887 | |
| Φ1200 | 1200 | 30 | 40 | 9 | 2050 | |
| Bucket with bullet teeth | Φ500 | 1000 | 20 | 30 | 6 | 558 |
| Φ600 | 1200 | 25 | 30 | 7 | 803 | |
| Φ700 | 1200 | 30 | 40 | 8 | 1071 | |
| Φ800 | 1200 | 30 | 40 | 9 | 1281 | |
| Φ900 | 1200 | 30 | 40 | 10 | 1548 | |
| Φ1000 | 1200 | 30 | 40 | 12 | 1877 | |
| Φ1200 | 1200 | 30 | 40 | 13 | 2175 | |
| Remark : All measurements are in millimeters, weight in kilograms. | ||||||
Product advantage:
1. With the help of experienced team of engineers and well-supervised production team,BJTUFF has a greater ability to produce top-quality foundation drilling tools.
2. High-quality welding and finishing throughout the drilling tool is very important to increase the life of the Drilling tool. BJTUFF drilling tools are manufactured under very experienced supervision,and quality inspection and control before delivery ensures that the right product is sent out to the customers.
3. Wear resisting strips on the drilling tool help to minimize the wearing out of body of the drilling tools.
FAQ
Q: What's the nature of your company?
We are Factory. We are experienced drilling product factory in China, all products posted are produced by ourselves, so we can offer you competitive price while ensuring product quality.
Q: How do you ship your products?
Our goods can be transported by air and sea or per your request.
Q: Does this product support customization?
Yes, due to the fact that we have our own factories, We can customize products per your request.
Q: How long is your delivery time?
Generally it is 5-10 days if the goods are in stock. Or it is 15-20 days if the goods are not in stock, it is according to quantity.
