Focus On Heart, Lasting On Action
| Place of Origin: | CHINA |
|---|---|
| Brand Name: | BJTUFF |
| Certification: | ISO |
| Model Number: | 600-1600mm |
| Minimum Order Quantity: | 1 Piece |
| Price: | Negotiated |
| Packaging Details: | Plastic cases |
| Delivery Time: | 5-8 work days |
| Supply Ability: | 200 Pieces/30 days |
| Material: | GB-Q355B | Application: | Rotary Drilling Rig |
|---|---|---|---|
| Process: | Forging And Welding | Product Name: | Double Wall Casing |
| Color: | Black Or As Required | Certification: | ISO |
| High Light: | Casagrande Double Wall Casing Rig,Soilmec Double Wall Casing Rig,600mm Soilmec Double Wall Casing |
||

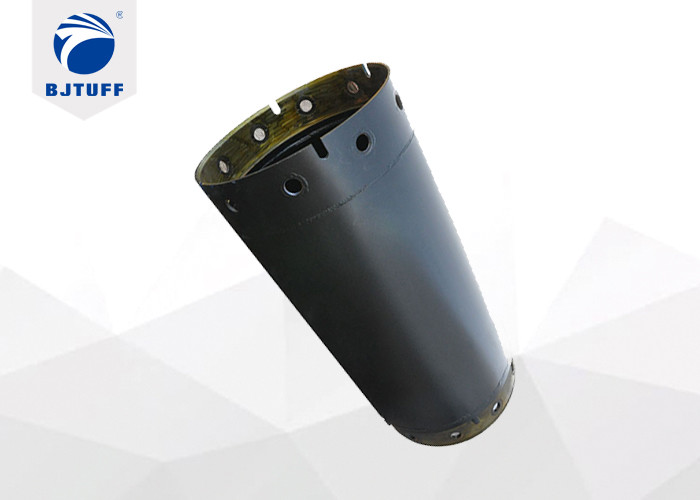

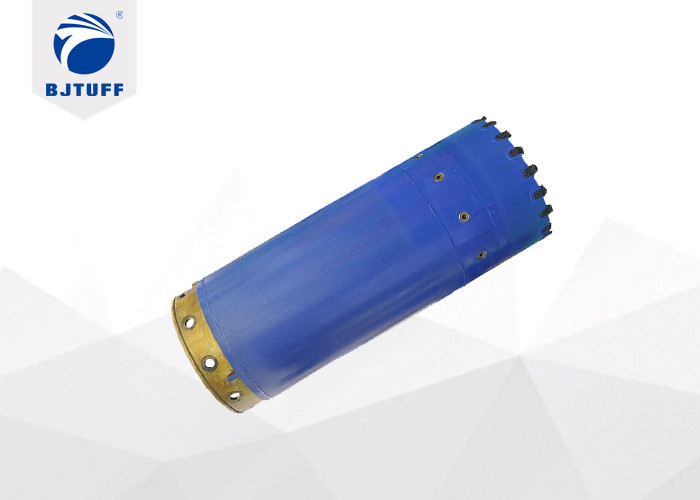

Rotary Drilling Spare Parts Double Wall Casing Rig Spare Part For Foundation Engineering
Main Application
The casing are designed to perform cased holes. Especially for the construction of bored piles by rotary drilling rigs the casing joints due to the machinery accuracy guarantee a fast placement and bolting of the casing as well as best force transmission.
Beijing Tuff Equipment and technology CO.,LTD is a modem science and technology that collections of rotary drilling rig tools and accessories research and development, production and trade.
Feature
1. The technical parameters and processes of the products are in line with the Bauer standard.
2. Deformation and accuracy is strictly controlled through heat treatment, each casing is interchangeable.
3. Besides Bauer, casing is also suitable for Soilmec, Casagrande and other brand.
| Shell THK. | Casing THK. | Weight | |
| Φ680/600 (2meter) | 12+8 | 40 | 736 |
| Φ680/600 (4meter) | 12+8 | 40 | 1384 |
| Φ680/600 (6meter) | 12+8 | 40 | 2032 |
| Φ750/700 (2meter) | 12+8 | 40 | 824 |
| Φ750/700 (4meter) | 12+8 | 40 | 1542 |
| Φ750/700 (6meter) | 12+8 | 40 | 2260 |
| Φ880/800 (2meter) | 12+8 | 40 | 962 |
| Φ880/800 (4meter) | 12+8 | 40 | 1811 |
| Φ880/800 (6meter) | 12+8 | 40 | 2659 |
| Φ1000/920 (2meter) | 16+8 | 40 | 1281 |
| Φ1000/920 (4meter) | 16+8 | 40 | 2442 |
| Φ1000/920 (6meter) | 16+8 | 40 | 3603 |
| Φ1080/1000 (2meter) | 16+8 | 40 | 1370 |
| Φ1080/1000 (4meter) | 16+8 | 40 | 2627 |
| Φ1080/1000 (6meter) | 16+8 | 40 | 3885 |
| Φ1180/1100 (2meter) | 16+10 | 40 | 1591 |
| Φ1180/1100 (4meter) | 16+10 | 40 | 3078 |
| Φ1180/1100 (6meter) | 16+10 | 40 | 4566 |
| Φ1280/1200 (2meter) | 16+10 | 40 | 1728 |
| Φ1280/1200 (4meter) | 16+10 | 40 | 3346 |
| Φ1280/1200 (2meter) | 16+10 | 40 | 4963 |
| Φ1500/1400 (2meter) | 20+12 | 50 | 2742 |
| Φ1500/1400 (4meter) | 20+12 | 50 | 5064 |
| Φ1500/1400 (6meter) | 20+12 | 50 | 7387 |
| Φ1700/1600 (2meter) | 20+12 | 50 | 3126 |
| Φ1700/1600 (4meter) | 20+12 | 50 | 5767 |
| Φ1700/1600 (6meter) | 20+12 | 50 | 8409 |
| Remark : All measurements are in millimeters, weight in kilograms. | |||
FAQ
Q: What's the nature of your company?
We are Manufacturer. We have factories all over China, all products posted are produced by ourselves, so we can offer you competitive price while ensuring product quality.
Q: What's your main product?
Our main products include kelly bars, drilling buckets, augers, core barrels, drilling teeth and holders, cutting bits. These products are acknowledged for their durability, robust construction, corrosion resistance and easy operations.
Q: How do you control the quality of your product?
First, we use good raw material;
Second, we have strict quality controlling system;
Third, we promise good quality and after-sales service.
Q: Does this product support customization?
Yes, due to the fact that we have our own factories, We can customize products per your request.
Q: How long is your delivery time?
Generally it is 5-10 days if the goods are in stock. Or it is 15-20 days if the goods are not in stock, it is according to quantity.
