| Place of Origin: | CHINA |
|---|---|
| Brand Name: | BJTUFF |
| Certification: | ISO |
| Model Number: | 600mm-3400mm |
| Minimum Order Quantity: | 1 Piece |
| Price: | Negotiated |
| Packaging Details: | Plastic cases |
| Delivery Time: | 5-8 work days |
| Supply Ability: | 200 Pieces/30 days |
| Material: | GB-Q355B | Application: | Rotary Drilling Rig |
|---|---|---|---|
| Process: | Forging And Welding | Product Name: | Drilling Bucket With Soil Teeth |
| Color: | Black Or As Required | Certification: | ISO |
| High Light: | Dia 700mm Soil Drilling Bucket,ISO soil drilling bucket Four Teeth,70cm Rotary Rig soil bucket |
||

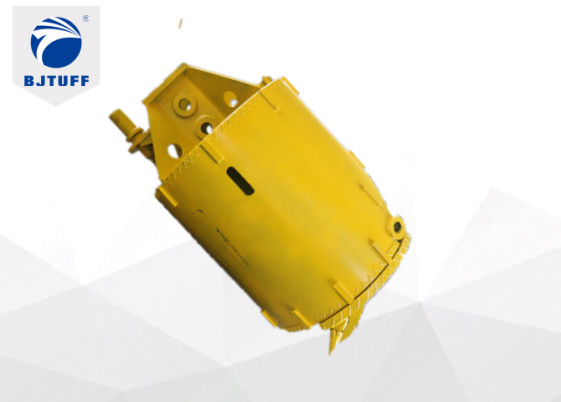

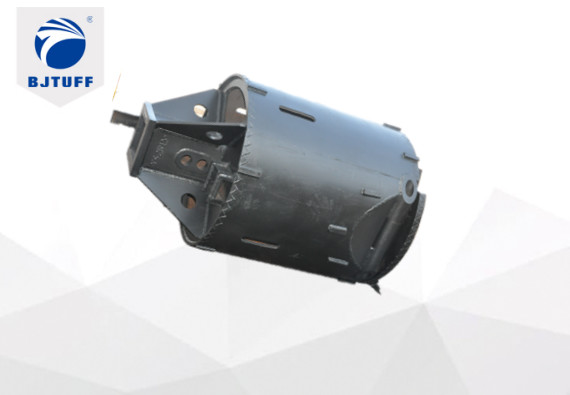

Rotary Drilling Rig Drilling Bucket With Soil Drilling Teeth For Construction
Feature
1. Option half-automatic or manul mechanic bottom open system；
2. Ventilation plate can avoid bucket stuck by vacuum space under the bucket bottom;
3. Double unlocking system;
Customizable Items
1. Cutting DIA. Custom : design various cutting diameter based on demand, like φ850,φ1150 etc.
2. Shell HIT. Custom : design as demand, prolong or shorten, increase of efficiency by drilling more.
3. Key Component Reinforce Custom : strengthen the key component to extend life cycle;
4. Kelly Box Custom: custom Kelly box size based on the Kelly bar, like 130*130, 150*150,200*200 etc;
5. Cutter Custom: customize the size of the bottom inlet;
6. Bottom Custom:usually use double bottoms, but they can also be customized to a single bottom according to customer needs.
Application
Clay, silt, loose to medium dense sand and gravel, up to coarse gravel.
Double cut soil bucket is recommended in cased/uncased and for bigger diameter piles.
| Cutting Dia. | Shell HIT. | Shell THK. | Fixed Bottom THK. | Rotate Bottom THK. | Teeth No. | Weight |
| Φ600 | 1200 | 16 | 40 | 40 | 4 | 665 |
| Φ700 | 1200 | 16 | 40 | 40 | 4 | 773 |
| Φ800 | 1200 | 16 | 40 | 50 | 4 | 907 |
| Φ900 | 1200 | 16 | 40 | 50 | 5 | 1055 |
| φ1000 | 1200 | 16 | 40 | 50 | 5 | 1265 |
| φ1100 | 1200 | 16 | 40 | 50 | 7 | 1325 |
| φ1200 | 1200 | 16 | 40 | 50 | 7 | 1570 |
| φ1300 | 1200 | 16 | 40 | 50 | 8 | 1710 |
| φ1400 | 1200 | 16 | 40 | 50 | 9 | 1954 |
| φ1500 | 1200 | 16 | 40 | 50 | 9 | 2155 |
| φ1800 | 1000 | 20 | 50 | 50 | 10 | 3272 |
| φ2000 | 800 | 20 | 50 | 50 | 14 | 3845 |
| Φ2200 | 800 | 20 | 50 | 50 | 16 | 4300 |
| Φ2500 | 800 | 25 | 50 | 50 | 19 | 5780 |
| Φ2800 | 800 | 25 | 50 | 50 | 22 | 6540 |
| Φ3000 | 800 | 25 | 50 | 50 | 24 | 8060 |
| Φ3400 | 800 | 25 | 50 | 50 | 30 | 10060 |
| Remark : All measurements are in millimeters, weight in kilograms. | ||||||
FAQ
Q: What's the nature of your company?
We are Factory. We are experienced drilling product factory in China, all products posted are produced by ourselves, so we can offer you competitive price while ensuring product quality.
Q: What does your company make?
The main products of our company include drilling bucket, core barrel, auger, casing series, kelly bar, kelly bar accessories, soil teeth, roller bits, pilot bits, bullet teeth.
Q: How do you ship your products?
Our goods can be transported by air and sea or per your request.
Q: Does this product support customization?
Yes, due to the fact that we have our own factories, We can customize products per your request.
Q: How long is your delivery time?
Generally it is 5-10 days if the goods are in stock. Or it is 15-20 days if the goods are not in stock, it is according to quantity.
