Focus On Heart, Lasting On Action
| Place of Origin: | CHINA |
|---|---|
| Brand Name: | BJTUFF |
| Certification: | ISO |
| Model Number: | 600mm-3400mm |
| Minimum Order Quantity: | 1 Piece |
| Price: | Negotiated |
| Packaging Details: | Plastic cases |
| Delivery Time: | 5-8 work days |
| Supply Ability: | 200 Pieces/30 days |
| Material: | GB-Q355B | Application: | Rotary Drilling Rig |
|---|---|---|---|
| Process: | Forging And Welding | Product Name: | Drilling Bucket With Soil Teeth |
| Color: | Black Or As Required | Certification: | ISO |
| High Light: | 1300mm Double Cut Pile Bucket,8 Clay Drilling Tooth Pile Bucket,Q355b cleaning bucket bored pile |
||

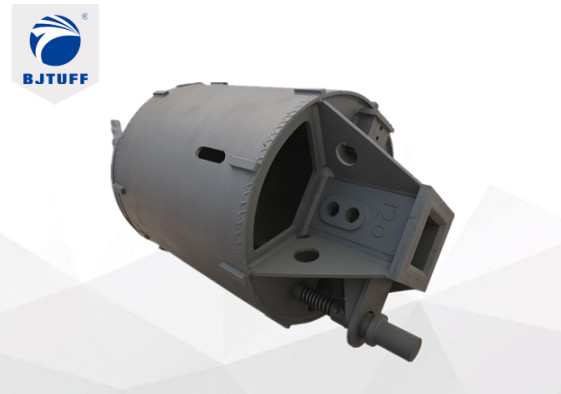

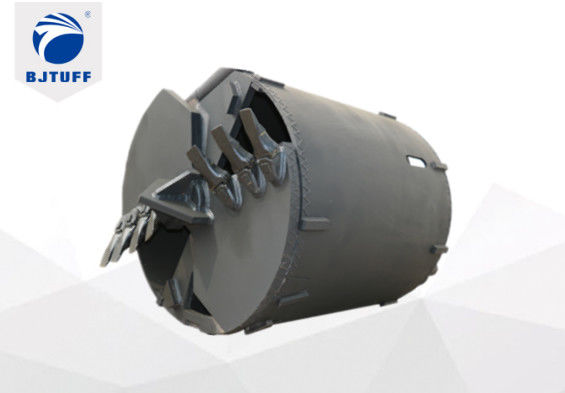

Double Cut Drilling Bucket With Clay Drilling Tooth For Pile Foundation
Feature
1. Longer bucket shell is helpful to avoid pile inclined；
2. Option half-automatic or manul mechanic bottom open system.
3. A built-in ventilation pipe shaft prevents vacuum; add collar plate according to working conditions;
4. Applicable layers: soft to stiff silt and clay loose to medium dense sand and gravel;
Customizable Items
1. Cutting DIA. Custom : design various cutting diameter based on demand, like φ850,φ1150 etc.
2. Shell HIT. Custom : design as demand, prolong or shorten, increase of efficiency by drilling more.
3. Key Component Reinforce Custom : strengthen the key component to extend life cycle;
4. Kelly Box Custom: custom Kelly box size based on the Kelly bar, like 130*130, 150*150,200*200 etc;
5. Cutter Custom: customize the size of the bottom inlet;
6. Bottom Custom:usually use double bottoms, but they can also be customized to a single bottom according to customer needs.
| Cutting Dia. | Shell HIT. | Shell THK. | Fixed Bottom THK. | Rotate Bottom THK. | Teeth No. | Weight |
| Φ600 | 1200 | 16 | 40 | 40 | 4 | 665 |
| Φ700 | 1200 | 16 | 40 | 40 | 4 | 773 |
| Φ800 | 1200 | 16 | 40 | 50 | 4 | 907 |
| Φ900 | 1200 | 16 | 40 | 50 | 5 | 1055 |
| φ1000 | 1200 | 16 | 40 | 50 | 5 | 1265 |
| φ1100 | 1200 | 16 | 40 | 50 | 7 | 1325 |
| φ1200 | 1200 | 16 | 40 | 50 | 7 | 1570 |
| φ1300 | 1200 | 16 | 40 | 50 | 8 | 1710 |
| φ1400 | 1200 | 16 | 40 | 50 | 9 | 1954 |
| φ1500 | 1200 | 16 | 40 | 50 | 9 | 2155 |
| φ1800 | 1000 | 20 | 50 | 50 | 10 | 3272 |
| φ2000 | 800 | 20 | 50 | 50 | 14 | 3845 |
| Φ2200 | 800 | 20 | 50 | 50 | 16 | 4300 |
| Φ2500 | 800 | 25 | 50 | 50 | 19 | 5780 |
| Φ2800 | 800 | 25 | 50 | 50 | 22 | 6540 |
| Φ3000 | 800 | 25 | 50 | 50 | 24 | 8060 |
| Φ3400 | 800 | 25 | 50 | 50 | 30 | 10060 |
| Remark : All measurements are in millimeters, weight in kilograms. | ||||||
Product advantage
1. High quality welding and finishing throughout the drilling tool is very important to increase the life of the Drilling tool. BJTUFF drilling tools are manufactured under very experienced supervision,and quality inspection and control before delivery ensures that the right product is sent out to the customers.
2. The angle of attack of drilling bits are variable according to the type of rock to generate maximum efficiency during drilling.
3. BJTUFF provides an on-time after sales service when/if required by the customers for any issues.
FAQ
Q: What's the nature of your company?
We are Factory. We are experienced drilling product factory in China, all products posted are produced by ourselves, so we can offer you competitive price while ensuring product quality.
Q: What does your company make?
The main products of our company include drilling bucket, core barrel, auger, casing series, kelly bar, kelly bar accessories, soil teeth, roller bits, pilot bits, bullet teeth.
Q: How long is your delivery time?
Generally it is 5-10 days if the goods are in stock. Or it is 15-20 days if the goods are not in stock, it is according to quantity.
