| Place of Origin: | China |
|---|---|
| Brand Name: | BJTUFF |
| Certification: | ISO9001 |
| Model Number: | 300-3000mm or as required |
| Minimum Order Quantity: | 1 Piece |
| Price: | Prices are determined by quantity and model of product |
| Packaging Details: | standard export packs -Wood case outside, plastic cases inside. |
| Delivery Time: | 3-5 days after payment |
| Payment Terms: | L/C, D/A, D/P, T/T |
| Supply Ability: | 300 Unit/Units per Month |
| Material: | 16Mn Or GB-Q355B | Teeth Series: | Bullet Teeth |
|---|---|---|---|
| Color: | Black Or As Required | Kelly Box Size: | 200*200mm As Usual Or As Your Required |
| Application: | Rotary Drilling Rig | Product Name: | Conical Rock Auger |
| Warranty: | 6 Months | Feature: | HEAVY DUTY |
| High Light: | customizable drilling auger,drilling auger double cut single spiral,bullet teeth drilling auger |
||

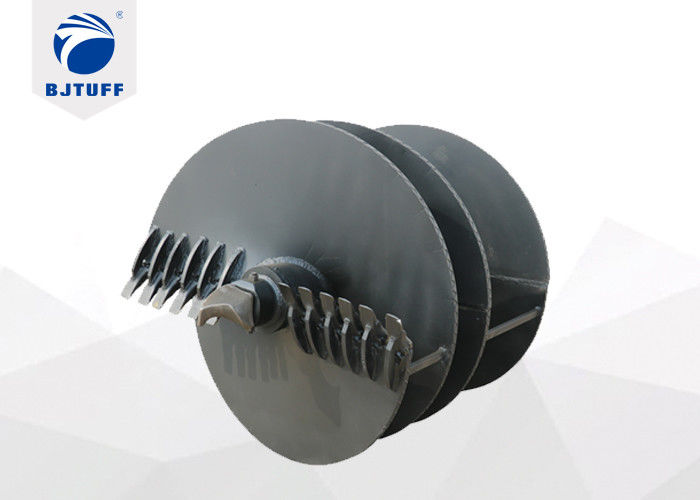

Customizable Items Double Cut Single Spiral Straight Soil Auger
Auger types and appliaction:
1. Single cut concial rock auger and double cut concial rock auger :
Main Application:
Medium to strong rock (15-60Mpa);
Features:
Sturdy and wearable forging stwwk polit for accurate positioning;
Hard facipsstrips on flights for wear protection.
2. Single cut straight rock auger and double cut straight rock auger:
Main Application:
Very dense sand and gravel,weak rock (<5Mpa)
Features:
Sturdy and wearable forging stwwk polit for accurate positioning;
Hard facipsstrips on flights for wear protection.
Customizable Items:
1. Spiral HIT. Custom : design as demand, prolong or shorten, increase of efficiency by drilling more.
2. Spiral Pitch Custom : adjust the spiral pitch according to different working condition;
3. Key Component Reinforce Custom : strengthen the key component to extend life cycle;
4. Teeth Custom : Equipped different teeth, like bullet teeth, flat teeth according to different working condition;
Feature:
1. Design as straight type, better for carry soil ;
2. Double cutter bearing uniform force, can avoid inclined hole ;
3. Double spiral easy to carry soil, but meet cohesive soil, single spiral is easy to dump spoil;
| Cutting Dia. | Spiral HIT. | Spiral Pitch | Shell THK | Teeth NO. | Weight |
| φ600 | 1000 | 400 | 20+30 | 6 | 535 |
| φ800 | 1500 | 600 | 20+30 | 6 | 750 |
| φ900 | 1500 | 600 | 20+30 | 8 | 820 |
| φ1000 | 1500 | 600 | 20+30 | 8 | 950 |
| φ1200 | 1500 | 600 | 30+30 | 11 | 1050 |
| φ1500 | 1500 | 600 | 30+30 | 12 | 1450 |
| φ1600 | 1500 | 600 | 30+30 | 14 | 1650 |
| φ1800 | 1500 | 600 | 30+30 | 18 | 1950 |
| φ2000 | 1500 | 600 | 40+40 | 18 | 2300 |
| φ2200 | 1500 | 600 | 40+40 | 20 | 2500 |
| φ2500 | 1500 | 600 | 40+40 | 22 | 3100 |
| φ2800 | 1500 | 600 | 40+40 | 22 | 3400 |
| φ3000 | 1500 | 600 | 40+40 | 25 | 4550 |
| Remark:all measurements in millimeters (mm); weight in kilograms(kg); | |||||
Package:
Packaging details for BJTUFF open type bucket
1. 100% inspection before shipment.
2. Wrapped with plastic film.
3. Fixed with iron support.
4. Packed with plastic cases and wooden cases for drilling bits, clay teeth or other small accessories.
Company advantage:
1- We purchase top quality raw materials from leading raw-steel factory.
2- Our drilling tools can be customized depending on kinds of rigs and site conditions.
3- We require high quality of welding, therefore we employ at least 8 years experienced welders.
4- Understand what customers need and provide what customers want, We provide one-stop solution for the world’s foundation construction users.
FAQ
Q: What is the advantages of our products?
We are Factory. We use super quality raw material, which makes the drilling tools more durable and our drilling tools with competitive
price. and also we have the professional technical terms ,and can provide the one -stop foudation equipment solution .No matter you are dealers or end user, you will get the biggest profit.
Q: What's the nature of your company?
We are Manufacturer. We have factories all over China and several agents overseas, we can offer you competitive price while ensuring product quality.and service timeliness.
Q: Does this product support customization?
Yes, due to the fact that we have our own factories, We can customize products per your request.
Q: How long is your delivery time?
Generally it is 5-10 days if the goods are in stock. Or it is 15-20 days if the goods are not in stock, it is according to quantity.
