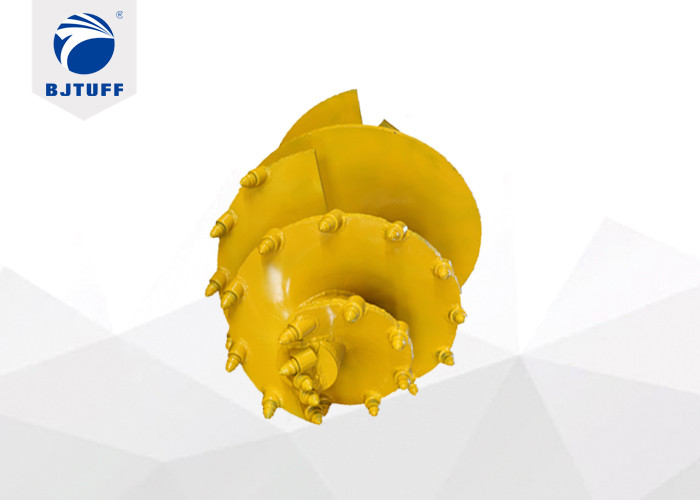

Boring Bit 1200mm Drilling Auger Bullet Teeth Rock Type Single Spiral

Basic Information

Place of Origin:	China
Brand Name:	BJTUFF
Certification:	ISO9001
Model Number:	300-3000mm or as required

Minimum Order Quantity:	1 Piece
Price:	Prices are determined by quantity and model of product
Packaging Details:	Standard export packs -Wood case outside, plastic cases inside.
Delivery Time:	3-5 days after payment
Payment Terms:	L/C, D/A, D/P, T/T
Supply Ability:	300 Unit/Units per Month

Get Best Price Contact Now

Material:	GB-Q345B	Teeth Series:	Bullet Teeth
Product Name:	Rock Conical Auger	Suitable:	Boring Machine
Warranty:	3 Months	Condition:	New
High Light:	1200mm drilling auger , boring bit drilling auger , bullet teeth auger for drilling holes

Boring Drill Bit 1200mm Bullet Teeth Rock Type Single Spiral Drilling Auger

Feature:

1. Design as straight type, better for carry soil ;

2. Double cutter bearing uniform force, can avoid inclined hole ;

3. Double spiral easy to carry soil, but meet cohesive soil, single spiral is easy to dump spoil;

4.Hard facipsstrips on flights for wear protection.

Auger types and appliaction:

1. Single start concial rock auger / double start single spiral concial rock auger / double start double spiral conical rock auger :

Main Application:

are suitable for Medium to strong rock (15-60Mpa);

2. Single start straight rock auger / double start single spiral straight rock auger / double spiral straight rock auger:

Main Application:

Very dense sand and gravel,weak rock (<5Mpa)

3. Single start straight soil auger / double start single spiral straight soil auger/ double spiral straight soil auger:

Main Application:

Soft to stiff silt and clay ,loose to medium dense sand and gravel.

Model List

Cutting Dia.	Spiral HIT.	Spiral Pitch	Shell THK	Center Tube OD.	Weight
φ600	1100	600+400	20+30	219	535
φ800	1500	600+400	20+30	245	750
φ900	1500	600+500	20+30	245	820
φ1000	1500	600	20+30	245	950
φ1200	1500	600	30+30	245	1050
φ1500	1500	600	30+30	273	1450
φ2000	1500	600	35+30	273	2300
Remark:all measurements in millimeters (mm); weight in kilograms(kg);
