Focus On Heart, Lasting On Action
| Place of Origin: | China |
|---|---|
| Brand Name: | BJTUFF |
| Certification: | ISO9001 |
| Model Number: | 300-3000mm or as required |
| Minimum Order Quantity: | 1 Piece |
| Price: | Prices are determined by quantity and model of product |
| Packaging Details: | standard export packs -Wood case outside, plastic cases inside. |
| Delivery Time: | 3-5 days after payment |
| Payment Terms: | L/C, D/A, D/P, T/T |
| Supply Ability: | 300 Unit/Units per Month |
| Material: | GB-Q345B | Color: | As Your Required |
|---|---|---|---|
| Kelly Box Size: | 200*200 Mm As Usual Or As Your Required | Warranty: | 3 Months |
| Type: | Rotary Drilling | After-sales Service Provided: | Online Support |
| High Light: | piling tools auger for soil drilling,double cut auger for soil drilling,customized auger for drilling holes |
||

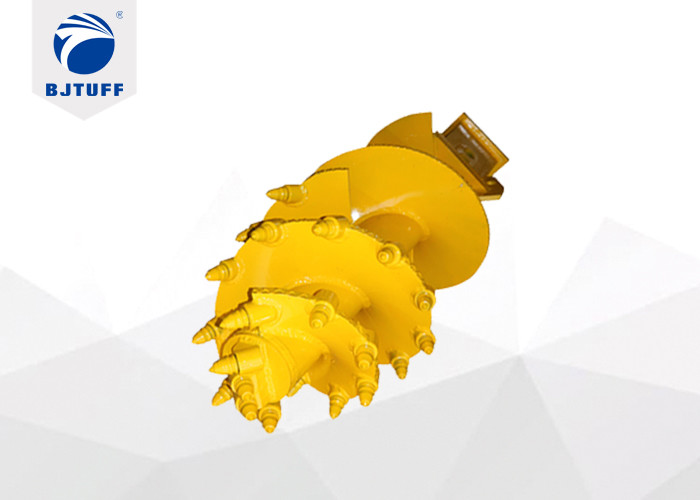

Customized Piling Tools Double Cut Hardpan Rock Conical Drilling Auger
Feature:
1. Design as straight type, better for carry soil ;
2. Double cutter bearing uniform force, can avoid inclined hole ;
3. Double spiral easy to carry soil, but meet cohesive soil, single spiral is easy to dump spoil;
Auger types and appliaction:
1. Single cut single spiral concial rock auger / double cut single spiral concial rock auger/double cut double spiral conical rock auger :
suitable for Medium to strong rock (15-60Mpa);
2. Single cut straight rock auger / double cut single spiral straight rock auger/double cut double spiral straight rock auger:
Very dense sand and gravel,weak rock (<5Mpa)
3. Single cut straight soil auger / double cut single spiral straight soil auger/double cut double spiral straight soil auger:
Soft to stiff silt and clay ,loose to medium dense sand and gravel.
| Cutting Dia. | Spiral HIT. | Spiral Pitch | Shell THK | Spiral OD. | Center Tube OD. |
| φ600 | 1100 | 600+400 | 20+30 | 550 | 219 |
| φ800 | 1500 | 600+400 | 20+30 | 750 | 245 |
| φ900 | 1500 | 600+500 | 20+30 | 850 | 245 |
| φ1000 | 1500 | 600 | 20+30 | 950 | 245 |
| φ1200 | 1500 | 600 | 30+30 | 1150 | 245 |
| φ1500 | 1500 | 600 | 30+30 | 1450 | 273 |
| φ1600 | 1500 | 600 | 30+30 | 1550 | 273 |
| φ1800 | 1500 | 600 | 35+30 | 1750 | 273 |
| φ2000 | 1500 | 600 | 35+30 | 1950 | 273 |
| φ2500 | 1600 | 800 | 35+30 | 2450 | 377 |
| φ3000 | 1350 | 900 | 35+30 | 2950 | 377 |
| φ3500 | 1350 | 900 | 35+30 | 3450 | 377 |
| Remark:all measurements in millimeters (mm); weight in kilograms(kg); | |||||
Company advantage:
1-We purchase top quality raw materials from leading raw-steel factory.
2-Our drilling tools can be customized depending on kinds of rigs and site conditions.
3-We require high quality of welding, therefore we employ at least 8 years experienced welders.
4-Understand what customers need and provide what customers want, We provide one-stop solution for the world’s foundation construction users.
FAQ:
1. Are you factory or not?
Yes, we manufactured drilling products for 7 years in Hebei,China. Warmly welcome to visit our factory and office.
2.What is the quality of your drilling products?
We strictly control product quality on each step from material choosing to every workmanship. our kelly bars provide 1 year quality guarantee.
First,we use good raw steel .Our welding stick is flux-cored wire that applied to ship engineering.
Second, We strictly control product quality on each step from material choosing to every workmanship. our kelly bars provide 1 year quality guarantee.
Third, Customers could contact our sales managers on line/by email/by phone if there are any question during installation or construction, solutions will be given within 12 hours.
