Place of Origin: | China |
---|---|
Brand Name: | BJTUFF |
Certification: | ISO9001 |
Model Number: | 300-3000mm or as required |
Minimum Order Quantity: | 1 Piece |
Price: | Prices are determined by quantity and model of product |
Packaging Details: | standard export packs -Wood case outside, plastic cases inside. |
Delivery Time: | 3-5 days after payment |
Payment Terms: | L/C, D/A, D/P, T/T |
Supply Ability: | 300 Unit/Units per Month |
Material: | GB-Q355B | Product Name: | Drilling Auger |
---|---|---|---|
Condition: | New | Application: | Ground Hole Drilling |
Feature: | HEAVY DUTY | Suitable: | Rotary Rig Machine |
High Light: | foundation tools hole drilling auger,double start hole drilling auger,single spiral auger for drilling holes |

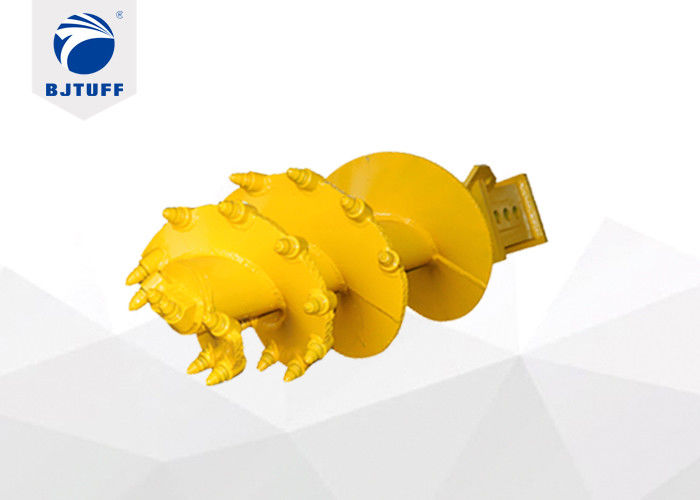

Foundation Tools Double Start Single Spiral Gravel Rock Drilling Auger
Auger types and appliaction:
1. Single cut concial rock auger / double cut concial rock auger;
Main Application:
are suitable for Medium to strong rock (15-60Mpa);
2. Single cut straight rock auger / double cut straight rock auger:
Main Application:
Very dense sand and gravel,weak rock (<5Mpa)
3. Single cut straight soil auger / double cut straight soil auger:
Main Application:
Soft to stiff silt and clay ,loose to medium dense sand and gravel.
Cutting Dia. | Spiral HIT. | Spiral Pitch | Shell THK | Center Tube OD. | Weight |
φ600 | 1100 | 600+400 | 20+30 | 219 | 535 |
φ800 | 1500 | 600+400 | 20+30 | 245 | 750 |
φ900 | 1500 | 600+500 | 20+30 | 245 | 820 |
φ1000 | 1500 | 600 | 20+30 | 245 | 950 |
φ1200 | 1500 | 600 | 30+30 | 245 | 1050 |
φ1500 | 1500 | 600 | 30+30 | 273 | 1450 |
φ1600 | 1500 | 600 | 30+30 | 273 | 1650 |
φ1800 | 1500 | 600 | 35+30 | 273 | 1950 |
φ2000 | 1500 | 600 | 35+30 | 273 | 2300 |
Remark:all measurements in millimeters (mm); weight in kilograms(kg); | |||||
Package:
Packaging details for BJTUFF open type bucket
1.100% inspection before shipment.
2. Wrapped with plastic film.
3. Fixed with iron support.
4. Packed with plastic cases and wooden cases for drilling bits, clay teeth or other small accessories.
5.As clients' requirements.
Company advantage:
1-We purchase top quality raw materials from leading raw-steel factory.
2-Our drilling tools can be customized depending on kinds of rigs and site conditions.
3-We require high quality of welding, therefore we employ at least 8 years experienced welders.
4-Understand what customers need and provide what customers want, We provide one-stop solution for the world’s foundation construction users.
