| Place of Origin: | China |
|---|---|
| Brand Name: | BJTUFF |
| Certification: | ISO9001 |
| Model Number: | 300-3000mm or as required |
| Minimum Order Quantity: | 1 Piece |
| Price: | Negotiated |
| Packaging Details: | Wood case outside, plastic cases inside. |
| Delivery Time: | 3-5 days after payment |
| Payment Terms: | L/C, D/A, D/P, T/T |
| Supply Ability: | 200 Unit/Units per Month |
| Name: | Core Barrel With Bullet Teeth | Drilling Diameter: | 300-4000mm |
|---|---|---|---|
| Material: | Q345B | Machine Type: | Drilling Tool |
| Use: | Rotary Drilling Rig | Application: | Foundation Drilling Construction |
| High Light: | rotary rig core barrel drilling,b47k core barrel drilling,rock core barrels for rotary rig |
||

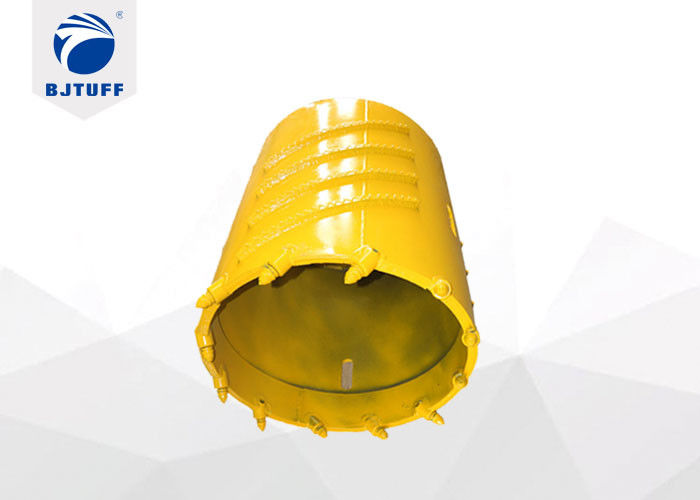

Rotary Drill Rig B47K Teeth Drilling Rock Core Barrel Bucket
Application:
1.When rotating, the drill core of the core rock drill has several different cutting angles that are matched with each other, and it is repeatedly broken and knocked at the position of the ring groove in the hole.
2.Fractured rocks and hard rocks that the hardness is less than 80 MPa, relatively hard bedrock formations, large boulder layers and hard permafrost layers.
Feature
1.Cutting ring with rock drilling bits and releases the internal stress of rock;
2.Rock drilling bits perform stage breaking and drilling;
3.Small barrel facilitates the coring operation, large barrel performs stage breaking;
4.Barrel adopts spiral wear resistant strips ,anti-attrition,prolong service life.
5.Heightening design,high construction efficiency ,efficiency reduce construction cost.
Model List:
| Cutting Dia. | Shell HIT. | Shell OD. | Shell THK. |
Stiffening Ring HIT. |
Teeth No. | Weight |
| φ600 | 1200 | 520 | 16 | 200 | 6 | 520 |
| φ800 | 1200 | 720 | 16 | 200 | 9 | 672 |
| φ900 | 1200 | 820 | 16 | 200 | 10 | 750 |
| φ1000 | 1200 | 920 | 16 | 200 | 11 | 847 |
| φ1200 | 1200 | 1120 | 16 | 200 | 13 | 1010 |
| φ1500 | 1200 | 1420 | 16 | 200 | 16 | 1370 |
| φ1800 | 1000 | 1720 | 20 | 200 | 19 | 1841 |
| φ2000 | 800 | 1920 | 20 | 200 | 21 | 1852 |
| φ2200 | 800 | 2120 | 20 | 200 | 23 | 2329 |
| φ2500 | 800 | 2420 | 20 | 200 | 27 | 2705 |
| φ2800 | 800 | 2720 | 20 | 200 | 30 | 3200 |
| φ3000 | 800 | 2920 | 20 | 200 | 32 | 3800 |
| Remark : All measurements are in millimeters, weight in kilograms. | ||||||
Product advantage:
1-We purchase top quality raw materials from leading raw-steel factory.
2-Our drilling tools can be customized depending on kinds of rigs and site conditions.
3-We require high quality of welding, therefore we employ at least 8 years experienced welders.
4-Advanced welding and design ensure the products longer working life, which helps the client to reduce construction budget.
FAQ:
Q1.What does your company produce?
The main products of our company include drilling tools,drilling teeth,casing series,kelly bar accessories and ect.
Q2.How do you control the quality of your products?
First,we use good steel GB-Q345B.Our welding stick is flux-cored wire that applied to ship engineering.
Second, We strictly control the process,so If the quality of the product itself has the problem of open welding, we will give compensation;
Third, we promise good quality and after-sales service.
Q3.Can you supply after-sales service?
Of course, Customers could contact our sales managers on line/by email/by phone if there are any question during installation or construction, solutions will be given within 12 hours.
