Focus On Heart, Lasting On Action
| Place of Origin: | China |
|---|---|
| Brand Name: | BJTUFF |
| Certification: | ISO9001 |
| Model Number: | 400-3000mm or as required |
| Minimum Order Quantity: | 1 Piece |
| Price: | Negotiated |
| Packaging Details: | Wood case outside, plastic cases inside. |
| Delivery Time: | 3-5 days after payment |
| Payment Terms: | L/C, D/A, D/P, T/T |
| Supply Ability: | 200 Unit/Units per Month |
| Name: | Core Barrel With Round Shank Chisel | Warranty: | 3 Months |
|---|---|---|---|
| Material: | Q345B,NM360/400 Or As Required | Type: | Drilling Bucket |
| Processing Type: | Welding | Machine Type: | Drilling Tool |
| High Light: | 400mm core barrel drilling,bored piling core barrel drilling,bored piling core barrels |
||

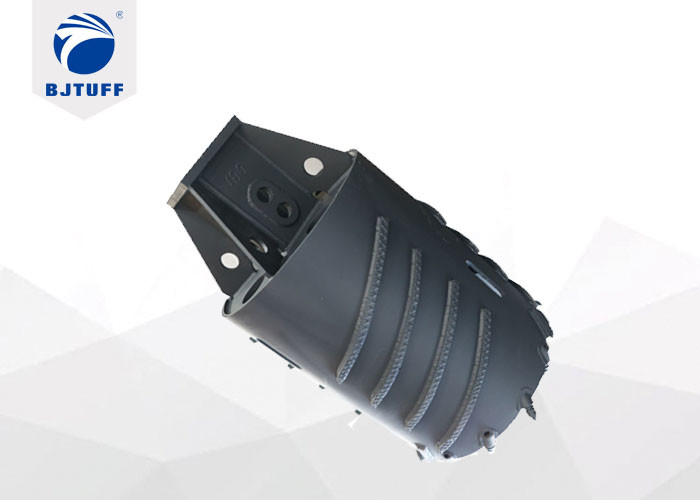

Bored Piling Spare Parts Rock Core Barrel Drilling Bucket
Application:
1.Fractured rocks and hard rocks that the hardness is less than 80 MPa, relatively hard bedrock formations, large boulder layers and hard permafrost layers.
2.Apply to obvious layered medium weathered sandstone (high probability of coring) hard rock cutting.
Feature
1.Cutting ring with rock drilling bits and releases the internal stress of rock;
2.Rock drilling bits perform stage breaking and drilling;
3.Barrel adopts spiral wear resistant strips ,anti-attrition,prolong service life.
4.Adopts wear resistant block between teeth holders due to protect teeth holder and stiffening ring from serious wearing .
Model List:
| Cutting Dia. | Shell HIT. | Shell OD. | Shell THK. |
Stiffening Ring THK. |
Teeth No. | Weight |
| φ600 | 1200 | 520 | 16 | 20 | 6 | 520 |
| φ800 | 1200 | 720 | 16 | 20 | 9 | 672 |
| φ900 | 1200 | 820 | 16 | 20 | 10 | 750 |
| φ1000 | 1200 | 920 | 16 | 20 | 11 | 847 |
| φ1200 | 1200 | 1120 | 16 | 20 | 13 | 1010 |
| φ1500 | 1200 | 1420 | 16 | 20 | 16 | 1370 |
| φ1600 | 1200 | 1520 | 16 | 20 | 17 | 1493 |
| φ1800 | 1000 | 1720 | 20 | 20 | 19 | 1841 |
| φ2000 | 800 | 1920 | 20 | 20 | 21 | 1852 |
| φ2200 | 800 | 2120 | 20 | 20 | 23 | 2329 |
| φ2500 | 800 | 2420 | 20 | 20 | 27 | 2705 |
| φ2800 | 800 | 2720 | 20 | 20 | 30 | 3200 |
| φ3000 | 800 | 2920 | 20 | 20 | 32 | 3800 |
| Remark : All measurements are in millimeters, weight in kilograms. | ||||||
Customizable Items:
1.Shell HIT. Custom : design as demand, prolong or shorten, increase of efficiency by drilling more.
2.Key Component Reinforce Custom : strengthen the key component to extend life cycle;
3.Teeth No. Custom : encrypt the drilling teeth based on demand etc;
Product advantage:
Understand what customers need and provide what customers want, We provide one-stop solution for the world’s foundation construction users. While providing customized quality products, our services will leave you with no worries. We boast a group of experienced foundation construction experts and consultants, who not only recommend the use of suitable products based on customer needs, but also give reasonable advice on the operation of construction equipment and construction methods.
FAQ:
Q1.What does your company produce?
The main products of our company include drilling tools,drilling teeth,casing series,kelly bar accessories and ect.
Q2.How do you control the quality of your products?
First,we use good steel GB-Q345B.Our welding stick is flux-cored wire that applied to ship engineering.
Second, We strictly control the process,so If the quality of the product itself has the problem of open welding, we will give compensation;
Third, we promise good quality and after-sales service.
